用来实现DDS的常用元器件
用于DDS的常用元器件
DDS单芯片
100MHz以下

50MHz、DDS
LQFP48
厂商:Analog Devices Inc

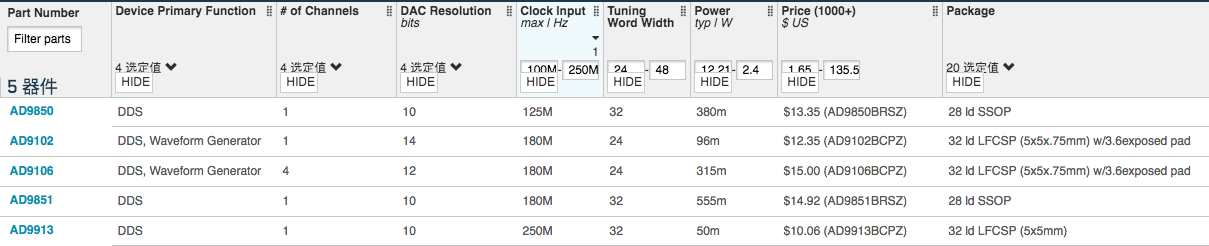

100MHz - 250MHz

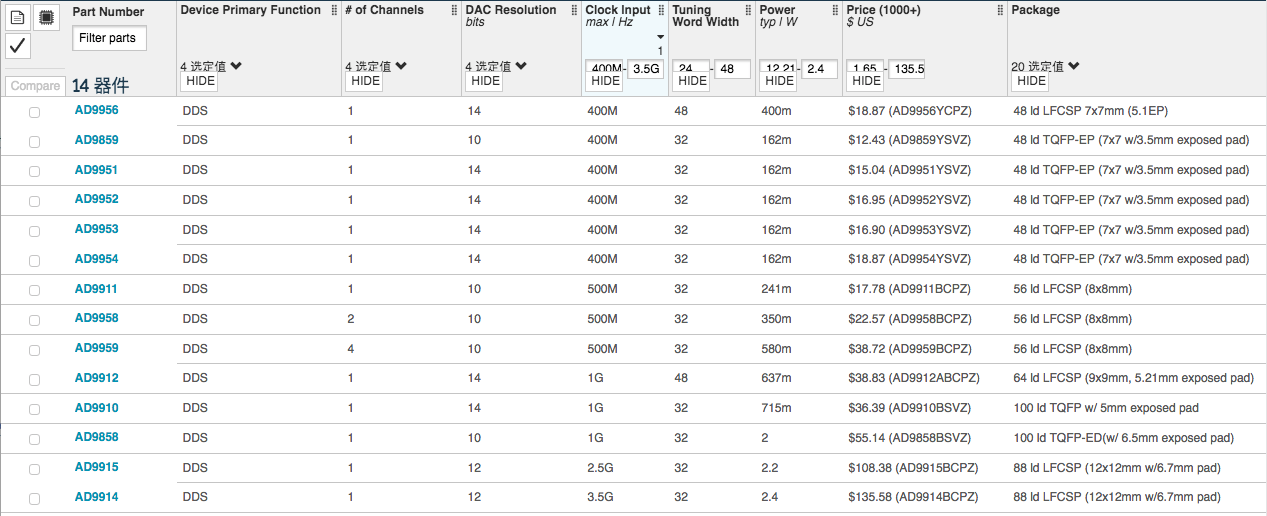

400MHz - 3.5GHz

DAC(+FPGA)
高速DAC(30Msps以上)
单通道
10位

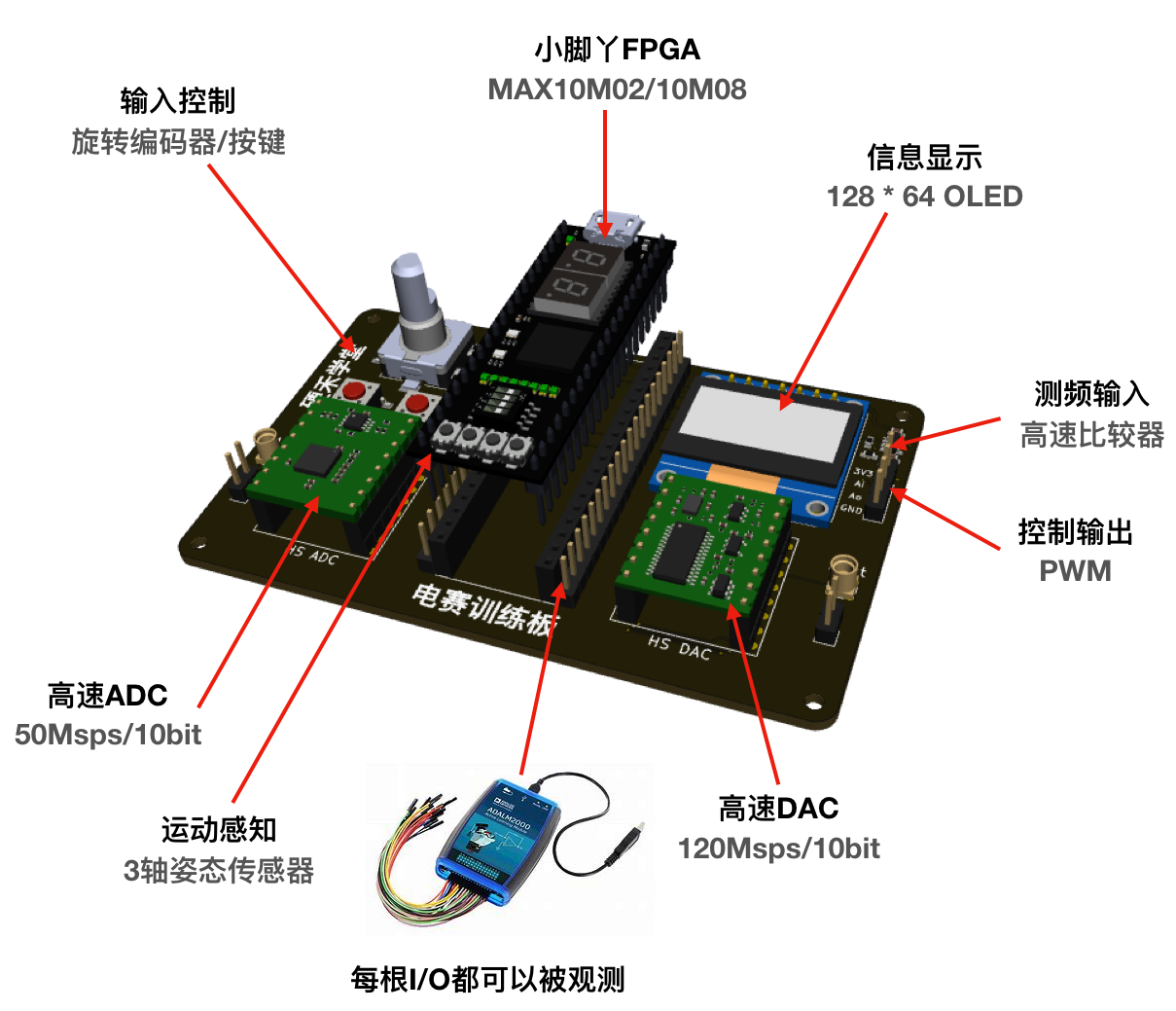

3Peaks公司10位/125Msps高速DAC
6管脚直插或邮票孔封装
便捷搭配16管脚FPGA最小系统模块
适用于电赛和双通道高速数据采集项目
单通道/10位/125Msps
输出模拟信号2Vpp
3.3V - 5V供电
10-Bit, 40MHz, Current/Voltage-Output DACs
QSOP24
TQFN24
Maxim
12位
12-Bit, 4.3Gsps Cable Downstream Direct RF Synthesis DAC
CSBGA169
Maxim
12-Bit, 1.5Gsps High-Dynamic Performance DAC
CSBGA169
Maxim
12-Bit, 4.0Gsps High-Dynamic Performance Wideband DAC
CSBGA169
Maxim
12-Bit, 2.3Gsps Multi-Nyquist DAC
CSBGA169
Maxim
12-Bit, 600Msps, High-Dynamic-Performance DAC with LVDS Inputs
QFN68
Maxim
3.3V, 12-Bit, 500Msps High Dynamic Performance DAC with Differential LVDS Inputs
QFN68
Maxim
14位
14-Bit 3.072Gsps RF DAC
FCCSP144
Maxim
14-Bit, 2.3Gsps Direct RF Synthesis DAC with Selectable Frequency Response
CSBGA256
Maxim
14-Bit, 4.6Gsps Cable Downstream Direct RF Synthesis DAC
CSBGA256
Maxim
14-Bit, 600Msps, High-Dynamic-Performance DAC with LVDS Inputs
QFN68
Maxim
3.3V, 14-Bit, 200Msps High Dynamic Performance DAC with CMOS Inputs
QFN48
Maxim
3.3V, 14-Bit, 500Msps High Dynamic Performance DAC with Differential LVDS Inputs
QFN68
Maxim
双通道
10位
Dual, 10-Bit, 80Msps, Current-Output DAC
封装:QFN40
Dual, 10-Bit, 165Msps, Current-Output DAC
TQFN40
Maxim
Dual, 10-Bit, 300Msps, DAC with 4x/2x/1x Interpolation Filters and PLL
TQFP48
Maxim
Dual, 10-Bit, 300Msps, Current-Output DAC with 4x/2x/1x Interpolation Filters
TQFP48
Maxim
Dual, 10-Bit, 40MHz Current/Voltage Output DACs with Alternate Phase Update
QSOP28
Maxim
Dual, 10-Bit, 40MHz Current/Voltage Output DACs with Alternate Phase Update
QSOP28
Maxim
Dual, 10-Bit, 40MHz, Current/Voltage Simultaneous-Output DACs
QSOP28
Maxim
Dual, 10-Bit, 40MHz, Current/Voltage Simultaneous-Output DACs
QSOP28
Maxim
12位
200Msps
TQFP48

TI
12-Bit, 250Msps, High-Dynamic-Performance, Dual DAC with LVDS Inputs
QFN68
Maxim
12-Bit, 500Msps Interpolating and Modulating Dual DAC with CMOS Inputs
QFN68
Maxim
12-Bit, 200Msps, High-Dynamic-Performance, Dual DAC with CMOS Inputs
QFN68
Maxim
14位
具有集成 IQ 调制器的双路 14 位 65-MSPS 数模转换器
65Msps
VQFN48

TI
集成 NCO、双通道 14 位 65MSPS DAC、射频 IQ 调制器和 LVDS 输出选项
VQFN48

TI
125Msps
TQFP48

TI
14-Bit, 500Msps, Interpolating and Modulating Dual DAC with CMOS Inputs
QFN68
Maxim
14-Bit, 250Msps, High-Dynamic-Performance, Dual DAC with LVDS Inputs
QFN68
Maxim
14-Bit, 200Msps, High-Dynamic-Performance, Dual DAC with CMOS Inputs
QFN68
Maxim
