硬件工程师最常用的稳压器件 - 线性、开关、电荷泵

硬件工程师最常用的稳压器件
线性稳压器件
Fairchild公司的3端子正电压调节器,采用内部电流限制
TI公司的3 端子 1.5A 可调节正电压稳压器
TI公司的3 引脚 1.5A 可调节负电压稳压器
TI公司的三端可调节并联稳压器
LDO
单路正输出LDO
TI公司的一款低压差稳压器,负载电流为800 mA时压差为1.2 V

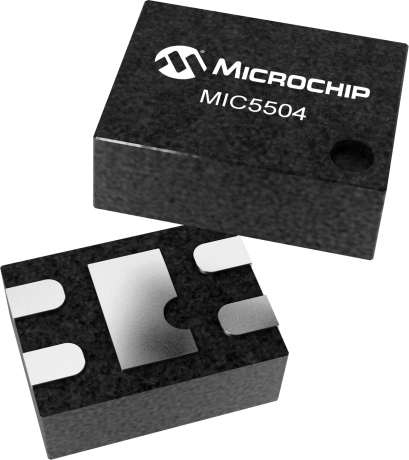

Microchip的单输出300mA LDO with Enable Pull-Down & Auto Discharge,2.5-5.5V输入,超级便宜,只有0.08美元

Summary: The MIC5501/2/3/4 is an advanced general-purpose LDO ideal for powering general-purpose portable devices. The MIC5501/2/3/4 family of products provides a high-performance 300mA LDO in an ultra-small 1mm x 1mm package. The MIC5502 and MIC5504 LDOs include an auto-discharge feature on the output that is activated when the enable pin is low. The MIC5503 and MIC5504 have an internal pull-down resistor on the enable pin that disables the output when the enable pin is left floating. This is ideal for applications where the control signal is floating during processor boot up. Ideal for battery-powered applications, the MIC5501/2/3/4 offers 2% initial accuracy, low dropout voltage (160mV at 300mA), and low ground current (typically 38µA). The MIC5501/2/3/4 can also be put into a zero-off-mode current state, drawing virtually no current when disabled. The MIC5501/2/3/4 has an operating junction temperature range of -40°C to 125°C. Additional Features * Input voltage range: 2.5V to 5.5V * Fixed output voltages from 1.0V to 3.3V * 300mA guaranteed output current * High output accuracy (±2%) * Low quiescent current: 38μA * Stable with 1µF ceramic output capacitors * Low dropout voltage: 160mV @ 300mA * Output discharge circuit: MIC5502, MIC5504 * Internal enable pull-down: MIC5503, MIC5504 * Thermal-shutdown and current-limit protection * 4-lead 1.0mm x 1.0mm Thin DFN package * MIC5504 5-pin SOT23 package

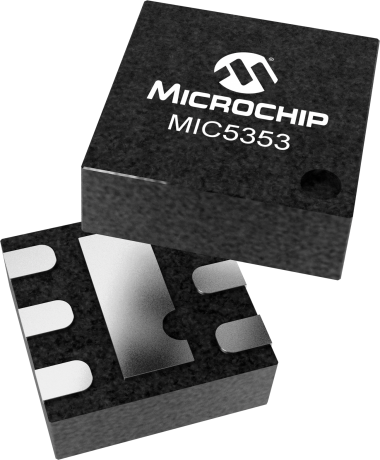

6Vin, Single 500mA ULDO, in 1.6mm × 1.6mm Package

The MIC5353 is a high performance, single-output, ultra-low LDO (ULDO™) regulator, offering a low total output noise of 30µVrms. The MIC5353 is capable of sourcing 500mA output current and offers high PSRR and low output noise, making it an ideal solution for RF applications. The MIC5353 provides 2% accuracy, extremely low dropout voltage (160mV at 500mA), and low ground current (typically 90µA) making it ideal for battery-operated applications. When disabled, the MIC5353 enters a zero off-mode current state, thereby drawing almost no current. Additional Features * 500mA guaranteed output current * Input voltage range: 2.6V to 6V * Ultra-low dropout voltage: 160mV at 500mA * ±2% initial accuracy * Ultra-low output noise: 30µVrms * Low quiescent current: 90µA * Stable with ceramic output capacitors * 35µs turn-on time * Thermal shutdown and current limit protection

美信公司的500mA、低电压、线性稳压器,µMAX封装

说明: The MAX1806 low-dropout linear regulator operates from a +2.25V to +5.5V supply and delivers a guaranteed 500mA load current with low 175mV dropout. The high-accuracy (±1%) output voltage is preset at an internally trimmed voltage (see Selector Guide) or can be adjusted from +0.8V to +4.5V with an external resistive-divider. An internal PMOS pass transistor allows low 210µA supply current, making this device ideal for portable equipment such as personal digital assistants (PDAs), cellular phones, cordless phones, and other equipment, including base stations and docking stations. Other features include an active-low, power-OK output that indicates when the output is out of regulation, a 0.02µA shutdown mode, short-circuit protection, and thermal shutdown protection. The MAX1806 comes in a miniature 1.3W, 8-pin power-µMAX® package with a metal pad on the underside of the package. 关键特性: * Guaranteed 500mA Output Current * Output Down to 0.8V * Low 175mV Dropout at 500mA * ±1% Output Voltage Accuracy * Preset at 0.8V, 1.5V, 1.8V, 2.5V, or 3.3V * Adjustable from 0.8V to 4.5V * Power-OK Output * Low 210µA Ground Current * 0.02µA Shutdown Current * Thermal Overload Protection * Output Current Limit * Tiny 1.3W, 8-Pin Power-µMAX Package

TI公司的250mA 超低噪声低压差稳压器

LP5907 是一款能提供高达 250mA 输出电流的低噪声 LDO。此器件专门针对射频和模拟电路而设计,可满足其低噪声、高 PSRR、低静态电流以及低线路或负载瞬态响应系数等诸多要求。LP5907 采用创新的设计技术,无需噪声旁路电容便可提供出色的噪声性能,并且支持远距离安置输出电容。

TI的用于便携式设备的 150mA、低 IQ、低噪音、低压降稳压器

TLV713 系列低压降 (LDO) 线性稳压器是具有出色线路和负载瞬态性能的低静态电流 LDO 并且设计用于功耗敏感应用。 这些器件提供了 1% 的典型准确度。 TLV713 系列器件经过设计,无需使用输出电容即可稳定运行。 移除输出电容器可实现极小的解决方案尺寸。 然而,如果使用了一个输出电容器,TLV713 系列也可与任何输出电容器实现稳定运行。 TLV713 还可在器件上电和使能期间提供浪涌电流控制。 TLV713 将输入电流限制到已定义的电流限值来避免来自输入电源的大电流。 这个功能对于电池供电类器件十分重要。 TLV713 系列采用标准 DQN 和 DBV 封装。 TLV713P 提供了一个有源下拉电路,用于使输出负载快速放电。 特性: * 使用或不使用电容时均可稳定运行 * 折返过流保护 * 封装: * 1mm × 1mm 4 引脚 X2SON * 5 引脚小外形尺寸晶体管 (SOT)-23 * 极低压降:150mA 时为 230mV * 准确度:1% * 低 IQ:50µA * 输入电压范围:1.4V 至 5.5V * 可用固定输出电压:1V 至 3.3V * 高电源抑制比 (PSRR):1kHz 时为 65dB * 有源输出放电(仅限 P 版本)

ADI公司的高精度ANYCAP® 200mA低压差线性稳压器

ADP3303属于ADP3300、ADP3301和ADP3309系列精密低压差anyCAP稳压器。相较于传统LDO,ADP3303的突出之处在于其不同的架构、增强的工艺技术和不同的封装。它采用专利设计,仅需一个0.47 μF输出电容便可保持稳定。这款器件对电容的等效串联电阻(ESR)不敏感,使用任何优质电容均可稳定工作,其中包括适合空间受限应用的陶瓷型(MLCC)电容。ADP3303在室温下可实现±0.8%的出色精度,温度、线路和负载调整的总体精度为±1.4%。200 mA时,其压差仅为180 mV(典型值)。 除了架构和工艺之外,ADI公司的专有散热增强型封装(Thermal Coastline)无需印刷电路板(PCB)上具有外部散热器或大面积铜层,便能处理1W的功耗。 这使得ADP3303的PCB面积可以保持最小,因而非常适合便携设备使用。 ADP3303可在宽输入电压范围内(3.2 V至12 V)内工作,能够提供超过200 mA的负载电流。 这款器件具有错误标志功能,可指示何时器件将要进入非稳压状态,或者短路或热过载保护被激活。其它特性包括关断和可选的降噪功能。ADP3300、ADP3301和ADP3309 anyCAP LDO系列提供宽输出电压范围和以下输出电流电平: ADP3300(50 mA,SOT-23) ADP3301 (100 mA) ADP3302(100 mA,双路输出) 特性: * 高线路和负载精度:±0.8% (+25°C),±1.4%(整个温度范围) * 超低压差:200mV时,180 mV(典型值) * 仅需CO = 0.47 µF便可保持稳定 anyCAP = 使用所有类型的电容(包括MLCC)均可保持稳定 * 电源电压范围:3.2 V至12 V * 限流、限热 * 低噪声 * 压差检测器 * 低关断电流:<1 µA * 散热增强型SO-8封装 * 出色的线路和负载调节性能

ADI公司的高精度、超低静态电流、1A、anyCAP®低压差稳压器
TI公司的输出电流可达1A的高精度低噪声低压降 (LDO) 稳压器
TI公司的输出电流可以达1A的低压差线性稳压集成电路
TI公司的具有可编程软启动的 1.5A LDO
TI公司的单路输出 LDO、1.5A、可调节 (1.21V 至 20V)、快速瞬态响应
单路负输出LDO
TI的200mA 负输出低压降线性稳压器

The TPS723xx family of low-dropout (LDO) negative voltage regulators offers an ideal combination of features to support low noise applications. These devices are capable of operating with input voltages from –10 V to –2.7 V, and support outputs from –10 V to –1.2 V. These regulators are stable with small, low-cost ceramic capacitors, and include enable (EN) and noise reduction (NR) functions. Thermal short-circuit and over-current protections are provided by internal detection and shutdown logic. High PSRR (65 dB at 1 kHz) and low noise (60 μVRMS) make the TPS723xx ideal for low-noise applications. The TPS723xx uses a precision voltage reference to achieve 2% overall accuracy over load, line, and temperature variations. Available in a small SOT23-5 package, the TPS723xx family is fully specified over a temperature range of –40°C to 125°C. 特性: * Ultralow Noise: 60 μVRMS Typical * High PSRR: 65 dB Typical at 1 kHz * Low Dropout Voltage: 280 mV Typical at 200 mA, 2.5 V * Available in –2.5-V and Adjustable (–1.2 V to –10 V) Versions * Stable With a 2.2-μF Ceramic Output Capacitor * Less Than 2-μA Typical Quiescent Current in Shutdown Mode * 2% Overall Accuracy (Line, Load, Temperature) * Thermal and Over-Current Protection * SOT23-5 (DBV) Package * SOT-5 (DDC) Package * Operating Junction Temperature Range: –40°C to 125°C

ADI的-28 V、 −200 mA、,低噪声、线性稳压器

ADP7182是一款CMOS、低压差(LDO)线性稳压器,采用-2.7 V至-28 V电源供电,最大输出电流为−200 mA。这款高输入电压LDO适用于调节-27 V至-1.2 V供电的高性能模拟和混合信号电路。该器件采用先进的专有架构,提供高电源抑制、低噪声特性,仅需一个2.2 μF小型陶瓷输出电容,便可实现出色的线路与负载瞬态响应性能。 ADP7182提供固定输出电压选项和可调输出型号,可通过外置反馈分压器,将输出电压调节至-1.22 V至−VIN + VDO。 现有库存提供下列固定输出电压选项:−5 V (3 mm × 3 mm LFCSP)、−1.8 V、−2.5 V、−3 V、−5 V (TSOT)、−1.2 V、−1.5 V、−2.5 V、−5 V (2 mm × 2 mm LFCSP)。根据特殊要求,还可提供下列电压选项。 ADP7182稳压器输出噪声电压为18 μV rms,并不受输出电压影响。使能逻辑能够与正负逻辑电平接口,以实现最大灵活性。 ADP7182采用5引脚TSOT和6/8引脚LFCSP封装,以实现薄型、小尺寸应用。 特性: * 低噪声:18 μV rms * 电源抑制比(PSRR):66 dB(10 kHz,VOUT= −3 V) * 正负使能逻辑 * 使用小型2.2μF陶瓷输出电容保持稳定 * 输入电压范围:-2.7 V至-28 V * 最大输出电流:-200 mA * 低压差:185 mV(在-200 mA负载下) * 初始精度:±1% * 线路、负载和温度范围内的精度 * +2%最大值/−3%最小值 * 低静态电流,IGND= −650 μA(−200 mA负载) * 低关断电流:−2 μA * 可调输出电压范围:−1.22 V至−VIN+ VDO * 限流和热过载保护 * 6/8引脚LFCSP和5引脚TSOT * ADIsimPower工具支持

开关稳压器件
TI的易于使用的IC,包含构建简单dc-dc转换器所需的所有初级电路
TI的具有40V内部FET开关(采用 SOT-23 封装)的 0.6/1.6 MHz 升压转换器
ADI的具可配置4A输出阵列的4通道 DC/DC μModule 稳压器
ADI的一款具有LDO后置稳压器的3.1VIN 至 32VIN隔离型反激式 μModule DC/DC 转换器
Power Integration的成本最低,元件数目少的降压型转换器,非隔离buck或buck-boost变换器
TI的一款拥有同步降压直流/直流转换器的微型模块稳压器,最大支持2A的电流
安森美公司的一款单片集成电路,内置脉冲宽度调制调节器需要的所有控制电路,高达430kHz的PWM 控制器可编程频率
TI公司的电流模式 PWM 控制器
TI公司的具有高效休眠模式的 LMR14003/6 40V 300/600mA 降压稳压器
ADI公司的60V、四开关、同步降压-升压型 LED 驱动器控制器
TI公司的用于电源控制,能够灵活地根据特定应用定制电源控制电路
Anisem公司的300KHz,23V/5A降压转换器
TI公司的150KHz,3A降压稳压器
TI公司的52kHz,3A降压稳压器
TI公司的3A,宽输入范围,降压型SWIFTTM转换器
美信公司的500mA、76V、高效率、MAXPower降压型DC-DC转换器
MPS的200mA, 5.5V, 500nA, Ultra-Low Iq, Synchronous, Step-Down Converter

The MP28200 is a monolithic power-management unit containing 200mA, high-efficiency, step-down, switching converters. The nanoamp quiescent current provides extremely high efficiency when the load current is down in the µA range. With minimum input voltage as low as 2V, the MP28200 allows the system to operate directly from the battery. The constant-on-time control scheme provides fast transient response, high light-load efficiency, and requires minimal capacitance. The regulation can be made tight by integrating an error amplifier to correct the output voltage. The CTRL pins control the on/off and output voltage selection functions. Fault protection features include under-voltage lockout (UVLO), over-current protection (OCP), and thermal shutdown. The MP28200 requires a minimal number of readily available, standard, external components and is available in a small QFN-12 (2mmx2mm) package. 产品特性 * Ultra-Low Iq: 500nA * Wide 2.0V to 5.5V Operating Input Range * 7 Selectable Output Voltages * Up to 200mA Output Current * 1.5MHz Switching Frequency in Continuous Conduction Mode (CCM) * 100% Duty Cycle in Dropout * 0.25Ω and 0.25Ω Internal Power MOSFET Switches * Cycle-by-Cycle Over-Current Protection (OCP) * Short-Circuit Protection (SCP) with Hiccup Mode * Over-Temperature Protection (OTP) * Available in a QFN-12 (2mmx2mm) Package

电荷泵
美信公司的单芯片CMOS开关电容电压转换器

The MAX1044 and ICL7660 are monolithic, CMOS switched-capacitor voltage converters that invert, double, divide, or multiply a positive input voltage. They are pin compatible with the industry-standard ICL7660 and LTC1044. Operation is guaranteed from 1.5V to 10V with no external diode over the full temperature range. They deliver 10mA with a 0.5V output drop. The MAX1044 has a BOOST pin that raises the oscillator frequency above the audio band and reduces external capacitor size requirements. The MAX1044/ICL7660 combine low quiescent current and high efficiency. Oscillator control circuitry and four power MOSFET switches are included on-chip. Applications include generating a -5V supply from a +5V logic supply to power analog circuitry. For applications requiring more power, the MAX660 delivers up to 100mA with a voltage drop of less than 0.65V. 关键特性 * Miniature µMAX Package * 1.5V to 10.0V Operating Supply Voltage Range * 98% Typical Power-Conversion Efficiency * Invert, Double, Divide, or Multiply Input Voltages * BOOST Pin Increases Switching Frequencies (MAX1044) * No-Load Supply Current: 200µA Max at 5V * No External Diode Required for Higher-Voltage Operation 应用 * 从+5V逻辑电源产生-5V电源 * 数据采集 * EIA/TIA-232E和EIA/TIA-562电源 * 手持式仪表(PDA、掌上电脑) * 运算放大器电源 * 面板表 * 个人通信设备 * 便携式电话

ADI的输出100mA的CMOS 开关电容电压转换器

ADM660/ADM8660是一款电荷泵电压转换器,可用来将输入电源电压反相,使VOUT = -VIN 或将它加倍(仅限ADM660),使VOUT = 2 x VIN。+1.5 V至+7 V范围内的输入电压可以反相为-1.5 V至-7 V输出电压。这种反相方案非常适合在单电源系统中产生负供电轨。电荷泵只需用两个较小的外部电容。50 mA以下输出电流可以实现90%以上的功效,100 mA输出电流则可以实现80%以上的功效。 利用频率控制(FC)输入引脚,可选择25 kHz或120 kHz的电荷泵工作频率,以便优化电容大小和静态电流。选择25 kHz时,适合用10 µF外部电容,而选择120 kHz时,电容大小可减至2.2 µF。ADM660上的振荡器频率也可以利用与OSC输入相连的外部电容进行控制,或利用外部时钟驱动OSC输入进行控制。在需要较高电源电压的应用中,可以利用ADM660使输入电压加倍。对于2.5 V至7 V输入电压,可实现5 V至14 V输出电压,输出电流最高达100 mA。 ADM8660采用低功耗关断(SD)引脚代替外部振荡器(OSC)引脚。该引脚可以用来禁用该器件,将静态电流降至300 nA。 特性: * ADM660: 使输入电源电压反相或加倍 * ADM8660: 使输入电源电压反相 * 输出电流:100 mA * 关断功能(ADM8660) * 2.2 µF 或10 µF电容 * 0.3 V 压降(30 mA负载) * 采用+1.5 V至+7 V电源供电 * 低功耗CMOS:600 µA静态电流 * 可选电荷泵频率(25 kHz/120 kHz) * MAX660、MAX665、ICL7660的引脚兼容升级器件 * 提供16引脚TSSOP封装

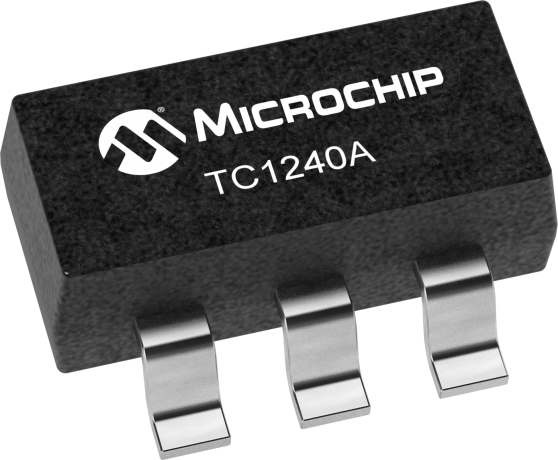

Microchip公司的Positive Doubling Charge Pumps with Shutdown

Summary The TC1240A is a doubling CMOS charge-pump voltage converter in a small 6-Pin SOT-23A package. TC1240A doubles an input voltage which can range from +2.5V to +5.5V. Conversion efficiency is typically >99%. Internal oscillator frequency is 160kHz for the TC1240A. The TC1240A has an active high shutdown which limits the current consumption of the device to less than 1µA. External component requirement is only two capacitors for standard voltage doubler applications. All other circuitry, including control, oscillator, power MOSFETs are integrated on-chip. Typical supply current is 550µA and the device is available in a 6-Pin SOT-23A surface mount package. Additional Features: * >99% Typical Voltage Conversion Efficiency * Voltage Doubling * Low Output Resistance (12Ohms Typical) * Only Two External Capacitors Required * Consumes 550µA (Typical) in Active Mode * Power-Saving Shutdown Mode (1µA Maximum) * Shutdown Input Fully Compatible with 1.8V Logic Sytems

TI的低噪声稳压开关电容电压逆变器

LM27761 低噪声稳压开关电容器电压逆变器可针对 2.7V 到 5.5V 范围内的输入电压,提供可调节的超低噪声输出。在应用解决方案中使用四个低成本电容器,可以提供高达 250mA 的输出电流。该器件的稳压输出可在 −5V 到 −1.5V 范围内进行调节。LM27761 以 2MHz(典型值)开关频率运行,以减小输出电阻和电压波纹。LM27761 的工作电流仅为 370µA(对于大多数负载,电荷泵功率效率均高于 80%)并且关断电流典型值为 7µA,因此在驱动功率放大器、DAC 偏置电源轨以及其他大电流、低噪声电压应用时, 可提供理想的性能。 特性: * 对输入电源电压进行反相和稳压 * 低输出波纹 * 关断时可使静态电流降至 7µA(典型值) * 输出电流高达 250mA * 2.5Ω 逆变器输出阻抗,VIN = 5V * 峰值负载时的稳定度为 ±4% * 370µA 静态电流 * 2MHz(典型值)固定频率、低噪声运行 * 2MHz 频率时的低压降稳压器 (LDO) 电源* 抑制比 (PSRR) 为 35dB(典型值), * 负载电流为 80mA * 100mA 电流时的 LDO 压降电压为 30mV,VOUT = –5V * 限流和热保护
