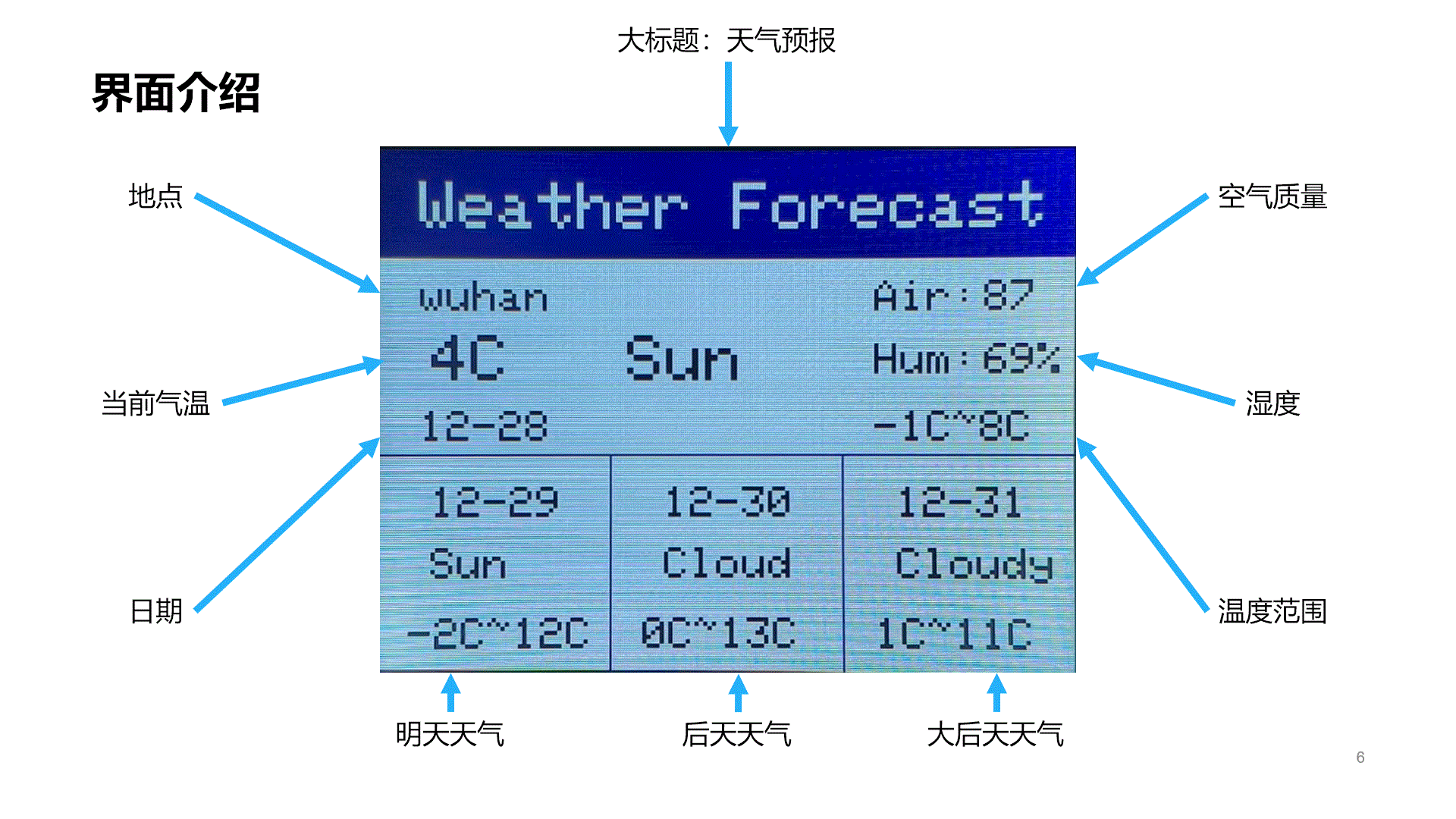

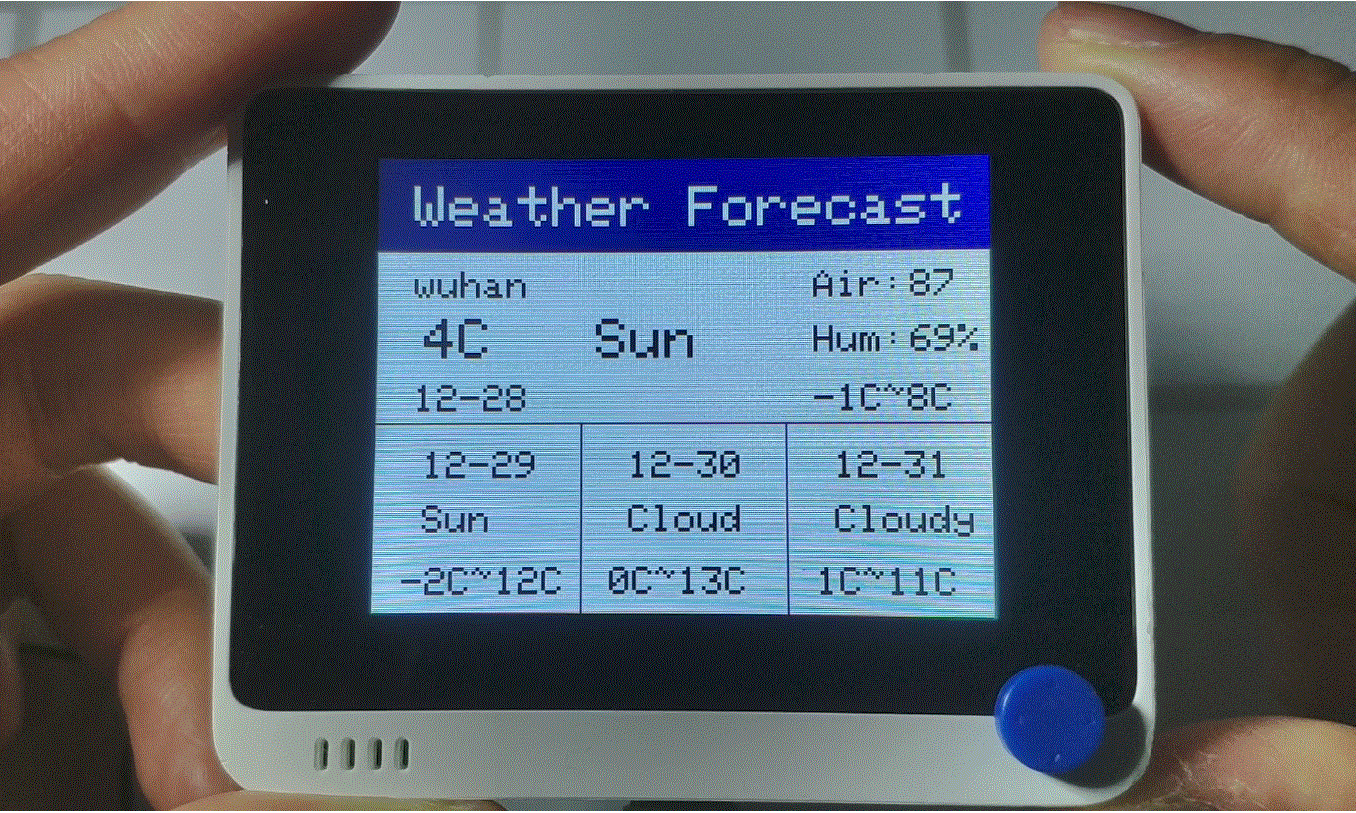

效果展示：

说明文档:

本次选择的是任务二：

• 制作一个自动联网的天气预报仪，在设计界面显示温湿度、天气情况、空气质量以及未来三天内的天气变化。
• 所以本次就利用WIO做一个迷你的气象站显示终端，通过网络上的天气API获取信息来进行展示。

完成气象站的显示需要以下功能模块：

• 网络连接模块，获取当前需要的天气信息——RTL8720DN
• 通过rpcWiFi库进行wifi的网络连接
• 通过HTTPClient获取天气API的信息：http://140.82.45.174:8000/weather
• 通过ArduinoJson库将获取的信息进行解析
• 显示模块，将获取到的信息进行排列的显示——2.4” LCD屏幕
• 使用TFT_eSPI库进行界面和信息的展示

代码：

#include "rpcWiFi.h"
#include "TFT_eSPI.h"
#include "HTTPClient.h"
#include "ArduinoJson.h"

TFT_eSPI tft;
TFT_eSprite spr = TFT_eSprite(&tft);
const char* ssid = "wio";
const char* password =  "wiotestwifi";
const char* host = "http://140.82.45.174:8000/weather";




 void checkWiFi(){
     if(WiFi.status() == WL_CONNECTED){
       return;
     }
     int dotCounter = 0;
     while (WiFi.status() != WL_CONNECTED)
     {
         if(dotCounter%10 == 0){
            tft.fillScreen(TFT_BLACK);
            tft.setTextColor(TFT_CYAN);          //sets the text colour to black
            tft.setTextSize(2);
            tft.setCursor(60,110);
         }
         tft.fillScreen(TFT_BLACK);
         tft.setCursor(5,10);
         tft.print("Wait for WiFi...");
         dotCounter ++;
         WiFi.begin(ssid, password);
     }

     Serial.println("WiFi connected");
     tft.fillScreen(TFT_BLACK);
     tft.setCursor(5,10);
     tft.println("WiFi connected!");
     Serial.println("IP address: ");
     tft.println("IP address: ");
     Serial.println(WiFi.localIP());
     tft.print(WiFi.localIP());
     delay(2000);
 }

 void setup()
 {
     Serial.begin(115200);
     delay(10);
     Serial.println();
     Serial.print("Connecting to ");
     Serial.println(ssid);
     tft.begin();
     tft.setRotation(3);

     tft.fillScreen(TFT_BLACK); //Black background
     tft.setTextColor(TFT_CYAN);          //sets the text colour to black
     tft.setTextSize(2);

     checkWiFi();
     tft.fillScreen(TFT_BLACK); //Black background
     tft.setCursor(5,10);
     tft.println("Get Weather API...");
     HTTPClient client;
     client.begin(host); // Make HTTP GET request
     int httpCode = client.GET();

     StaticJsonDocument<1024> doc;

     tft.print("StatusCode: ");
     tft.println(httpCode);
     if(httpCode!=0){
        String data = client.getString();
        DeserializationError error = deserializeJson(doc,data);
        if (!error){
            const char *city = doc["city"];
            const char *day0_date = doc["0"][0];
            const char *day0_wea = doc["0"][1];
            const char *day0_tem = doc["0"][2];
            const char *day0_temr = doc["0"][3];
            const char *day0_hum = doc["0"][4];
            const char *day0_air = doc["0"][5];

            const char *day1_date = doc["1"][0];
            const char *day1_wea = doc["1"][1];
            const char *day1_temr = doc["1"][3];

            const char *day2_date = doc["2"][0];
            const char *day2_wea = doc["2"][1];
            const char *day2_temr = doc["2"][3];

            const char *day3_date = doc["3"][0];
            const char *day3_wea = doc["3"][1];
            const char *day3_temr = doc["3"][3];

            // Display
            // Display Title
        tft.fillScreen(TFT_WHITE);
        tft.fillRect(0,0,320,50,TFT_NAVY);
        tft.setTextColor(TFT_WHITE);
        tft.setTextSize(3);
        tft.drawString("Weather Forecast",20,15);

        // Outline
        tft.drawFastHLine(0,140,320,TFT_NAVY);
        tft.drawFastVLine(107,140,190,TFT_NAVY);
        tft.drawFastVLine(214,140,190,TFT_NAVY);

        //0 day weather info

        // screen 1
        tft.setTextColor(TFT_BLACK);
        tft.setTextSize(2);
        tft.drawString(city,20,60);
        tft.setTextSize(3);
        tft.drawString(day0_tem,25,85);
        tft.drawString(day0_wea,115,85);
        tft.setTextSize(2);
        tft.drawString(day0_date,20,120);

        // screen 2
        tft.setTextSize(2);
        tft.drawString("Air:",229,60);
        tft.drawString(day0_air,279,60);
        tft.drawString("Hum:",229,89);
        tft.drawString(day0_hum,279,89);
        tft.drawString(day0_temr,229,120);


        //1day info
        tft.setTextSize(2);
        tft.drawString(day1_date,25,155);
        tft.drawString(day1_wea,25,183);
        tft.drawString(day1_temr,15,215);

        //2day info
        tft.setTextSize(2);
        tft.drawString(day2_date,132,155);
        tft.drawString(day2_wea,132,183);
        tft.drawString(day2_temr,122,215);

        //3day info
        tft.setTextSize(2);
        tft.drawString(day3_date,239,155);
        tft.drawString(day3_wea,239,183);
        tft.drawString(day3_temr,229,215);

          }
          else{
            Serial.print(error.f_str());
            }

        Serial.print(data);


     }
     client.end();
     delay(200000);}
void loop(){
 }
