一、功能说明

 基础功能（任务1）

串口通信：使用MCXA346开发板的UART串口输出"Hello, DigiKey Funpack 5-1"信息

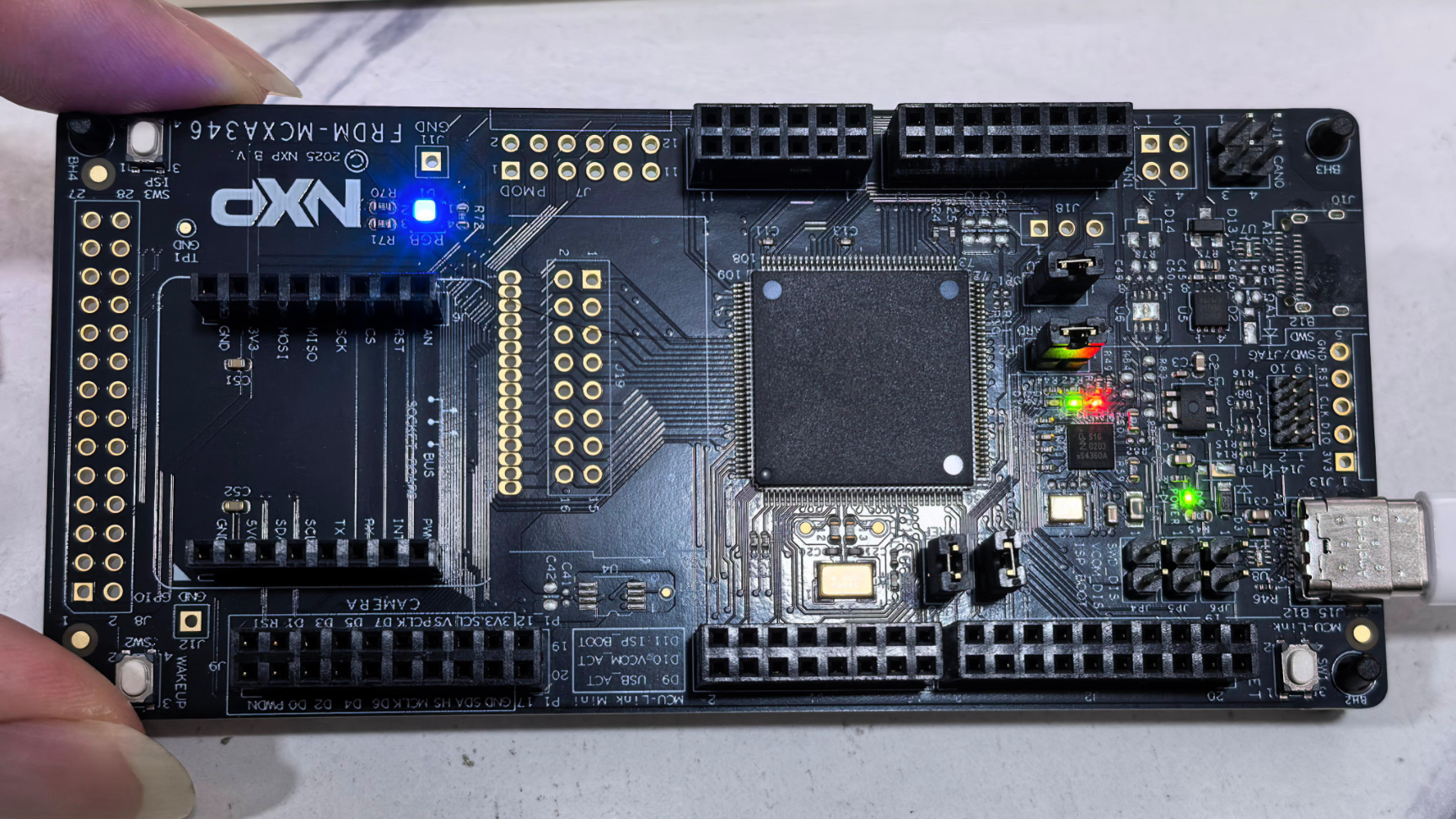

实现效果：开发板上电后自动初始化串口，在串口调试工具中显示欢迎信息，RGBLED点亮与关闭。

进阶功能（Shell系统）

核心目标：实现一个带缓冲区的简易命令行解释器

主要功能：

交互式界面：显示"ysh> "提示符，支持实时字符回显

缓冲区管理：128字节输入缓冲区，支持退格删除

命令解析：支持空格分隔的参数解析

LED控制：

单个LED控制：开关、切换状态

所有LED控制：同时开关、闪烁

闪烁控制：可调节闪烁次数和间隔

系统功能：

help：显示所有可用命令

version：显示版本信息

info：显示系统信息

ysh> led red on

ysh> led blue toggle

ysh> all blink 5 200

ysh> blink green 3 100

二、实现计划

第一阶段：基础功能

开发环境配置

安装Keil MDK开发工具

配置MCXA346开发板SDK

设置串口调试工具XCOM

基础功能实现

硬件初始化GPIO、UART、时钟

实现LED基本控制功能

测试串口输出功能

第二阶段：Shell

输入系统设计

字符输入处理模块

输入缓冲区管理

特殊键处理

命令系统设计

命令解析模块

命令表结构设计

参数处理机制

第三阶段：功能扩展和优化

LED控制功能实现

LED控制命令

闪烁模式控制

三、软件框架

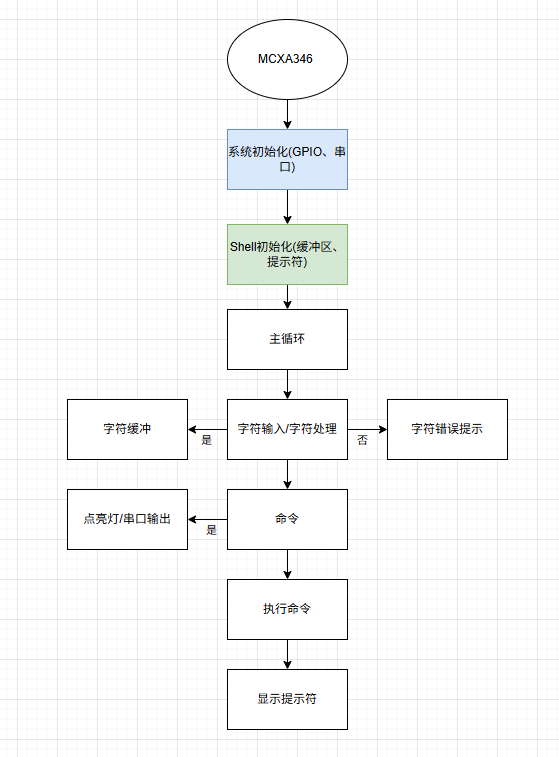

 系统架构层次图

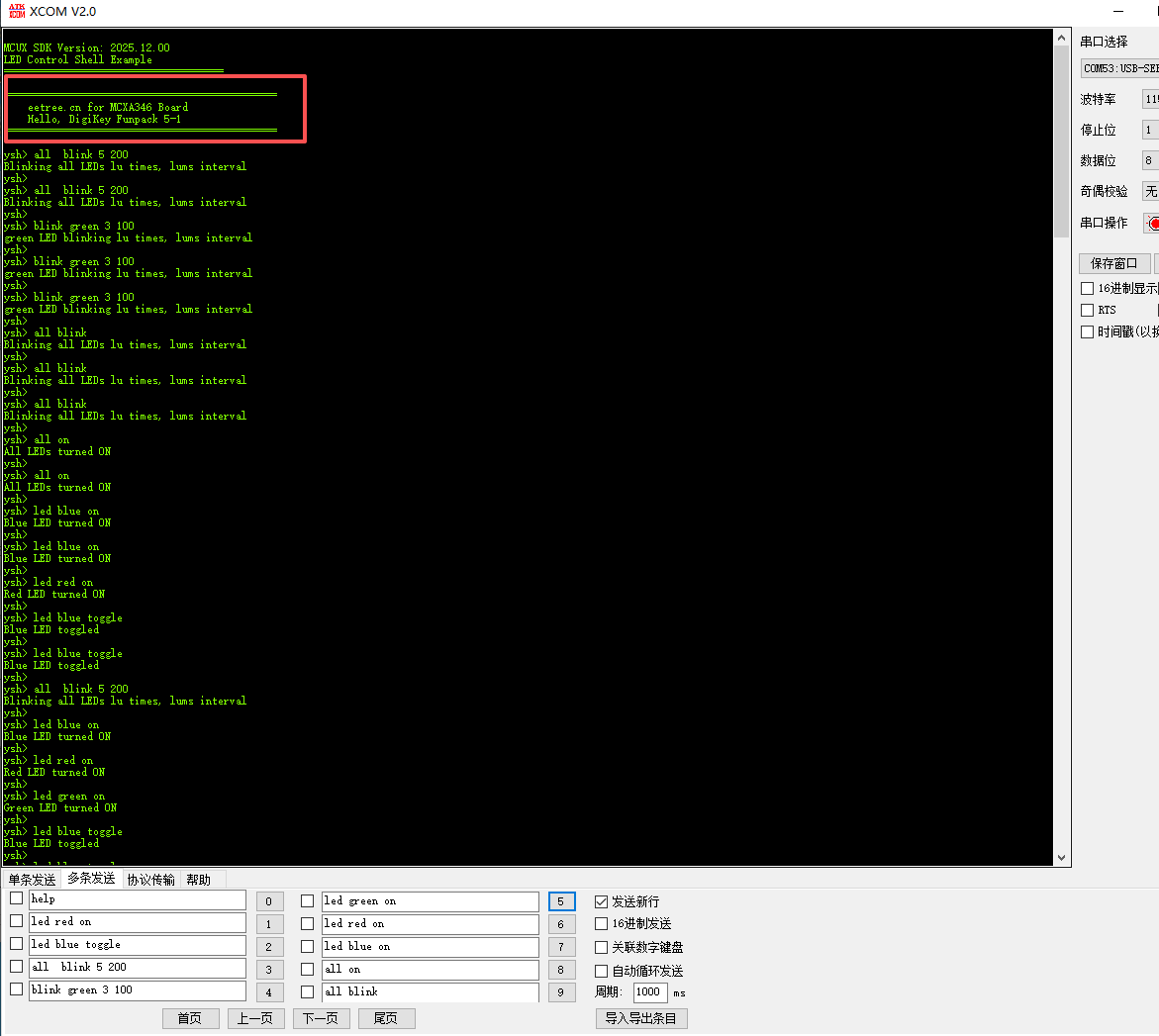

四、执行命令

五、核心代码

/* Shell input buffer */
static char shell_buffer[SHELL_BUFFER_SIZE];
static uint16_t shell_buffer_index = 0;
static bool shell_new_command = false;

/* Command table structure */
typedef struct {
    const char *cmd_name;           /* Command name */
    const char *cmd_help;          /* Command help text */
    int (*cmd_func)(int argc, char *argv[]); /* Command handler */
} shell_command_t;

/* Command table */
static const shell_command_t shell_cmd_table[] = {
    {"help",    "Show all available commands", shell_cmd_help},
    {"led",     "Control LED: led [red|green|blue] [on|off|toggle]", shell_cmd_led},
    {"all",     "Control all LEDs: all [on|off|blink]", shell_cmd_all},
    {"blink",   "Blink LED: blink [red|green|blue] [times=3] [delay=500]", shell_cmd_blink},
    {"clear",   "Clear screen", shell_cmd_clear},
    {"version", "Show version information", shell_cmd_version},
    {"info",    "Show system information", shell_cmd_info},
    {NULL, NULL, NULL}  /* End marker */
};

/*******************************************************************************
 * Code
 ******************************************************************************/

/* Delay function */
void delay(void)
{
    volatile uint32_t i = 0;
    for (i = 0; i < 8000000; ++i)
    {
        __asm("NOP");
    }
}

/* Millisecond delay function */
void delay_ms(uint32_t ms)
{
    /* Simple delay loop - adjust for your clock speed */
    for (volatile uint32_t i = 0; i < ms * 1000; ++i)
    {
        __asm("NOP");
    }
}

/*******************************************************************************
 * Shell Core Functions
 ******************************************************************************/

/* Shell initialization */
void shell_init(void)
{
    shell_clear_buffer();
    shell_new_command = false;

    /* Show welcome message */
    PRINTF("\r\n");
    PRINTF("==============================================\r\n");
    PRINTF("    eetree.cn for MCXA346 Board\r\n", SHELL_VERSION);
    PRINTF("    Hello, DigiKey Funpack 5-1\r\n");
    PRINTF("==============================================\r\n\r\n");

    shell_show_prompt();
}

/* Run shell main loop */
void shell_run(void)
{
    while (1)
    {
        /* Check if character is available */
        int ch = GETCHAR();
        if (ch != -1)  /* Check if character is available */
        {
            shell_process_char((char)ch);
        }

        /* If new command is ready, execute it */
        if (shell_new_command)
        {
            shell_execute_command();
            shell_new_command = false;
            shell_show_prompt();
        }
    }
}

/* Process input character */
void shell_process_char(char ch)
{
    switch (ch)
    {
        case ASCII_CR:      /* Enter */
        case ASCII_LF:      /* New line */
            if (shell_buffer_index > 0)
            {
                shell_newline();
                shell_new_command = true;
            }
            else
            {
                /* Empty command, just new line and show prompt */
                PRINTF("\r\n");
                shell_show_prompt();
            }
            break;

        case ASCII_BACKSPACE:  /* Backspace */
        case ASCII_DEL:        /* Delete */
            if (shell_buffer_index > 0)
            {
                shell_backspace();
            }
            break;

        case ASCII_CTRL_C:     /* Ctrl+C */
            PRINTF("^C\r\n");
            shell_clear_buffer();
            shell_show_prompt();
            break;

        default:
            /* Handle printable characters only */
            if (ch >= 0x20 && ch <= 0x7E)
            {
                if (shell_buffer_index < SHELL_BUFFER_SIZE - 1)
                {
                    /* Store in buffer and echo */
                    shell_buffer[shell_buffer_index++] = ch;
                    shell_buffer[shell_buffer_index] = '\0';
                    PUTCHAR(ch);
                }
                else
                {
                    /* Buffer full, beep warning */
                    PUTCHAR('\a');
                }
            }
            break;
    }
}

/* Execute command */
void shell_execute_command(void)
{
    if (shell_buffer[0] == '\0')
    {
        return;  /* Empty command */
    }

    /* Copy command string to avoid modifying original buffer */
    char cmd_line[SHELL_BUFFER_SIZE];
    strcpy(cmd_line, shell_buffer);

    /* Parse and execute command */
    shell_parse_command(cmd_line);

    /* Clear buffer */
    shell_clear_buffer();
}

/* Parse command */
void shell_parse_command(char *cmd_line)
{
    char *argv[SHELL_MAX_ARGS];
    int argc = 0;
    char *token;

    /* Split command arguments */
    token = strtok(cmd_line, " \t");
    while (token != NULL && argc < SHELL_MAX_ARGS)
    {
        argv[argc++] = token;
        token = strtok(NULL, " \t");
    }

    if (argc == 0)
    {
        return;  /* No command */
    }

    /* Find and execute command */
    bool cmd_found = false;
    for (int i = 0; shell_cmd_table[i].cmd_name != NULL; i++)
    {
        if (strcmp(argv[0], shell_cmd_table[i].cmd_name) == 0)
        {
            cmd_found = true;
            shell_cmd_table[i].cmd_func(argc - 1, (argc > 1) ? &argv[1] : NULL);
            break;
        }
    }

    /* Command not found */
    if (!cmd_found)
    {
        PRINTF("Unknown command: '%s'\r\n", argv[0]);
        PRINTF("Hello, DigiKey Funpack 5-1\r\n");
    }
}

/* Show prompt */
void shell_show_prompt(void)
{
    PRINTF(SHELL_PROMPT);
}

/* Clear buffer */
void shell_clear_buffer(void)
{
    shell_buffer[0] = '\0';
    shell_buffer_index = 0;
}

/* Handle backspace */
void shell_backspace(void)
{
    if (shell_buffer_index > 0)
    {
        shell_buffer_index--;
        shell_buffer[shell_buffer_index] = '\0';
        /* Backspace, space, backspace */
        PUTCHAR('\b');
        PUTCHAR(' ');
        PUTCHAR('\b');
    }
}

/* Handle new line */
void shell_newline(void)
{
    PRINTF("\r\n");
}

/*******************************************************************************
 * LED Control Functions
 ******************************************************************************/

/* Turn off all LEDs */
void led_all_off(void)
{
    LED_RED_OFF();
    LED_GREEN_OFF();
    LED_BLUE_OFF();
}

/* Turn on all LEDs */
void led_all_on(void)
{
    LED_RED_ON();
    LED_GREEN_ON();
    LED_BLUE_ON();
}

/* Blink all LEDs */
void led_blink_all(uint32_t times, uint32_t delay_time_ms)
{
    for (uint32_t i = 0; i < times; i++)
    {
        led_all_on();
        delay_ms(delay_time_ms);
        led_all_off();
        if (i < times - 1)
        {
            delay_ms(delay_time_ms);
        }
    }
}

/*******************************************************************************
 * Command Handlers
 ******************************************************************************/

/* help command */
int shell_cmd_help(int argc, char *argv[])
{
    PRINTF("\r\n=== Available Commands ===\r\n");
    for (int i = 0; shell_cmd_table[i].cmd_name != NULL; i++)
    {
        PRINTF("  %-10s - %s\r\n",
               shell_cmd_table[i].cmd_name,
               shell_cmd_table[i].cmd_help);
    }
    PRINTF("===========================\r\n");
    return 0;
}

/* led command */
int shell_cmd_led(int argc, char *argv[])
{
    if (argc < 2)
    {
        PRINTF("\r\nUsage: led [red|green|blue] [on|off|toggle]\r\n");
        PRINTF("Examples:\r\n");
        PRINTF("  led red on      # Turn on red LED\r\n");
        PRINTF("  led green off   # Turn off green LED\r\n");
        PRINTF("  led blue toggle # Toggle blue LED\r\n");
        return -1;
    }

    const char *color = argv[0];
    const char *action = argv[1];

    if (strcmp(color, "red") == 0)
    {
        if (strcmp(action, "on") == 0)
        {
            LED_RED_ON();
            PRINTF("Red LED turned ON\r\n");
        }
        else if (strcmp(action, "off") == 0)
        {
            LED_RED_OFF();
            PRINTF("Red LED turned OFF\r\n");
        }
        else if (strcmp(action, "toggle") == 0)
        {
            GPIO_PortToggle(BOARD_LED_GPIO, 1U << BOARD_LED_GPIO_PIN);
            PRINTF("Red LED toggled\r\n");
        }
        else
        {
            PRINTF("Error: Invalid action '%s'\r\n", action);
            return -1;
        }
    }
    else if (strcmp(color, "green") == 0)
    {
        if (strcmp(action, "on") == 0)
        {
            LED_GREEN_ON();
            PRINTF("Green LED turned ON\r\n");
        }
        else if (strcmp(action, "off") == 0)
        {
            LED_GREEN_OFF();
            PRINTF("Green LED turned OFF\r\n");
        }
        else if (strcmp(action, "toggle") == 0)
        {
            GPIO_PortToggle(BOARD_LED_GPIO, 1U << BOARD_LED2_GPIO_PIN);
            PRINTF("Green LED toggled\r\n");
        }
        else
        {
            PRINTF("Error: Invalid action '%s'\r\n", action);
            return -1;
        }
    }
    else if (strcmp(color, "blue") == 0)
    {
        if (strcmp(action, "on") == 0)
        {
            LED_BLUE_ON();
            PRINTF("Blue LED turned ON\r\n");
        }
        else if (strcmp(action, "off") == 0)
        {
            LED_BLUE_OFF();
            PRINTF("Blue LED turned OFF\r\n");
        }
        else if (strcmp(action, "toggle") == 0)
        {
            GPIO_PortToggle(BOARD_LED_GPIO, 1U << BOARD_LED3_GPIO_PIN);
            PRINTF("Blue LED toggled\r\n");
        }
        else
        {
            PRINTF("Error: Invalid action '%s'\r\n", action);
            return -1;
        }
    }
    else
    {
        PRINTF("Error: Invalid color '%s'\r\n", color);
        PRINTF("Available colors: red, green, blue\r\n");
        return -1;
    }

    return 0;
}

/* all command - control all LEDs */
int shell_cmd_all(int argc, char *argv[])
{
    if (argc < 1)
    {
        PRINTF("\r\nUsage: all [on|off|blink]\r\n");
        PRINTF("Examples:\r\n");
        PRINTF("  all on          # Turn on all LEDs\r\n");
        PRINTF("  all off         # Turn off all LEDs\r\n");
        PRINTF("  all blink       # Blink all LEDs\r\n");
        return -1;
    }

    const char *action = argv[0];

    if (strcmp(action, "on") == 0)
    {
        led_all_on();
        PRINTF("All LEDs turned ON\r\n");
    }
    else if (strcmp(action, "off") == 0)
    {
        led_all_off();
        PRINTF("All LEDs turned OFF\r\n");
    }
    else if (strcmp(action, "blink") == 0)
    {
        uint32_t times = (argc > 1) ? (uint32_t)atoi(argv[1]) : 3;
        uint32_t delay_time = (argc > 2) ? (uint32_t)atoi(argv[2]) : 800;

        if (times == 0) times = 3;
        if (delay_time == 0) delay_time = 800;

        PRINTF("Blinking all LEDs %lu times, %lums interval\r\n", times, delay_time);
        led_blink_all(times, delay_time);
    }
    else
    {
        PRINTF("Error: Invalid action '%s'\r\n", action);
        return -1;
    }

    return 0;
}

/* blink command */
int shell_cmd_blink(int argc, char *argv[])
{
    if (argc < 1)
    {
        PRINTF("\r\nUsage: blink [red|green|blue] [times=3] [delay=500]\r\n");
        return -1;
    }

    const char *color = argv[0];
    uint32_t times = (argc > 1) ? (uint32_t)atoi(argv[1]) : 3;
    uint32_t delay_time_ms = (argc > 2) ? (uint32_t)atoi(argv[2]) : 500;

    if (times == 0) times = 3;
    if (delay_time_ms == 0) delay_time_ms = 500;

    PRINTF("%s LED blinking %lu times, %lums interval\r\n", color, times, delay_time_ms);

    for (uint32_t i = 0; i < times; i++)
    {
        if (strcmp(color, "red") == 0)
        {
            LED_RED_ON();
            delay_ms(delay_time_ms);
            LED_RED_OFF();
        }
        else if (strcmp(color, "green") == 0)
        {
            LED_GREEN_ON();
            delay_ms(delay_time_ms);
            LED_GREEN_OFF();
        }
        else if (strcmp(color, "blue") == 0)
        {
            LED_BLUE_ON();
            delay_ms(delay_time_ms);
            LED_BLUE_OFF();
        }
        else
        {
            PRINTF("Error: Invalid color '%s'\r\n", color);
            return -1;
        }

        if (i < times - 1)
        {
            delay_ms(delay_time_ms);
        }
    }

    return 0;
}

/* clear command */
int shell_cmd_clear(int argc, char *argv[])
{
    /* Send ANSI escape sequence to clear screen */
    PRINTF("\033[2J\033[H");
    return 0;
}

/* version command */
int shell_cmd_version(int argc, char *argv[])
{
    PRINTF("\r\nSimple Shell v%s\r\n", SHELL_VERSION);
    PRINTF("MCUX SDK Version: %s\r\n", MCUXSDK_VERSION_FULL_STR);
    PRINTF("Compiled: %s %s\r\n", __DATE__, __TIME__);
    return 0;
}

/* info command */
int shell_cmd_info(int argc, char *argv[])
{
    PRINTF("\r\n=== System Information ===\r\n");
    PRINTF("Board: MCXA346\r\n");
    PRINTF("Shell: ysh v%s\r\n", SHELL_VERSION);
    PRINTF("Buffer size: %d bytes\r\n", SHELL_BUFFER_SIZE);
    PRINTF("Supported commands: %d\r\n", (int)(sizeof(shell_cmd_table)/sizeof(shell_cmd_table[0])) - 1);
    PRINTF("=======================\r\n");
    return 0;
}

/*******************************************************************************
 * Main Function
 ******************************************************************************/
int main(void)
{
    /* Define the init structure for the output LED pin*/
    gpio_pin_config_t led_config = {
        kGPIO_DigitalOutput,
        0,
    };

    /* Board pin, clock, debug console init */
    BOARD_InitHardware();

    /* Print welcome message */
    PRINTF("\r\n");
    PRINTF("MCUX SDK Version: %s\r\n", MCUXSDK_VERSION_FULL_STR);
    PRINTF("LED Control Shell Example\r\n");
    PRINTF("=====================================\r\n");

    /* Init output LED GPIO */
    GPIO_PinInit(BOARD_LED_GPIO, BOARD_LED_GPIO_PIN, &led_config);
    GPIO_PinInit(BOARD_LED_GPIO, BOARD_LED2_GPIO_PIN, &led_config);
    GPIO_PinInit(BOARD_LED_GPIO, BOARD_LED3_GPIO_PIN, &led_config);

    /* Initial state: all LEDs off */
    LED_RED_OFF();
    LED_GREEN_OFF();
    LED_BLUE_OFF();

    /* Initialize shell */
    shell_init();

    /* Run shell main loop */
    shell_run();

    return 0;
}

六、心得体会

从这个开发板功能的实现，深入理解了MCXA346开发板的硬件架构，掌握了GPIO控制和UART通信原理，学会了中断和轮询的实现方式，并学会了Shell系统设计

，理解了命令行解释器的工作原理，掌握了缓冲区管理和字符处理技巧，学会了模块化设计思想在嵌入式系统中的应用。
