Funpack第12期活动——任务二：天气预报仪

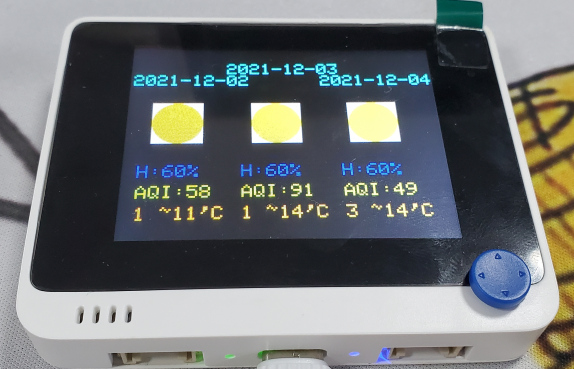

内容介绍

FnDLQdhMuYhKDB0JTy-VIX_UJZo0

简介

Wio Terminal的运行速度为 120MHz (最高可达200MHz), 4MB 外部闪存和 192KB RAM。

Wio Terminal自身配有一个2.4英寸 LCD屏幕, 板载IMU(LIS3DHTR)，麦克风，蜂鸣器，microSD卡槽，光传感器和940nm红外发射器。除了这些它还有两个用于Grove生态系统的多功能Grove接口和兼容Raspberry pi的40个GPIO引脚，用于支持更多附加组件。

FtRoKE1hPrB2AoOKX_kI_MeSaUKS

Fr4_iAfuwO9VzP8jbIzZlhXZwDpA

FkbipqfzxprjSz0Pxn1tMoiHAkuY

任务内容

任务二：
制作一个自动联网的天气预报仪，在设计界面显示温湿度、天气情况、空气质量以及未来三天内的天气变化

实现原理

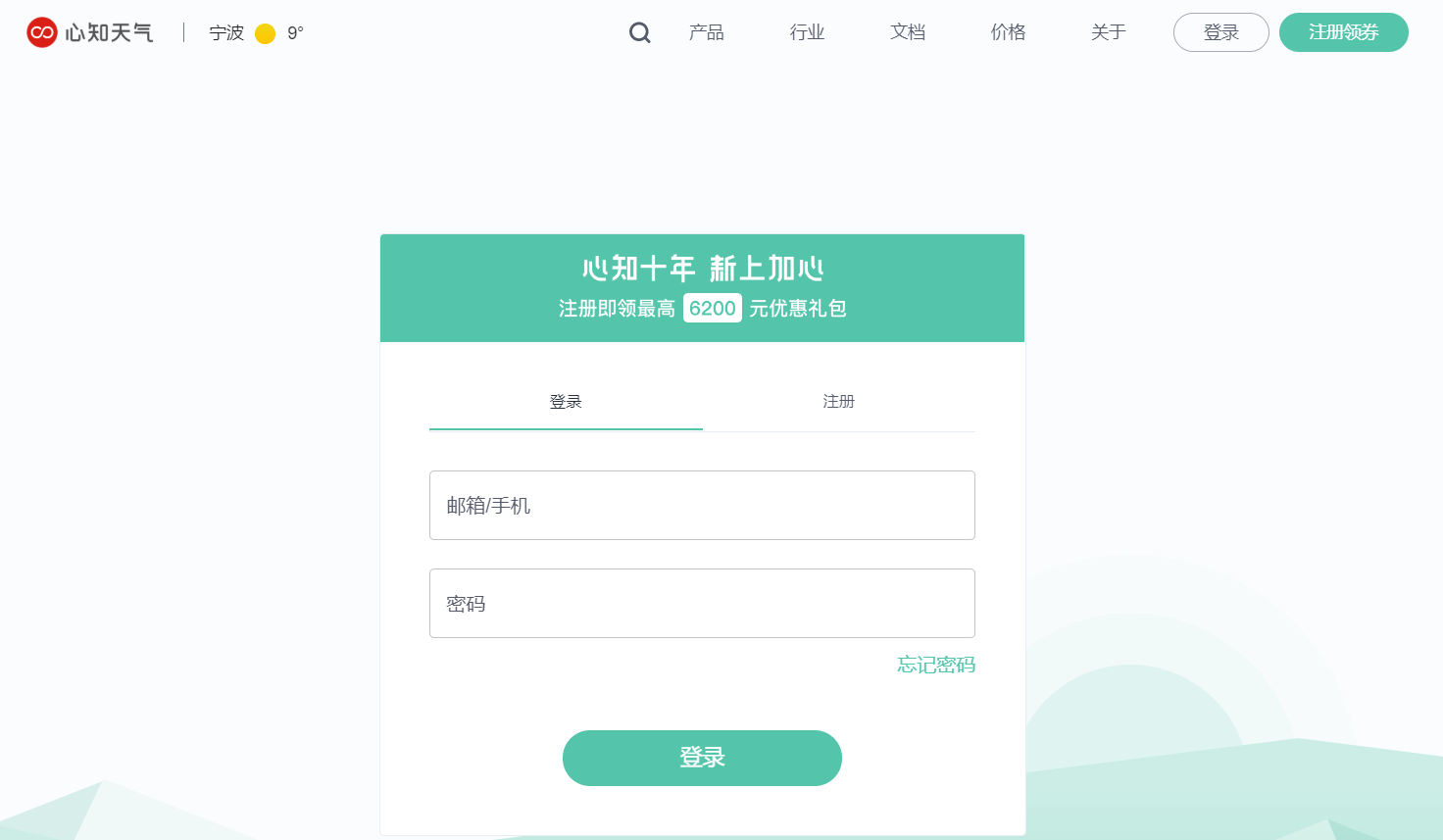

首先先去心知天气注册一个账号

FsfLslE-qBsaexhBJLH2dvRXCO6c

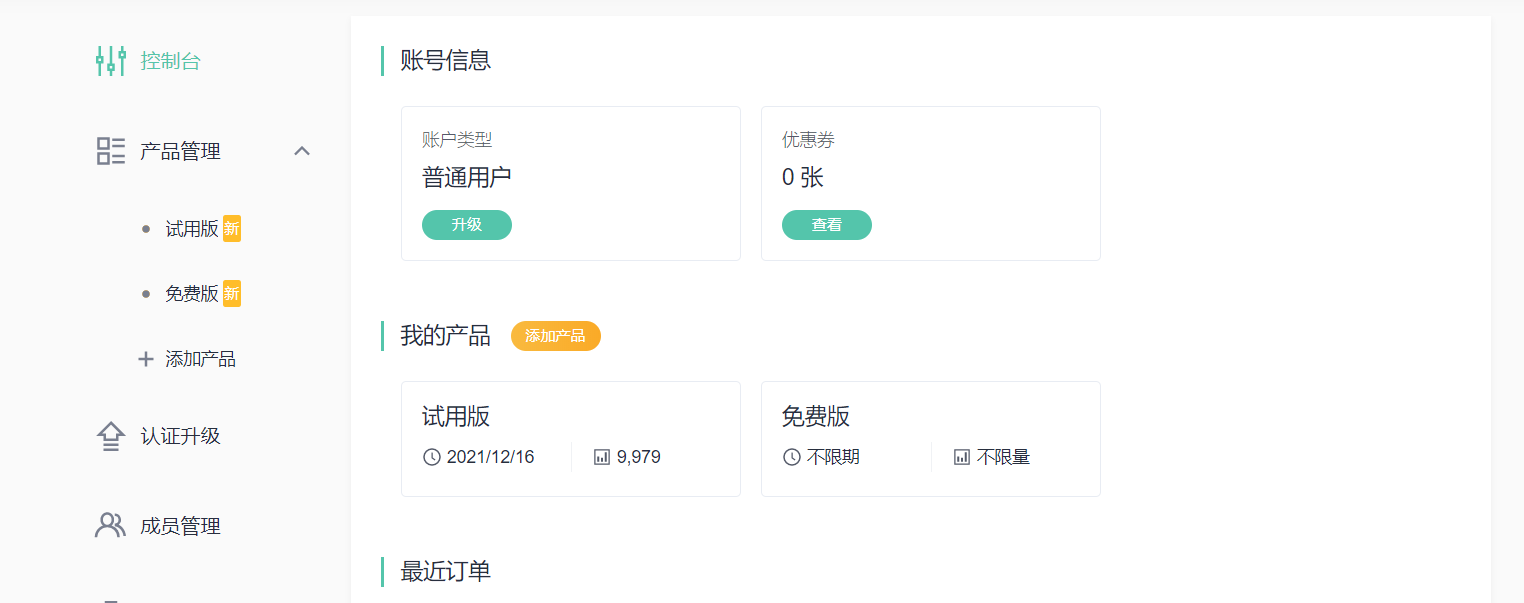

然后在控制台申请一个免费平台。试用版也行。

FglZm1FnnzsbhVsEMJElDCtFojFW

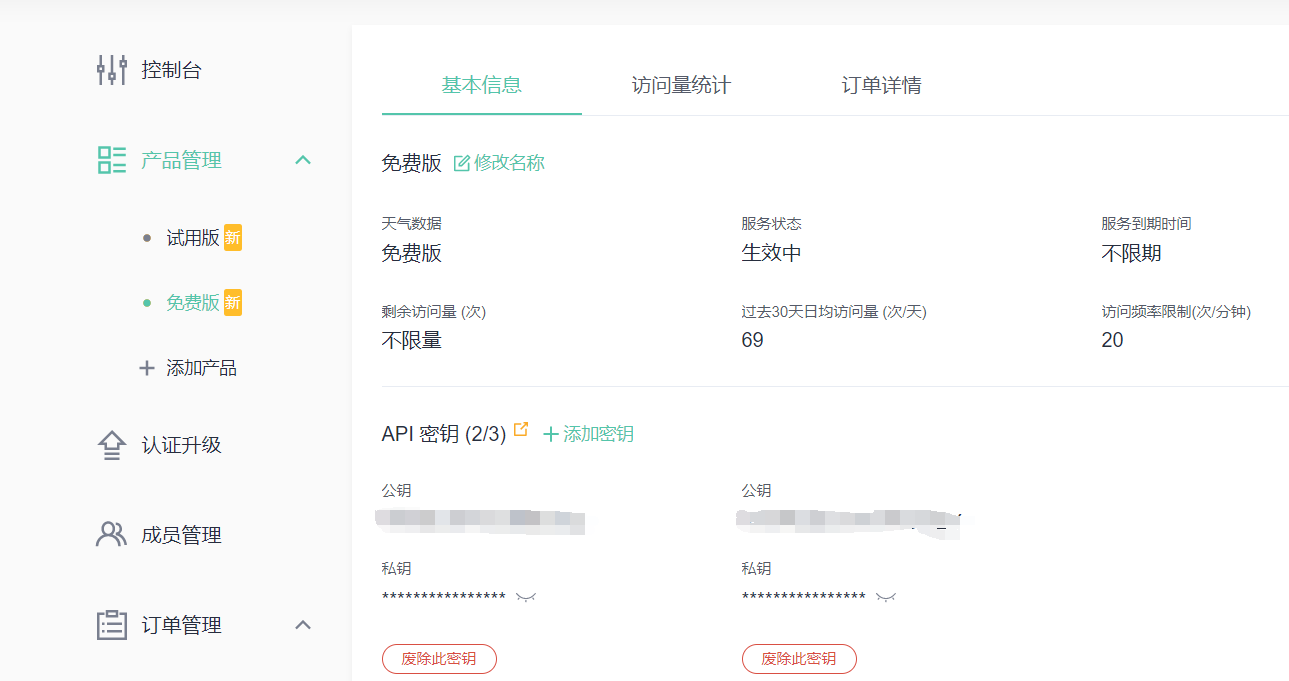

然后将密钥复制。

FoipdiwW8QGwmRBKJbIdzpnL9vqd

在Arduino里面填入密钥，就可以通过网络获取天气了。

代码

通过代码配置，初始化串口，WiFi，屏幕，定时器，之后连接心知天气的服务器，获取未来3天的温度和空气质量，获得数据后会关闭WiFi。当定时器计数到一定的时间之后，会再一次联网获取数据。

#include <TFT_eSPI.h>
#include "Seeed_FS.h"
#include "RawImage.h"
#include "Free_Fonts.h"
#include <Arduino.h>
#include <rpcWiFi.h>
#include <WiFiClientSecure.h>
#include <ArduinoJson.h>
#include <HTTPClient.h>
#include <TimerTC3.h>
TFT_eSPI tft;
//心知官网请求地址      // 私钥     免费（    ） 开发者（收费）：99/年  没钱买
//需要申请开发者平台才能获取空气质量       屏幕大小320*240
//h ttp://api.seniverse.com/v3/weather/daily.json?key=&location=ningbo&language=en&unit=c&start=0&days=3
//h ttp://api.seniverse.com/v3/air/now.json?key=&location=ningbo&language=en&scope=city
const char* ssid     = "9500S";                // 连接WiFi名
const char* password = "1234567890.";          // 连接WiFi密码
// 将要连接的服务器地址，只能http   不能https
String seniverse_Weather = "http://api.seniverse.com/v3/weather/daily.json?key=&location=ningbo&language=en&unit=c&start=0&days=3";
String seniverse_Air_Quality = "http://api.seniverse.com/v3/air/daily.json?key=&language=zh-Hans&location=ningbo";
String seniverse_Timer = "http://quan.suning.com/getSysTime.do";//这个是苏宁网站提供的网络授时

String One_date;//日期
String One_text_day;//白天天气现象文字
int One_code_day;//白天天气现象代码
String One_text_night;//晚间天气现象文字
int One_code_night;//晚间天气现象代码
String One_high;//当天最高温度
String One_low;//当天最低温度
String One_humidity;//相对湿度，0~100，单位为百分比

String Tow_date;//日期
String Two_text_day;//白天天气现象文字
int Two_code_day;//白天天气现象代码
String Two_text_night;//晚间天气现象文字
int Two_code_night;//晚间天气现象代码
String Two_high;//当天最高温度
String Two_low;//当天最低温度
String Two_humidity;//相对湿度，0~100，单位为百分比

String Three_date;//日期
String Three_text_day;//白天天气现象文字
int Three_code_day;//白天天气现象代码
String Three_text_night;//晚间天气现象文字
int Three_code_night;//晚间天气现象代码
String Three_high;//当天最高温度
String Three_low;//当天最低温度
String Three_humidity;//相对湿度，0~100，单位为百分比

String One_Aqi;//空气质量
String Two_Aqi;//空气质量
String Three_Aqi;//空气质量

int timer_x = 0;
bool isLEDOn = false;

#define One_X 26
#define One_Y 75

#define Two_X 126
#define Two_Y 75

#define Three_X 226
#define Three_Y 75

void Weather(void);
void Air_Quality(void);
void WiFi_Init(void);
void Tft_Lcd(void);
//未来3天天气
void Weather(void)
{
  HTTPClient http;
  DynamicJsonDocument doc(4096);
  http.begin(seniverse_Weather);
  int httpCode = http.GET();
  if(httpCode > 0)
  {
    Serial.printf("HTTP Get Code: %d\r\n", httpCode);
    if(httpCode == HTTP_CODE_OK)
    {
      String resBuff = http.getString();
      Serial.println(resBuff);
      deserializeJson(doc, resBuff); //开始使用Json解析
      One_date = doc["results"][0]["daily"][0]["date"].as<String>();
      One_text_day = doc["results"][0]["daily"][0]["text_day"].as<String>();
      One_code_day = doc["results"][0]["daily"][0]["code_day"].as<int>();
      One_text_night = doc["results"][0]["daily"][0]["text_night"].as<String>();
      One_code_night = doc["results"][0]["daily"][0]["code_night"].as<int>();
      One_high = doc["results"][0]["daily"][0]["high"].as<String>();
      One_low = doc["results"][0]["daily"][0]["low"].as<String>();
      One_humidity = doc["results"][0]["daily"][0]["humidity"].as<String>();
      Serial.println("1");
//      String One_text_day_11111 = doc["results"][0]["daily"][0]["text_day"].as<int>();
    }
  }else
  {
    Serial.printf("HTTP Get Error: %s\n", http.errorToString(httpCode).c_str());
  }
  http.end();
}
//空气质量
void Air_Quality(void)
{
  HTTPClient http1;
  DynamicJsonDocument doc(2048);
  http1.begin(seniverse_Air_Quality);
  int httpCode1 = http1.GET();
  Serial.println(httpCode1);
  if(httpCode1 > 0)
  {
    Serial.printf("HTTP Get Code: %d\r\n", httpCode1);
    if(httpCode1 == HTTP_CODE_OK)
    {
      String resBuff1 = http1.getString();
      Serial.println(resBuff1);
      deserializeJson(doc, resBuff1); //开始使用Json解析
      One_Aqi = doc["results"][0]["daily"][0]["aqi"].as<String>();
      Two_Aqi = doc["results"][0]["daily"][1]["aqi"].as<String>();
      Three_Aqi = doc["results"][0]["daily"][2]["aqi"].as<String>();
//      String One_text_day_11111 = doc["results"][0]["daily"][0]["text_day"].as<String>();
    }
  }else
  {
    Serial.printf("HTTP Get Error: %s\n", http1.errorToString(httpCode1).c_str());
  }
  http1.end();
}

void WiFi_Init(void)
{
  Serial.print("Attempting to connect to SSID: ");
  Serial.println(ssid);
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    Serial.print(".");
    delay(1000);
  }
  while (WiFi.status() != WL_CONNECTED) {
    Serial.print(".");
    delay(1000);
  }
  Serial.print("Connected to ");
  Serial.println(ssid);
}

void Tft_Lcd(void){

  int One_text_day_tast = One_code_day;//当天的白天代码
  int Two_text_day_tast = Two_code_day;//当天的白天代码
  int Three_text_day_tast = Three_code_day;//当天的白天代码

  String One_date_tast = One_date;//当天的日期
  String One_high_tast = One_high;//当天最高温度
  String One_low_tast = One_low;//当天最低温度
  String One_humidity_tast = One_humidity;//相对湿度，0~100，单位为百分比

  String One_Aqi_tast = One_Aqi;//空气质量
  String Two_Aqi_tast = Two_Aqi;//空气质量
  String Three_Aqi_tast = Three_Aqi;//空气质量

//  Serial.println(One_text_day_tast);
  switch(One_text_day_tast){
    case 0:drawImage<uint16_t>("Sunny.bmp", One_X, One_Y);break;
    case 1:drawImage<uint16_t>("Clear.bmp", One_X, One_Y);break;
    case 4:drawImage<uint16_t>("Cloudy.bmp", One_X, One_Y);break;
    case 5:drawImage<uint16_t>("SunnyCloudy.bmp", One_X, One_Y);break;
    case 6:drawImage<uint16_t>("ClearCloudy.bmp", One_X, One_Y);break;
    case 7:drawImage<uint16_t>("SunnyCloudy.bmp", One_X, One_Y);break;
    case 8:drawImage<uint16_t>("ClearCloudy.bmp", One_X, One_Y);break;
    case 9:drawImage<uint16_t>("Overcast.bmp", One_X, One_Y);break;
    case 10:drawImage<uint16_t>("Shower.bmp", One_X, One_Y);break;
    case 11:drawImage<uint16_t>("Thundershower.bmp", One_X, One_Y);break;
    case 12:drawImage<uint16_t>("ThundershowerwithHail.bmp", One_X, One_Y);break;
    case 13:drawImage<uint16_t>("LightRain.bmp", One_X, One_Y);break;
    case 14:drawImage<uint16_t>("ModerateRain.bmp", One_X, One_Y);break;
    case 15:drawImage<uint16_t>("HeavyRain.bmp", One_X, One_Y);break;
    case 16:drawImage<uint16_t>("HeavyRain.bmp", One_X, One_Y);break;
    case 17:drawImage<uint16_t>("HeavyStorm.bmp", One_X, One_Y);break;
    case 18:drawImage<uint16_t>("HeavyStorm.bmp", One_X, One_Y);break;
    case 19:drawImage<uint16_t>("IceRain.bmp", One_X, One_Y);break;
    case 20:drawImage<uint16_t>("Sleet.bmp", One_X, One_Y);break;
    case 21:drawImage<uint16_t>("SnowFlurry.bmp", One_X, One_Y);break;
    case 22:drawImage<uint16_t>("LightSnow.bmp", One_X, One_Y);break;
    case 23:drawImage<uint16_t>("ModerateSnow.bmp", One_X, One_Y);break;
    case 24:drawImage<uint16_t>("HeavySnow.bmp", One_X, One_Y);break;
    case 25:drawImage<uint16_t>("Snowstorm.bmp", One_X, One_Y);break;
  }
  tft.setTextSize(2);//字体大小
  tft.setTextColor(TFT_CYAN); //字体颜色
  tft.drawString(One_date_tast,5,37);//One_date_tast
  tft.drawString(Tow_date_tast,101,21);//Tow_date_tast
  tft.drawString(Three_date_tast,200,37);//Three_date_tast
  //温度
//  tft.setFreeFont(FS12); //select Free, Serif, 12pt.
  tft.setTextColor(TFT_ORANGE); //字体颜色
  tft.drawString(One_low_tast,15,200);//One_low_tast
  tft.drawString("~",39,200);
  tft.drawString(One_high_tast,51,200);//One_high_tast
  tft.drawString("'C",75,200);

  tft.drawString(Two_low_tast,115,200);
  tft.drawString("~",139,200);
  tft.drawString(Two_high_tast,151,200);
  tft.drawString("'C",175,200);

  tft.drawString(Three_low_tast,215,200);
  tft.drawString("~",239,200);
  tft.drawString(Three_high_tast,251,200);
  tft.drawString("'C",275,200);
  //空气质量
  tft.setTextColor(TFT_GREENYELLOW); //字体颜色
  tft.drawString("AQI:",15,176);
  tft.drawString(One_Aqi_tast,63,176);

  tft.drawString("AQI:",115,176);
  tft.drawString(Two_Aqi_tast,163,176);

  tft.drawString("AQI:",215,176);
  tft.drawString(Three_Aqi_tast,263,176);
  //湿度
  tft.setTextColor(TFT_BLUE); //字体颜色
  tft.drawString("H:",15,152);//One_low_tast
  tft.drawString("60",39,152);
  tft.drawString("%",63,152);//One_low_tast

  tft.drawString("H:",115,152);//One_low_tast
  tft.drawString("60",139,152);
  tft.drawString("%",163,152);//One_low_tast

  tft.drawString("H:",215,152);//One_low_tast
  tft.drawString("60",239,152);
  tft.drawString("%",263,152);//One_low_tast
}

void timerIsr(){
  timer_x++;
  if(timer_x == 3600){
    timer_x = 0;
    Weather();
    delay(1000);
    Air_Quality();
    Tft_Lcd();
  }
  digitalWrite(13, isLEDOn);
  isLEDOn = !isLEDOn;
}

总结

通过本次任务，学会了如何使用该开发板，学习了JSON，学习了Arduino，学习了通过网络获取数据。
