1、功能要求
上电开机显示PWM Music Player，按下任意按键时，会根据对应的设定播放不同音调，按键是通过ADC进行判断是哪一个按键按下的，再通过PWM驱动蜂鸣器播放不同音调，并支持按键切换歌曲和OLED显示曲名，使用的是CircuitPython固件代码。代码中按键消抖、PWM控制、OLED显示和音频播放逻辑。
2、硬件引脚
蜂鸣器：PWM输出引脚：GP20（驱动）,frequency=44000
按键：ADC引脚GP47（通过ADC检测按键，需配置为电阻分压模式）
按键工作电压分别是1.6V,2.5V,2.75V，3.0V
OLED SPI引脚：
SCK: 45,MOSI: 44,RES: 43,DC: 42,CS: 41.

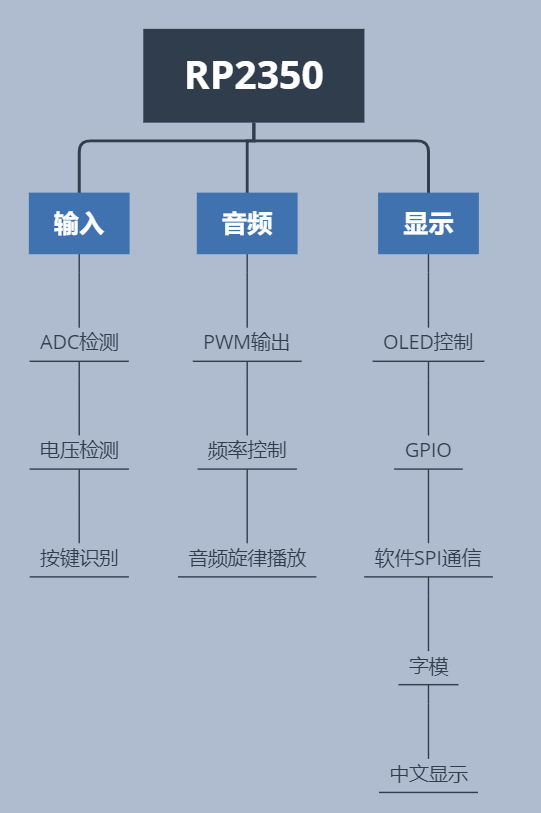

3、软件框架图
4、代码：
下面的代码是音频音调
# 音符频率（Hz）
notes = {
'C4': 262, 'D4': 294, 'E4': 330, 'F4': 349,
'G4': 392, 'A4': 440, 'B4': 494,
'C5': 523, 'D5': 587, 'E5': 659, 'F5': 698,
'G5': 784, ' ': 0
}
# 生日快乐
melody_birthday = [
'G4', 'G4', 'A4', 'G4', 'C5', 'B4', ' ', ' ',
'G4', 'G4', 'A4', 'G4', 'D5', 'C5', ' ', ' ',
'G4', 'G4', 'G5', 'E5', 'C5', 'B4', 'A4', ' ',
'F5', 'F5', 'E5', 'C5', 'D5', 'C5', ' ', ' '
]
# 欢乐颂
melody_joy = [
'E4', 'E4', 'F4', 'G4', 'G4', 'F4', 'E4', 'D4',
'C4', 'C4', 'D4', 'E4', 'E4', 'D4', 'D4', ' ',
'E4', 'E4', 'F4', 'G4', 'G4', 'F4', 'E4', 'D4',
'C4', 'C4', 'D4', 'E4', 'D4', 'C4', 'C4', ' '
]
# 两只老虎
melody_tiger = [
'C4', 'D4', 'E4', 'C4', 'C4', 'D4', 'E4', 'C4',
'E4', 'F4', 'G4', 'E4', 'F4', 'G4', ' ', ' ',
'G4', 'A4', 'G4', 'F4', 'E4', 'C4', 'G4', 'A4', 'G4', 'F4', 'E4', 'C4', ' ',
'C4', 'C4', 'C4', ' ', 'C4', 'C4', 'C4', ' '
]
PWM引脚与ADC相关的代码
# 蜂鸣器PWM输出 - 使用GP20
buzzer = pwmio.PWMOut(board.GP20, duty_cycle=0, frequency=44000, variable_frequency=True)
# 初始化ADC用于按钮检测
adc = analogio.AnalogIn(board.GP47)
# 按键ADC值范围 (根据实际测量调整)
BUTTON_RANGES = [
(10000, 20000), # 按钮0 (停止)
(30500, 32000), # 按钮1 (歌曲1)
(30500, 33000), # 按钮2 (歌曲2)
(30500, 34000) # 按钮3 (歌曲3)
]
软件SPI代码和OLED
class SoftSPI:
def __init__(self, sck, mosi, miso=None):
self.sck = digitalio.DigitalInOut(sck)
self.mosi = digitalio.DigitalInOut(mosi)
self.sck.direction = digitalio.Direction.OUTPUT
self.mosi.direction = digitalio.Direction.OUTPUT
self._locked = False
def configure(self, **kwargs):
return self
def try_lock(self):
if not self._locked:
self._locked = True
return True
return False
def unlock(self):
self._locked = False
def write(self, buffer):
for byte in buffer:
for i in [7,6,5,4,3,2,1,0]: # MSB优先
self.sck.value = False
self.mosi.value = (byte >> i) & 0x01
self.sck.value = True
# 初始化OLED引脚
dc_pin = digitalio.DigitalInOut(board.GP42)
reset_pin = digitalio.DigitalInOut(board.GP43)
cs_pin = digitalio.DigitalInOut(board.GP41)
# 创建软件SPI对象
spi = SoftSPI(board.GP45, board.GP44) # sck, mosi
# 初始化OLED
oled = SSD1306_SPI(
width=128,
height=32,
spi=spi,
dc=dc_pin,
cs=cs_pin,
reset=reset_pin
)
显示字体代码
FONT_SHENG = [
0x01,0x00,0x11,0x00,0x11,0x00,0x11,0x00,
0x3F,0xFC,0x21,0x00,0x41,0x00,0x81,0x00,
0x01,0x00,0x3F,0xF8,0x01,0x00,0x01,0x00,
0x01,0x00,0x01,0x00,0xFF,0xFE,0x00,0x00
] # 生
FONT_RI = [
0x00,0x00,0x1F,0xF0,0x10,0x10,0x10,0x10,
0x10,0x10,0x10,0x10,0x10,0x10,0x1F,0xF0,
0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,
0x10,0x10,0x10,0x10,0x1F,0xF0,0x10,0x10
] # 日
FONT_KUAI = [
0x10,0x40,0x10,0x40,0x10,0x40,0x13,0xF8,
0x18,0x48,0x54,0x48,0x50,0x48,0x50,0x48,
0x97,0xFE,0x10,0x40,0x10,0xA0,0x10,0xA0,
0x11,0x10,0x11,0x10,0x12,0x08,0x14,0x06
] # 快
FONT_LE = [
0x00,0x20,0x00,0xF0,0x1F,0x00,0x10,0x00,
0x11,0x00,0x21,0x00,0x21,0x00,0x3F,0xFC,
0x01,0x00,0x09,0x20,0x09,0x10,0x11,0x08,
0x21,0x04,0x41,0x04,0x05,0x00,0x02,0x00
] # 乐
FONT_HUAN = [
0x00,0x00,0x1F,0xF0,0x10,0x10,0x10,0x10,
0x1F,0xF0,0x10,0x10,0x10,0x10,0x1F,0xF0,
0x10,0x10,0x10,0x10,0x1F,0xF0,0x10,0x10,
0x10,0x10,0x1F,0xF0,0x10,0x10,0x00,0x00
] # 欢
FONT_SONG = [
0x00,0x00,0x3F,0xF8,0x20,0x08,0x20,0x08,
0x3F,0xF8,0x20,0x08,0x20,0x08,0x3F,0xF8,
0x20,0x08,0x20,0x08,0x3F,0xF8,0x20,0x08,
0x20,0x08,0x3F,0xF8,0x20,0x08,0x00,0x00
] # 颂
FONT_LIANG = [
0x00,0x00,0x3F,0xF8,0x20,0x08,0x20,0x08,
0x20,0x08,0x20,0x08,0x20,0x08,0x20,0x08,
0x20,0x08,0x20,0x08,0x20,0x08,0x20,0x08,
0x20,0x08,0x3F,0xF8,0x20,0x08,0x00,0x00
] # 两
FONT_ZHI = [
0x00,0x00,0x1F,0xF0,0x10,0x10,0x10,0x10,
0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,
0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,
0x10,0x10,0x1F,0xF0,0x10,0x10,0x00,0x00
] # 只
FONT_LAO = [
0x00,0x00,0x1F,0xF0,0x10,0x10,0x10,0x10,
0x10,0x10,0x1F,0xF0,0x10,0x10,0x10,0x10,
0x10,0x10,0x1F,0xF0,0x10,0x10,0x10,0x10,
0x10,0x10,0x1F,0xF0,0x10,0x10,0x00,0x00
] # 老
FONT_HU = [
0x00,0x00,0x3F,0xF8,0x20,0x08,0x20,0x08,
0x20,0x08,0x3F,0xF8,0x20,0x08,0x20,0x08,
0x20,0x08,0x3F,0xF8,0x20,0x08,0x20,0x08,
0x20,0x08,0x3F,0xF8,0x20,0x08,0x00,0x00
] # 虎
主循环代码
# 主循环
def main():
current_song = 0 # 0=停止, 1=生日, 2=欢乐颂, 3=两只老虎
is_playing = False
last_button = None
# 初始显示
show_song_title(current_song)
while True:
button = get_button_pressed()
if button is not None and button != last_button:
last_button = button
if button == 0: # 停止
stop_music()
current_song = 0
is_playing = False
print("音乐停止")
elif button == 1: # 生日快乐
stop_music()
current_song = 1
is_playing = True
print("播放生日快乐")
elif button == 2: # 欢乐颂
stop_music()
current_song = 2
is_playing = True
print("播放欢乐颂")
elif button == 3: # 两只老虎
stop_music()
current_song = 3
is_playing = True
print("播放两只老虎")
show_song_title(current_song)
# 播放音乐
if is_playing:
if current_song == 1:
play_song(melody_birthday)
elif current_song == 2:
play_song(melody_joy)
elif current_song == 3:
play_song(melody_tiger)
time.sleep(0.1)
if __name__ == "__main__":
main()
OLED初始化：使用SPI接口初始化OLED屏幕，显示“PWM Music Player”和当前播放歌曲名。
PWM输出：通过GP20引脚输出PWM信号驱动蜂鸣器。
按键检测：通过ADC检测按键值，使用debounce_key函数实现消抖。
4、文字取模

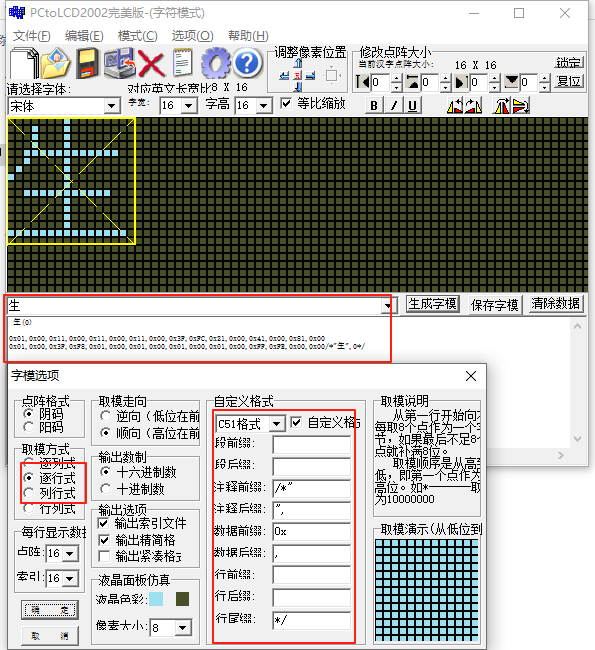

取模方式更改为逐行式，尺寸为16*16，格式需要为C51,取模走向为顺向。

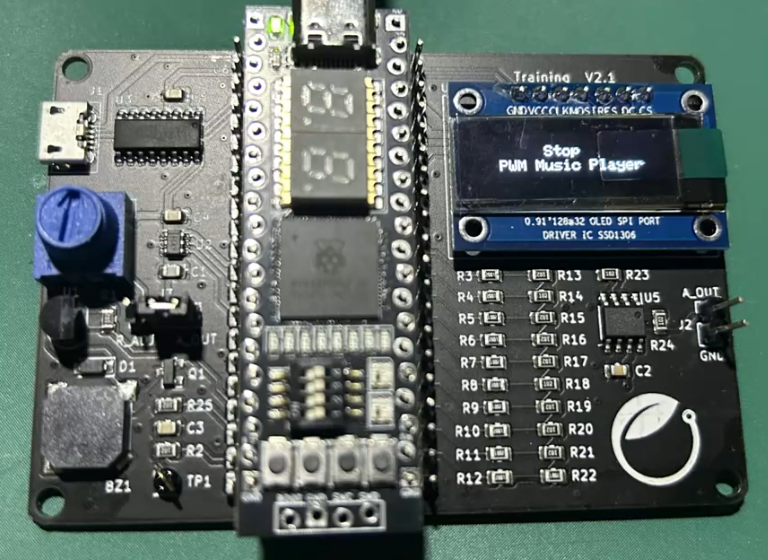

5.演示操作图
待机界面

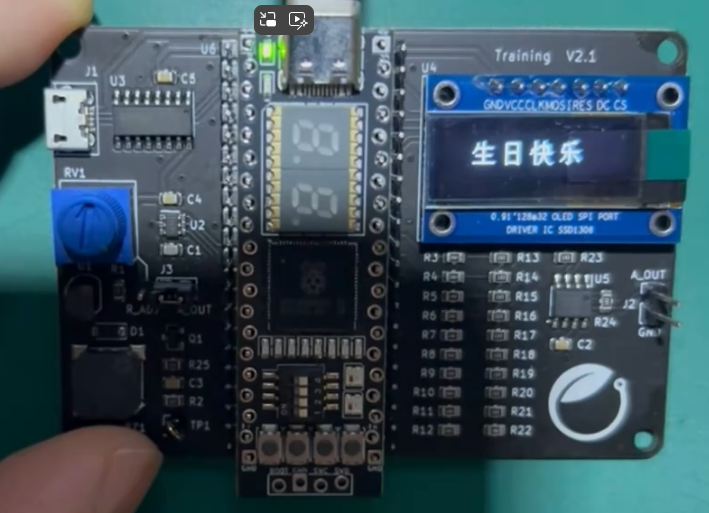

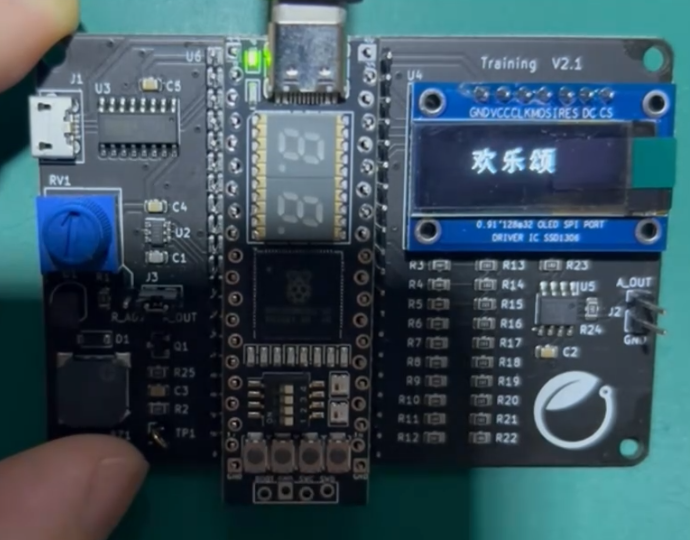

播放音频欢乐颂

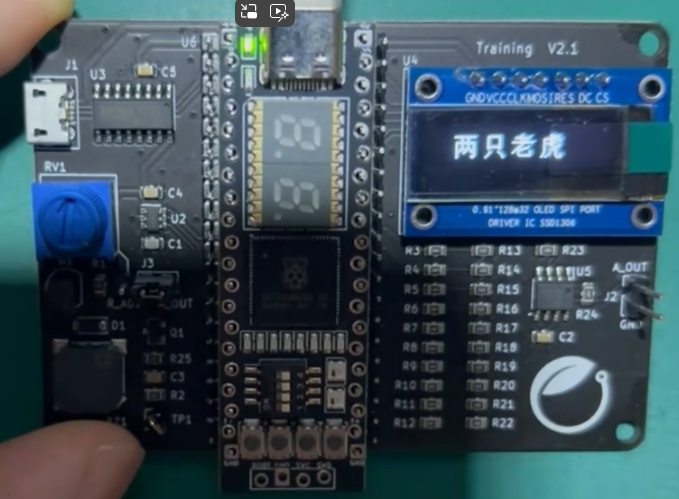

播放音频两只老虎
播放生日快乐

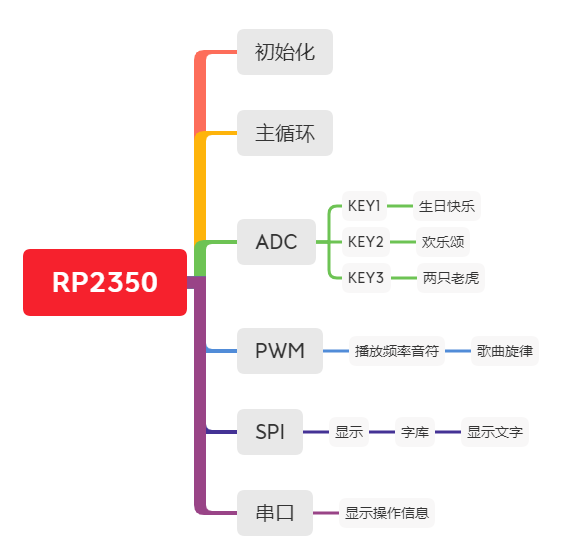

6.设计流程
总结：
从这个任务，其实我从中还是学到了不少的东西，特别是软件SPI，这个之前我一直在研究，连屏都点不亮，最终是朋友的指导，细心的讲解了要点，才把屏驱动 起来，其次是这个音调，从来没有想过，用2350这个能实现音频声音的发出，只听说过能用蜂鸣器能播放音乐，没想到自己也能实现，总的来说还是收获满满，又前进了一小步。
