项目介绍
本项目依托Funpack3-5活动，基于beagle bone black开发板的PRU硬件，实现beagle bone black读取按键状态，并逐渐增大LED灯闪烁周期的功能。当LED灯闪烁周期增大到特定值时，自动恢复默认值。
项目任务（此处选择任务一）
任务1：点灯！使用PRU控制一个LED实现呼吸灯，并且使用一个按键按下后切换闪烁的速度
设计思路
使用bbb-pru-examples作为底层框架，结合example程序，自行测试融合项目任务所需相关要求的功能代码。项目中使用到了按键采集以及LED灯控制等功能。当然开发过程并不是一帆风顺，多多少少会有一些小坑，这些坑我会在结尾总结。
参考资料网址链接：https://github.com/ejthesnaar/bbb-pru-examples
因PRU无法直接输出PWM信号，此处使用了软件模拟的方式（快速交替点亮与关闭LED灯）实现的呼吸灯的效果。在总体运行周期不变的情况下，通过逐周期增加LED灯点亮时间的占比达到灯逐渐变亮的效果，同理，当灯完全点亮时，再逐周期降低灯点亮的时间，以达到LED灯逐渐熄灭的效果。
以上即为设计思路。具体软件流程后面详细介绍。
硬件介绍
BeagleBone® Black 是一款面向开发人员和业余爱好者的低成本、高扩展、并有社区支持的开发平台。处理器选用了TI AM3358芯片，基于ARM Cortex-A8架构处理器。还配备了丰富的扩展资源，包括HDMI接口、以太网、SD 卡槽、并预留了足够多的管脚用于AD转换、LCD显示屏、PWM输出、I2C、串口等等。板卡可运行完整的 Linux 系统，且支持多种编程语言。
BeagleBone Black 采用 TI 的 Sitara™ AM3359 ARM Cortex™-A8 微处理器，运行速度为 1 GHz (2000 DMIPS)，远超 Raspberry Pi 板上的 720 MHz 器件。 最值得注意的是，除了 400 MHz 的 512 MB DDR3 外 Black 还配备了 2 GB 板载闪存。 板上还有一个 D 型 HDMI 微型连接器、以太网和 USB 端口，采用 5 VDC 单电源。 电流消耗仅 250 mA，因此还可采用 USB 供电。
在软件方面，Black 预装了众多软件，随时可以启动。 仅需连接电源、HDMI、以太网和 USB 键盘/鼠标，该板即能引导 Angstrom Linux 发行版，为您呈现 Gnome 桌面。 4 个用户 LED (USR0 - 3) 在引导过程中会闪烁，用于指示活动状态。 从随附的 Chromium、Firefox 和 Epiphany 浏览器中选定一个后，您在数秒后就可体验网上冲浪。 该板与 Raspberry Pi 不同，在初次运行前不需要添加 SD 闪存卡，也不需要象杂耍似得下载 Linux 发行版。 对于大多数开发人员和爱好者来说，尽管 Angstrom Linux 适合他们，但基于 Cortex-A8 的设备采用了 ARM v7 架构，因此 Black 也可运行 Ubuntu 或者 Android 系统。 Linux 在开发板上的另一个用途是通过以太网接口实现的更多连接功能。 因此，除了能连接 Black 的专用网络服务器外，使用 FTP、SSH、Telnet 和其他远程访问服务还提高了连接灵活性。
收到开发板后，可根据自己需要选择是否升级系统镜像。
https://www.beagleboard.org/distros/am335x-11-7-2023-09-02-4gb-emmc-iot-flasher
我使用的是IOT版本的镜像，相较于XFCE版本的镜像，用户可用磁盘空间相对较大。
相关指导链接
https://docs.beagleboard.org/intro/beagle101/blinkLED.html
https://docs.beagleboard.org/books/beaglebone-cookbook/index.html#bone-cook-book-home
使用以下命令开启vscode编辑器
sudo systemctl start bb-code-server
sudo systemctl start bb-code-server
sudo systemctl add-wants multi-user.target bb-code-server
安装相关软件包
sudo apt install flex bison gcc gcc-pru gnuprumcu cmake
PRU权限设置（这个很重要， 具体指导可点击链接https://docs.beagleboard.org/books/pru-cookbook/02start/start.html）
sudo chown debian:debian /lib/firmware/am335x-pru*
开源库下载
https://github.com/ejthesnaar/bbb-pru-examples.git
安装好之后就可以编写代码了。

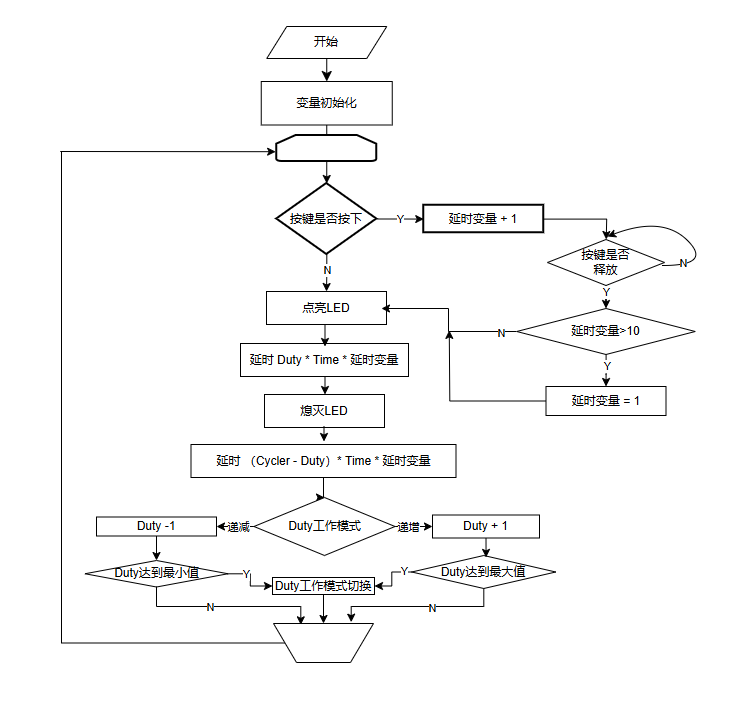

软件流程逻辑图

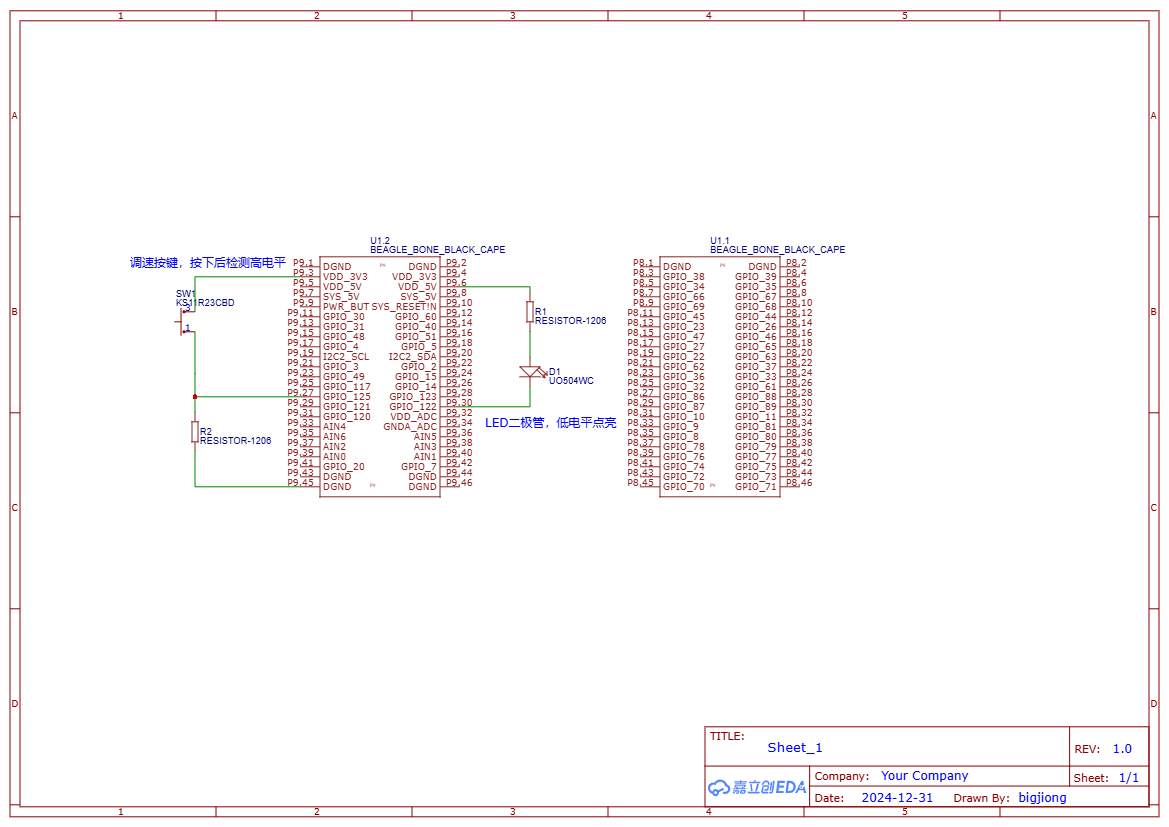

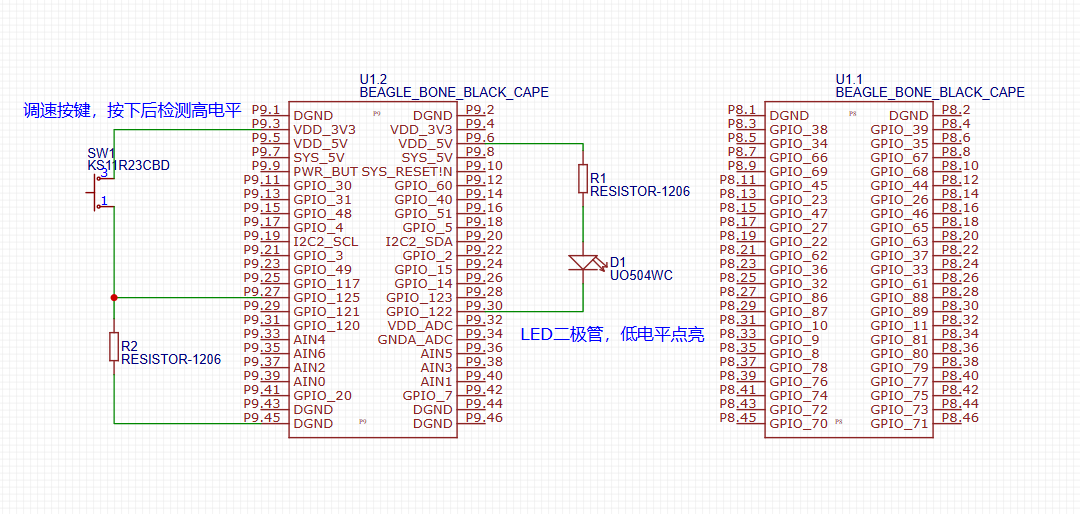

硬件连接原理图
P9_27(GPIO_125) --> 连接按键
P9_30(GPIO_112) --> 连接LED灯
功能展示

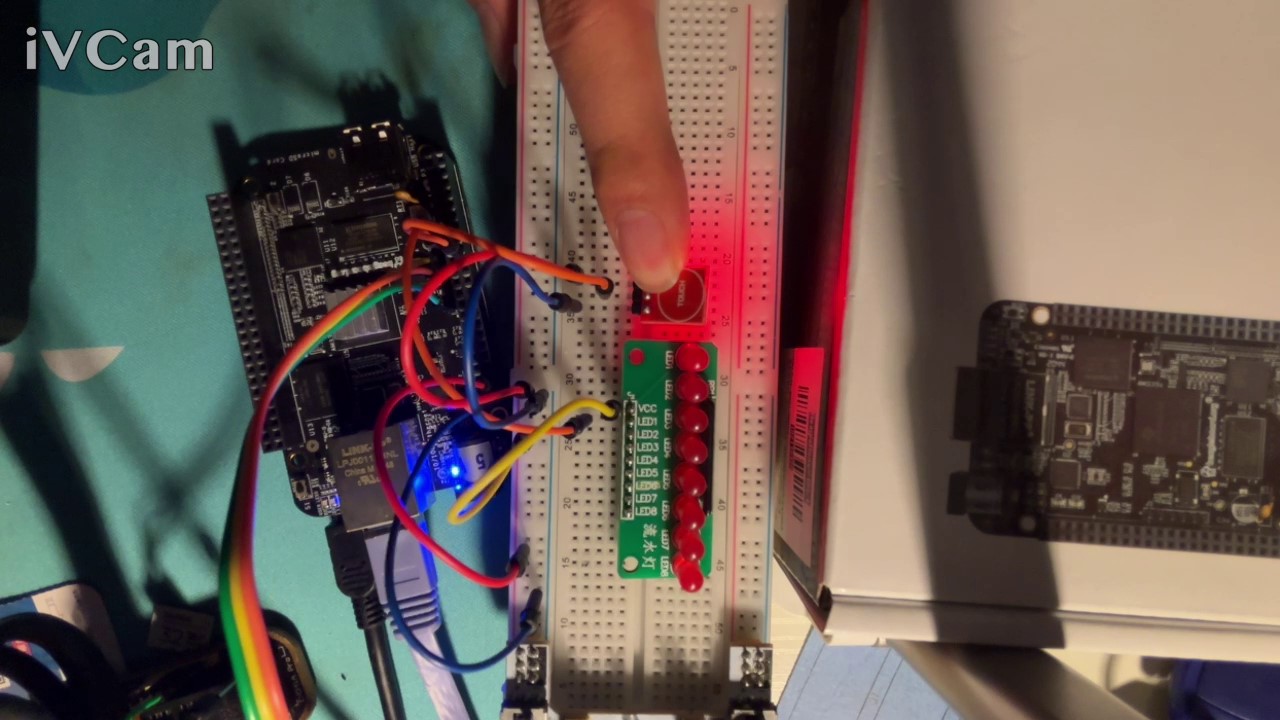

LED灯熄灭

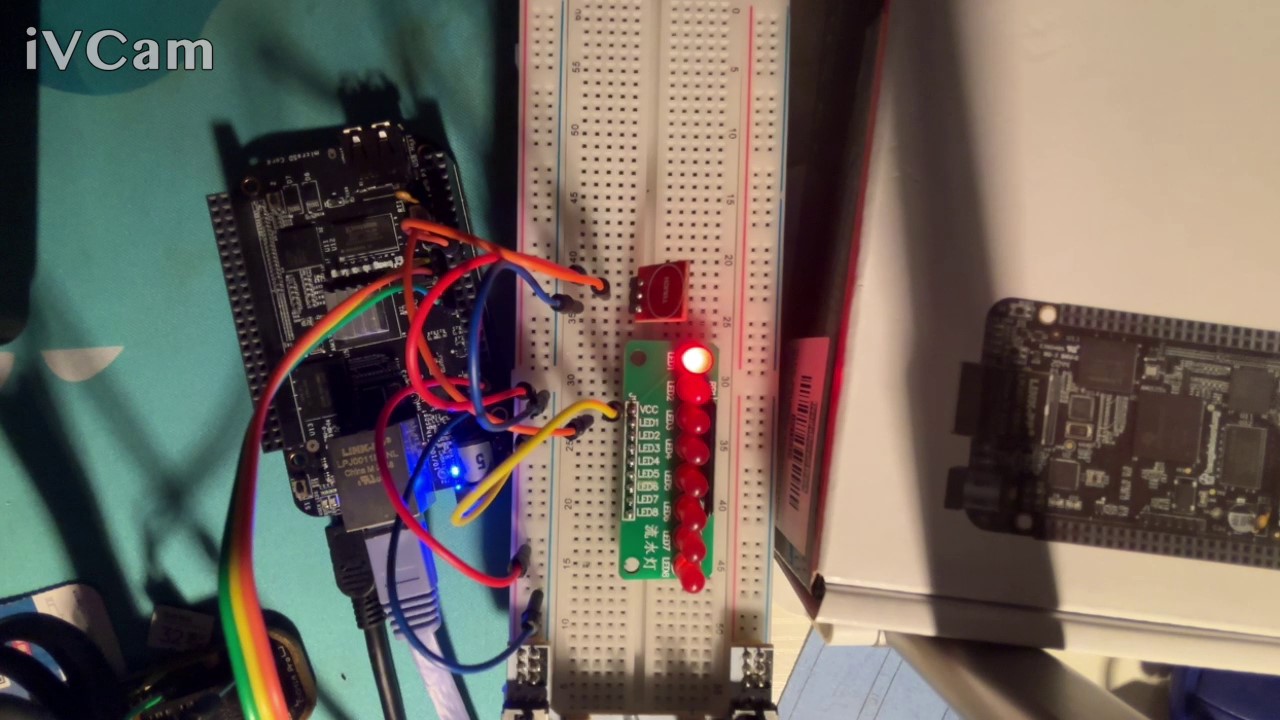

LED灯点亮
LED灯闪烁中间状态（亮度不高）
主要代码片段
/*
* Source Modified by Emile Thesnaar <emilethes@gmail.com>
* Based on modifications by Zubeen Tolani <zeekhuge@gmail.com>
* Based on the examples distributed by TI
*
* Copyright (C) 2015 Texas Instruments Incorporated - http://www.ti.com/
*
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*
* * Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
*
* * Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the
* distribution.
*
* * Neither the name of Texas Instruments Incorporated nor the names of
* its contributors may be used to endorse or promote products derived
* from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
* "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
* LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
* A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
* OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
* LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
* DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
* THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
* OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/
#include <stdint.h>
#include <pru_cfg.h>
#include "resource_table_empty.h"
volatile register uint32_t __R30;
volatile register uint32_t __R31;
/* control the led breath cycler time */
int stepCount = 1;
/* for led breath use */
int blinkDir = 1;
int dutyCount = 1;
int cyclerCount = 1000;
/* middle value */
int delayCount = 0;
void main(void)
{
volatile uint32_t gpio;
volatile uint32_t gpio_key;
/* Clear SYSCFG[STANDBY_INIT] to enable OCP master port */
CT_CFG.SYSCFG_bit.STANDBY_INIT = 0;
/* Toggle GPO 7. For PRU 0 this is P9_25 */
gpio = 0x0004;
/* gpio key 5. For PRU 0 this is P9_27*/
gpio_key = 0x0020;
/* Toggle indefinitely at 1 Hz*/
/*
100,000,000
*/
while (1) {
int i = 0;
if (__R31 & gpio_key)
{
while (__R31 & gpio_key)
{
__delay_cycles(1);
}
stepCount = stepCount + 1;
if (stepCount > 10)
{
stepCount = 1;
}
}
/* led on */
__R30 ^= gpio;
delayCount = dutyCount * stepCount * 3;
for(i=0; i<delayCount; i++)
{
__delay_cycles(1);
}
/* led off */
__R30 ^= gpio;
delayCount = (cyclerCount - dutyCount) * stepCount * 3;
for(i=0; i<delayCount; i++)
{
__delay_cycles(1);
}
if (blinkDir)
{
dutyCount = dutyCount + 1;
if (dutyCount >= cyclerCount)
{
blinkDir = 0;
}
}
else
{
dutyCount = dutyCount - 1;
if (dutyCount == 0)
{
blinkDir = 1;
}
}
}
}
#! /bin/bash
##############################################################################
#
# Copyright (C) 2018 Emile Thesnaar <emilethes@gmail.com>
#
#
# Redistribution and use in source and binary forms, with or without
# modification, are permitted provided that the following conditions
# are met:
#
# * Redistributions of source code must retain the above copyright
# notice, this list of conditions and the following disclaimer.
#
# * Redistributions in binary form must reproduce the above copyright
# notice, this list of conditions and the following disclaimer in the
# documentation and/or other materials provided with the
# distribution
#
#
# THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
# "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
# LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
# A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
# OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
# SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
# LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
# DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
# THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
# (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
# OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
#
#############################################################################
# Clean outputs, then build.
make clean
make
# Stop PRU0
sudo sh -c 'echo stop > /sys/class/remoteproc/remoteproc1/state'
# Load firmware
sudo cp gen/*.out /lib/firmware/am335x-pru0-fw
# Configure pin
config-pin P9_30 pruout
config-pin -q P9_30
config-pin P9_27 pruin
config-pin -q P9_27
# Start PRU 0 (remoteproc1 = PRU 0)
sudo sh -c 'echo am335x-pru0-fw > /sys/class/remoteproc/remoteproc1/firmware'
sudo sh -c 'echo start > /sys/class/remoteproc/remoteproc1/state'
echo "Done. PRU should now toggle pin 25 on header 9."
心得体会
感谢主办方提供平台，使我们有机会体验beagle bone black开发流程，这里总结了一些开发技巧和大家分享。开发过程中需要多查找资料，结合各平台博客以及视频分享教程，排查遇到问题。
遇到问题
问题一，加载程序时提示权限不足
解决办法：此处最开始以为root权限可们组条件，后面加上sudo后依旧提示权限不足。最终无意间发现
需要变更PRU所有权-->sudo chown debian:debian /lib/firmware/am335x-pru*
所有权变更后，程序可正常加载
问题二，LED亮灭变化周期需要手动调整，参数设置异常无法达到闪烁的效果。
解决办法：反复调整参数。
至此项目发表完毕，欢迎大家在评论区交流经验。
