1.前言

在上一篇Fastbond3基础部分的文章中（FastBond3基础部分-基于ESP32C6的智慧农业灌溉系统 (eetree.cn)），我介绍了项目的创意方向，提供了简单的流程图，并对主要硬件进行了介绍。接下来我将对项目进行更深入的介绍与说明。

2.方案框图和原理图

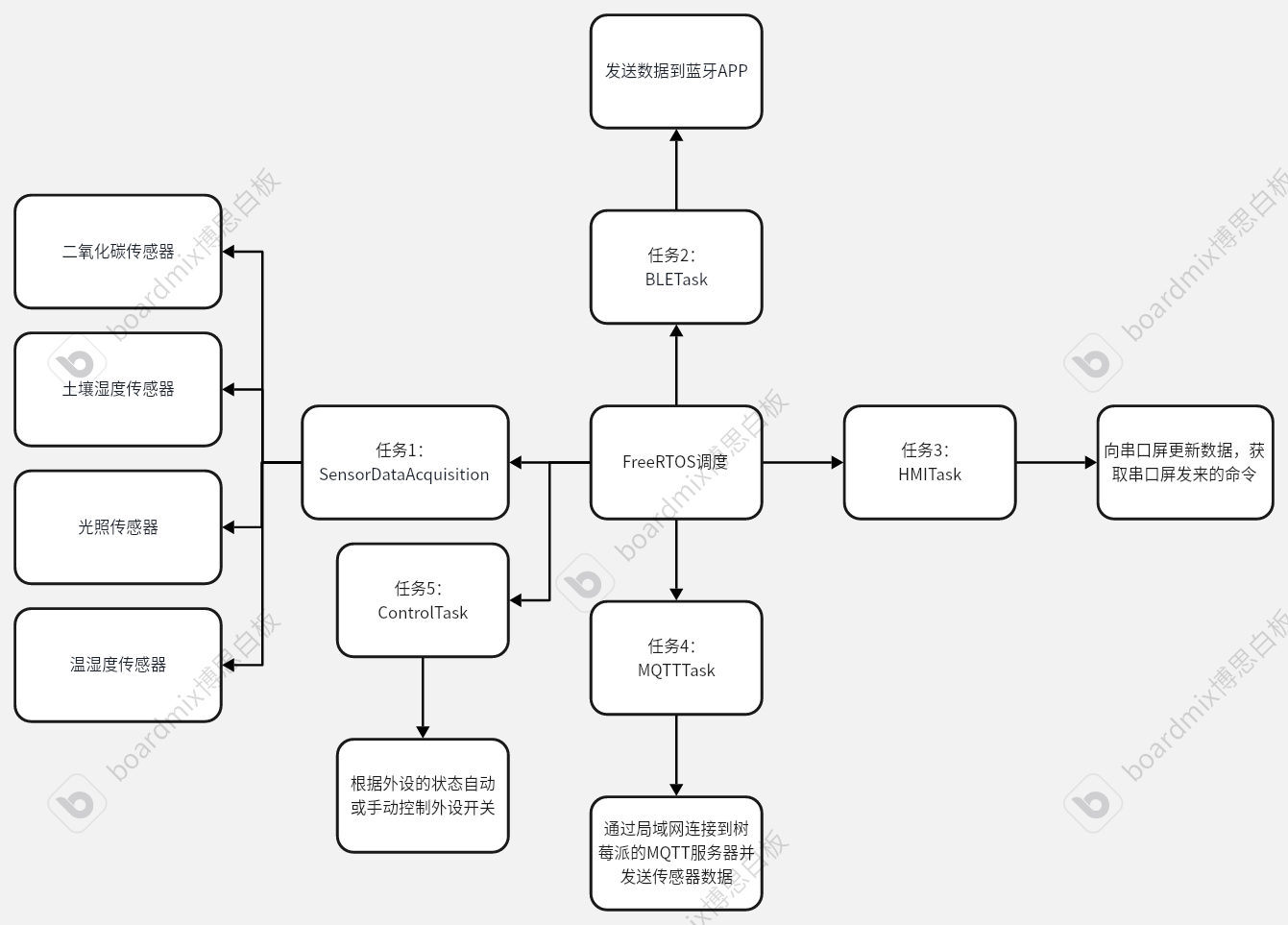

2.1流程图（方案框图）

2.2原理图与PCB

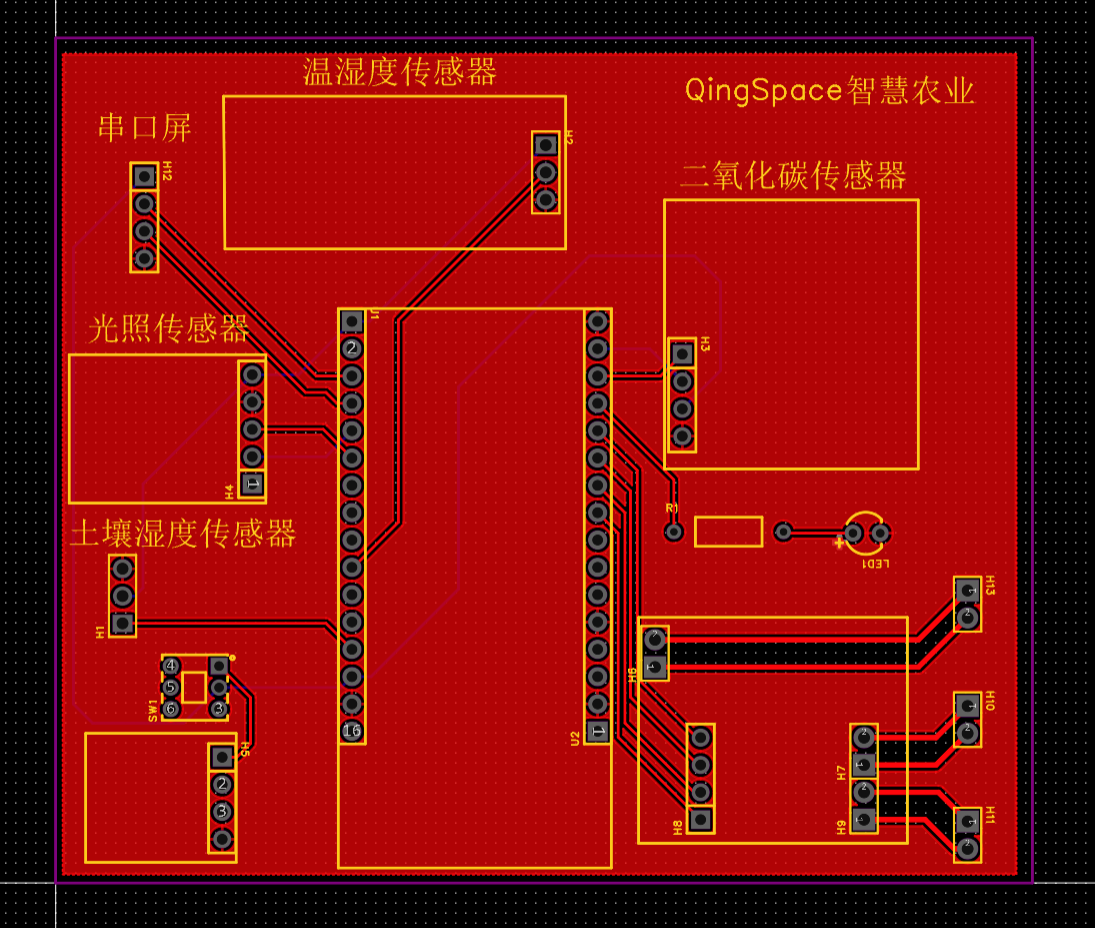

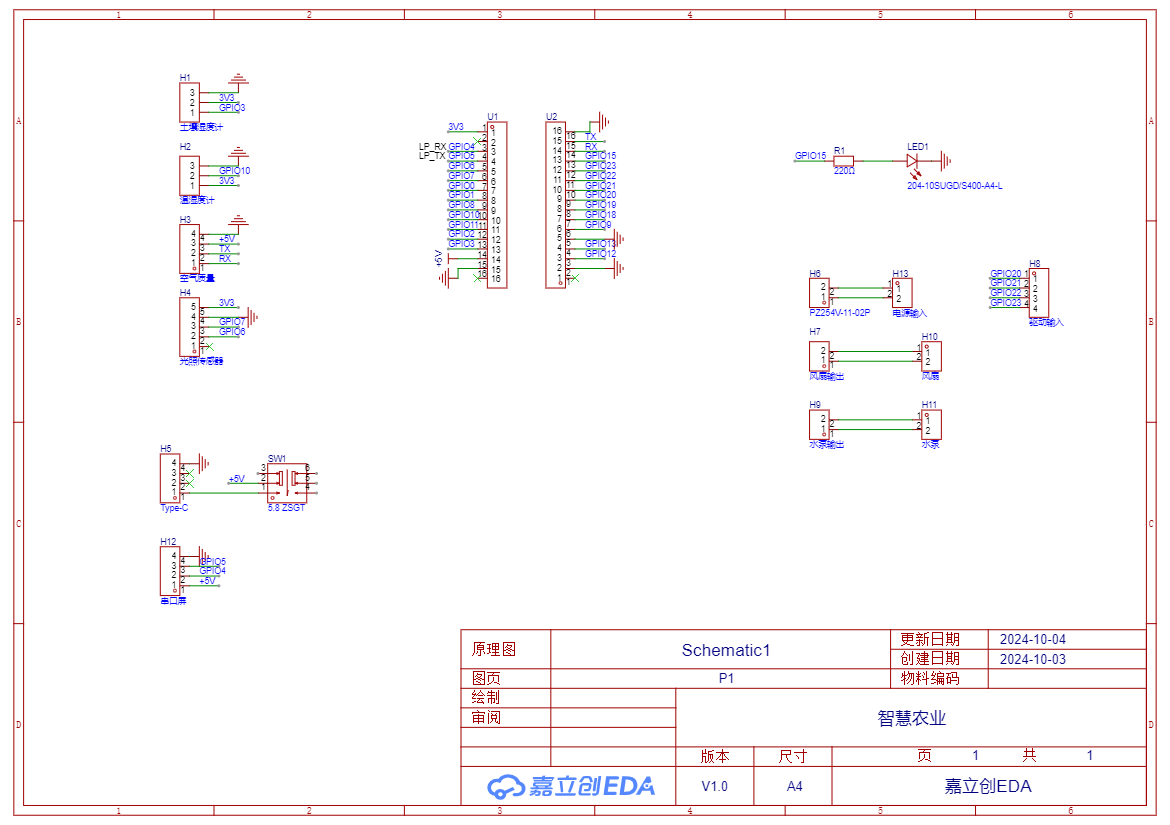

原理图和PCB非常简单，本质上就是把洞洞板变成PCB，减少焊点和飞线，让作品更加美观，无需过多介绍。

3.程序功能说明

本程序使用了FreeRTOS，下面将介绍各个任务的代码以及功能

3.1 传感器读取任务

void SensorDataAcquisition(void *arg)
{
  // 光线传感器
  Wire.begin(LP_I2C_SDA, LP_I2C_SCL);
  lightMeter.begin();
​
  // 土壤湿度传感器
  pinMode(SOIL_SENSOR, INPUT);
​
  // 温湿度传感器
  dht11.setup(DHT11_PIN, DHTesp::DHT11);
​
  while(1)
  {
    lux = lightMeter.readLightLevel();
    soil = 100 * (soil_max - analogRead(SOIL_SENSOR)) / (soil_max - soil_min);
    TH = dht11.getTempAndHumidity();
​
#if UART
    Serial.print("Light: ");
    Serial.print(lux);
    Serial.println(" lx");
​
    Serial.print("Soil: ");
    Serial.print(soil);
    Serial.println(" %");
​
    Serial.print("Temperature: ");
    Serial.print(TH.temperature);
    Serial.print(" °C\tHumidity: ");
    Serial.print(int(TH.humidity));
    Serial.println(" %");
#endif
​
    if (Serial.available() >= 9)
    {
    // 读取九位十六进制数据
    byte data[9];
    for (int i = 0; i < 9; i++)
    {
      data[i] = Serial.read();
    }
​
    // 提取第七位（B7）和第八位（B8）
    byte B7 = data[6];
    byte B8 = data[7];
​
    // 计算二氧化碳浓度
    co2 = B7 * 256 + B8;
#if UART
    // 输出结果
    Serial.print("CO2 Concentration: ");
    Serial.print(co2);
    Serial.println(" PPM");
#endif
    }
​
    sprintf(BT, "%4.1f %2.0f %4.0f %2.0f %4.0f\n", TH.temperature, TH.humidity, lux, soil, co2);
​
#if UART
    Serial.println();
    Serial.println(BT);
#endif
​
    delay(100);
  }
}

任务1主要负责传感器数据的获取传感器的数据，其中光线传感器和温湿度传感器通过函数直接获取，土壤湿度传感器通过电容上的电压值计算出相对湿度，二氧化碳传感器则会通过串口把数据发送给ESP32，而ESP32C6恰好有两个串口，其中一个是LP串口（低功耗串口），它可以当成普通串口用。我将普通串口用作接收二氧化碳传感器的数据，LP串口专门与串口屏通信。

此外，我将所有的串口输出都加了“UART”宏，如果该宏的定义为1，则会在串口上显示各种数据，反之则不会，方便在调试时查看串口数据，调试好后就不需要串口输出了。

3.2 蓝牙任务

      /* 以下为BLE部分变量 */
BLEServer *pServer = NULL;
BLECharacteristic *pTxCharacteristic;
bool deviceConnected = false;
bool oldDeviceConnected = false;
​
void BLESend(const String& message);
void HMISend();
​
class MyServerCallbacks : public BLEServerCallbacks {
  void onConnect(BLEServer *pServer) {
    deviceConnected = true;
  };
​
  void onDisconnect(BLEServer *pServer) {
    deviceConnected = false;
  }
};
​
class MyCallbacks : public BLECharacteristicCallbacks {
  void onWrite(BLECharacteristic *pCharacteristic) {
    String rxValue = pCharacteristic->getValue();
#if UART
    if (rxValue.length() > 0) {
      Serial.println("*********");
      Serial.print("Received Value: ");
      for (int i = 0; i < rxValue.length(); i++) {
        Serial.print(rxValue[i]);
      }
​
      Serial.println();
      Serial.println("*********");
    }
#endif
  }
};
​
void BLETask(void *arg)
{
   // Create the BLE Device
  BLEDevice::init("Smart Agriculture");
​
  // Create the BLE Server
  pServer = BLEDevice::createServer();
  pServer->setCallbacks(new MyServerCallbacks());
​
  // Create the BLE Service
  BLEService *pService = pServer->createService(SERVICE_UUID);
​
  // Create a BLE Characteristic
  pTxCharacteristic = pService->createCharacteristic(CHARACTERISTIC_UUID_TX, BLECharacteristic::PROPERTY_NOTIFY);
​
  pTxCharacteristic->addDescriptor(new BLE2902());
​
  BLECharacteristic *pRxCharacteristic = pService->createCharacteristic(CHARACTERISTIC_UUID_RX, BLECharacteristic::PROPERTY_WRITE);
​
  pRxCharacteristic->setCallbacks(new MyCallbacks());
​
  // Start the service
  pService->start();
​
  // Start advertising
  pServer->getAdvertising()->start();
  #if UART
  Serial.println("Waiting a client connection to notify...");
  #endif
​
  while(1)
  {
    BLESend(BT);
​
    // disconnecting
    if (!deviceConnected && oldDeviceConnected) {
      delay(500);                   // give the bluetooth stack the chance to get things ready
      pServer->startAdvertising();  // restart advertising
#if UART
      Serial.println("start advertising");
#endif
      oldDeviceConnected = deviceConnected;
    }
    // connecting
    if (deviceConnected && !oldDeviceConnected) {
      // do stuff here on connecting
      oldDeviceConnected = deviceConnected;
    }
  }
}

此处的代码来自Arduino IDE中的ESP32的示例程序，不做过多讲解。总体上就是负责创建一个BLE设备、服务器、服务和特征，并处理设备连接和断开连接的逻辑等。在连接成功后会发送数据到客户端（即蓝牙APP）。

3.3 串口屏任务

HardwareSerial LP_Serial(1); //这一行在最开始
​
LP_Serial.begin(115200, SERIAL_8N1, LP_UART_RXD, LP_UART_TXD); //这一行在setup函数中
​
void HMITask(void *arg)
{
  while(1)
  {
    LP_Serial.printf("data.temp.txt=\"%.1f\"", TH.temperature);
    HMISend();
​
    LP_Serial.printf("data.huma.txt=\"%.0f\"", TH.humidity);
    HMISend();
​
    LP_Serial.printf("data.lit.txt=\"%.0f\"", lux);
    HMISend();
​
    LP_Serial.printf("data.hums.txt=\"%.0f %\"", soil);
    HMISend();
​
    LP_Serial.printf("data.co.txt=\"%.0f\"", co2);
    HMISend();
​
    delay(1000);
​
    if (LP_Serial.available())
    {
      String LP_data = LP_Serial.readStringUntil(';');
​
      LP_data.trim();
​
      if (LP_data == "1:0") {
          led_state = 0;
      } else if (LP_data == "1:1") {
          led_state = 1;
      } else if (LP_data == "1:2") {
          led_state = 2;
      } else if (LP_data == "2:0") {
          fan_state = 0;
      } else if (LP_data == "2:1") {
          fan_state = 1;
      } else if (LP_data == "2:2") {
          fan_state = 2;
      } else if (LP_data == "3:0") {
          pump_state = 0;
      } else if (LP_data == "3:1") {
          pump_state = 1;
      } else if (LP_data == "3:2") {
          pump_state = 2;
      }
    }
  }
}

此任务首先需要定义一下LP串口，然后初始化LP串口，并向串口屏不断发送传感器的数据，同时如果接收到串口屏发来的控制指令做出相应处理。外设的状态有：0-关，1-开，2-自动，而“1:2”中前一个数字是外设编号，第二个数字是外设更改后的状态，外设1是LED，外设2是风扇，外设3是水泵。

3.4 WiFi/MQTT任务

      /* 以下为WiFi和MQTT部分变量 */
const char *ssid = "Mate 40 Pro"; // Wifi 账号
const char *password = "15239570078gzc";  // wifi 密码
​
//客户端变量
WiFiClient espClient;
PubSubClient client(espClient);
​
// 配置消息
char config_temperature[] = "{\"unique_id\":\"Smart-Agriculture-Temperature\",\"name\":\"温度传感器\",\"icon\":\"mdi:thermometer\",\"state_topic\":\"Smart-Agriculture/temperature/state\",\"json_attributes_topic\":\"Smart-Agriculture/temperature/attributes\",\"unit_of_measurement\":\"℃\",\"device\":{\"identifiers\":\"ESP32\",\"manufacturer\":\"QingSpace\",\"model\":\"HA\",\"name\":\"ESP32\",\"sw_version\":\"1.0\"}}";
char config_humidity[] = "{\"unique_id\":\"Smart-Agriculture-Humidity\",\"name\":\"空气湿度传感器\",\"icon\":\"mdi:water-percent\",\"state_topic\":\"Smart-Agriculture/humidity/state\",\"json_attributes_topic\":\"Smart-Agriculture/humidity/attributes\",\"unit_of_measurement\":\"%\",\"device\":{\"identifiers\":\"ESP32\",\"manufacturer\":\"QingSpace\",\"model\":\"HA\",\"name\":\"ESP32\",\"sw_version\":\"1.0\"}}";
char config_light[] = "{\"unique_id\":\"Smart-Agriculture-Light\",\"name\":\"光照传感器\",\"icon\":\"mdi:brightness-5\",\"state_topic\":\"Smart-Agriculture/light/state\",\"json_attributes_topic\":\"Smart-Agriculture/light/attributes\",\"unit_of_measurement\":\"lux\",\"device\":{\"identifiers\":\"ESP32\",\"manufacturer\":\"QingSpace\",\"model\":\"HA\",\"name\":\"ESP32\",\"sw_version\":\"1.0\"}}";
char config_soil_moisture[] = "{\"unique_id\":\"Smart-Agriculture-Soil-Moisture\",\"name\":\"土壤湿度传感器\",\"icon\":\"mdi:water-outline\",\"state_topic\":\"Smart-Agriculture/soil-moisture/state\",\"json_attributes_topic\":\"Smart-Agriculture/soil-moisture/attributes\",\"unit_of_measurement\":\"%\",\"device\":{\"identifiers\":\"ESP32\",\"manufacturer\":\"QingSpace\",\"model\":\"HA\",\"name\":\"ESP32\",\"sw_version\":\"1.0\"}}";
char config_co2[] = "{\"unique_id\":\"Smart-Agriculture-CO2\",\"name\":\"二氧化碳传感器\",\"icon\":\"mdi:molecule-co2\",\"state_topic\":\"Smart-Agriculture/co2/state\",\"json_attributes_topic\":\"Smart-Agriculture/co2/attributes\",\"unit_of_measurement\":\"ppm\",\"device\":{\"identifiers\":\"ESP32\",\"manufacturer\":\"QingSpace\",\"model\":\"HA\",\"name\":\"ESP32\",\"sw_version\":\"1.0\"}}";
​
​
// MQTT Broker 服务端连接
const char *mqtt_broker = "192.168.43.179";//mqtt服务器地址
const char *mqtt_username = "QSG";
const char *mqtt_password = "gzc20050414";
const int mqtt_port = 1883;//端口
​
​
void MQTTTask(void *arg)
{
  // connecting to a WiFi network
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
      delay(2000);
#if UART
      Serial.println("Connecting to WiFi...");
#endif
  }
#if UART
  Serial.println("Connected to WiFi");
#endif
​
  //connecting to a mqtt broker 连接服务端
  client.setBufferSize(512); // 增加消息缓冲区大小
  client.setServer(mqtt_broker, mqtt_port);
  while (!client.connected()) {
      String client_id = "esp32-client-";
      client_id += String(WiFi.macAddress());
      Serial.printf("The client %s connects to the public mqtt broker\n", client_id.c_str());
      if (client.connect(client_id.c_str(), mqtt_username, mqtt_password)) {
#if UART
          Serial.println("Public emqx mqtt broker connected");
#endif
      } else {
#if UART
          Serial.print("failed with state ");
          Serial.print(client.state());//返回连接状态
#endif
          delay(2000);
      }
  }
​
  // 发送初始化配置消息
  client.publish("homeassistant/sensor/HA/Smart-Agriculture-Temperature/config", config_temperature);
  client.publish("homeassistant/sensor/HA/Smart-Agriculture-Humidity/config", config_humidity);
  client.publish("homeassistant/sensor/HA/Smart-Agriculture-Light/config", config_light);
  client.publish("homeassistant/sensor/HA/Smart-Agriculture-Soil-Moisture/config", config_soil_moisture);
  client.publish("homeassistant/sensor/HA/Smart-Agriculture-CO2/config", config_co2);
  while(1)
  {
    client.publish("Smart-Agriculture/temperature/state", String(TH.temperature).c_str());
    client.publish("Smart-Agriculture/humidity/state", String(TH.humidity).c_str());
    client.publish("Smart-Agriculture/light/state", String(lux).c_str());
    client.publish("Smart-Agriculture/soil-moisture/state", String(soil).c_str());
    client.publish("Smart-Agriculture/co2/state", String(co2).c_str());
​
    delay(1000);
  }
}

此任务的配置部分也是节选自Arduino IDE中ESP32的示例程序，主要说一下发送的信息内容。在每次连接成功后，我们需要先向搭建在树莓派上的MQTT服务器发送传感器的初始化配置信息，如果Home Assistant上没有相应的设备则会添加上去，如果已经有了就不会有变化。然后不断向MQTT服务器发送传感器数据，不断更新网页上的传感器数据。这样可以在相对较远的距离下无线查看传感器数据。不过目前只能在局域网内查看，即ESP32，树莓派和查看数据的设备要再同一个局域网内。

3.5 外设控制任务

void ControlTask(void *arg)
{
  pinMode(LED_PIN, OUTPUT);
  pinMode(FAN_PIN1, OUTPUT);
  pinMode(FAN_PIN2, OUTPUT);
​
  while(1)
  {
    if(led_state == 2)
    {
      digitalWrite(LED_PIN, lux < lux_limit ? HIGH : LOW);
    }
    else
    {
      digitalWrite(LED_PIN, led_state ? HIGH : LOW);
    }
​
    if(fan_state == 2)
    {
      analogWrite(FAN_PIN1, (TH.temperature > temp_limit ? 1 : 0) * 75);
    }
    else
    {
      analogWrite(FAN_PIN1, (fan_state ? 1 : 0) * 75);
    }
​
    if(pump_state == 2)
    {
      analogWrite(PUMP_PIN1, (soil < soil_limit ? 1 : 0) * 255);
    }
    else
    {
      analogWrite(PUMP_PIN1, (pump_state ? 1 : 0) * 255);
    }
  }
}

这里就比较简单了，只是根据外设的状态去自动或手动控制外设的运行与否。

4.活动心得

在该项目中，我第一次使用到了树莓派，遇到了很多问题，但是都被我一一克服。同时，我也发现了ESP32在无线通信方面的强大优势，也是第一次将ESP32投入实际应用之中，我相信在之后的创意之路上ESP32一定能成为我的好帮手。
