i.MX 28

i.MX 28
基本信息
描述:i.MX28是一个面向低功耗,高性能,低价格,多媒体ARM926EJ-S处理器。
器件类别:应用处理器

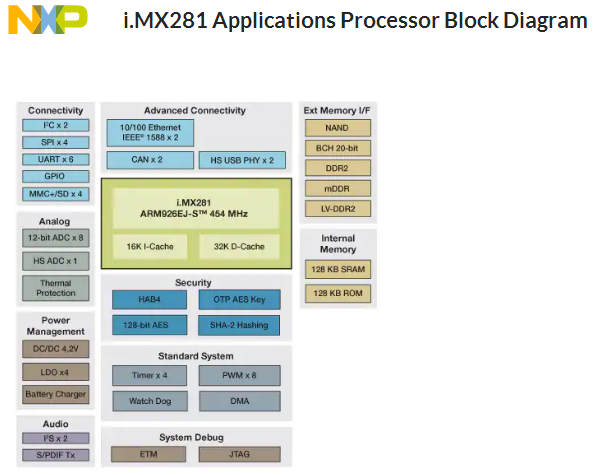

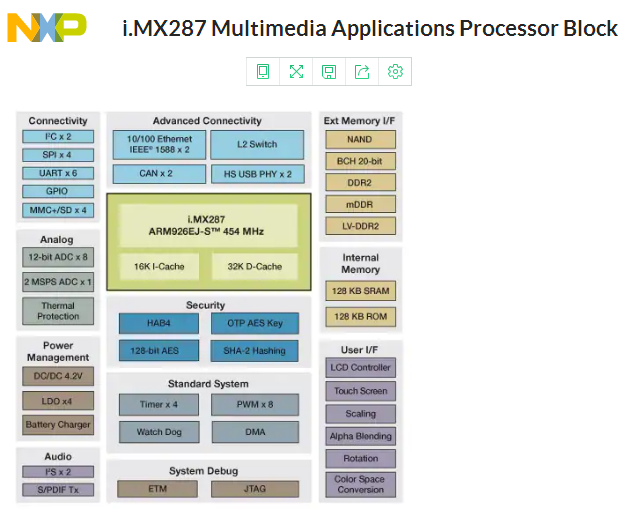

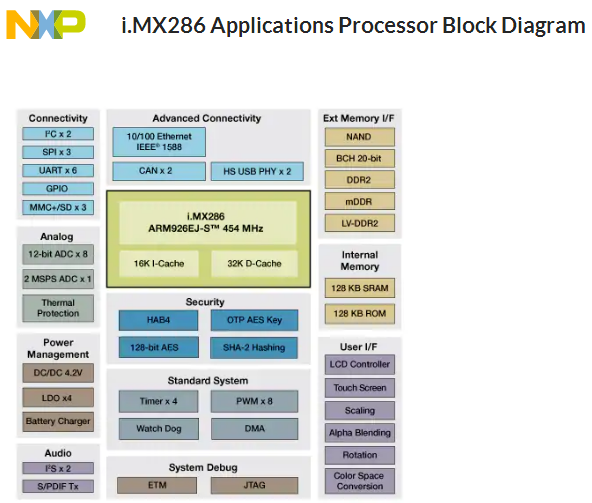

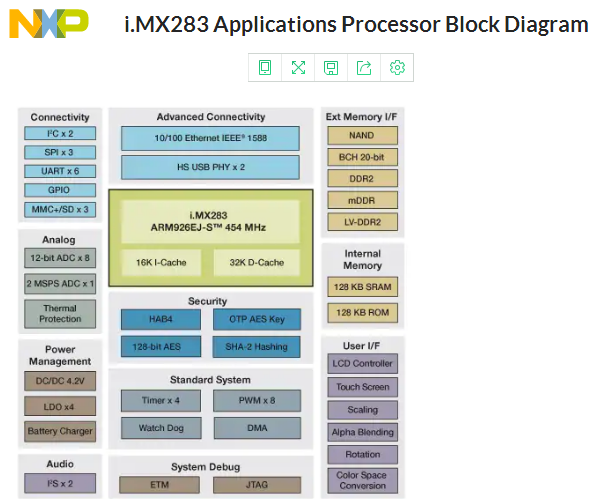

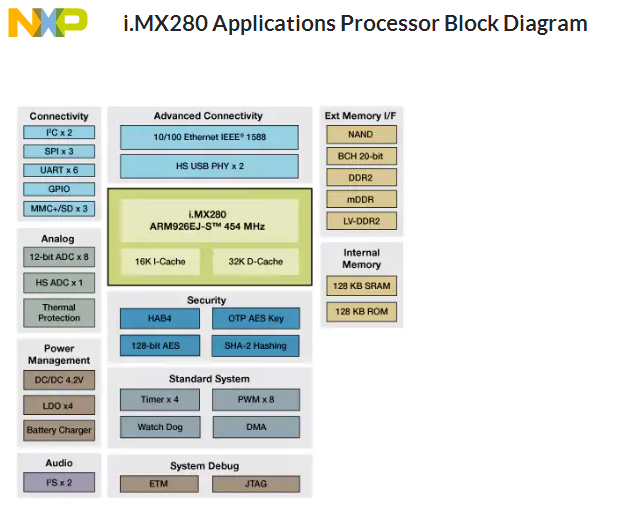

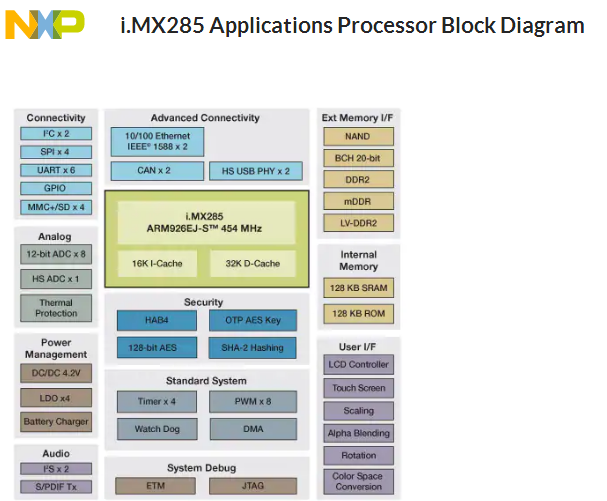

产品结构框图
i.MX 280
i.MX 281
i.MX 283
i.MX 285
i.MX 286
i.MX287
i.MX 287
i.MX 280

+ The i.MX280 is a low-power, high-performance applications processor optimized for the general embedded industrial and consumer markets. + The core of the i.MX280 is Our fast, proven, power-efficient implementation of the ARM926EJ-S™ core, with speeds of up to 454 MHz. Ideal for building applications that do not require a display such as media and smart energy gateways/managers, handheld printers and scanners or communications modules, the i.MX280 comes with a comprehensive suite of software and tools to get you started today.

i.MX 281

+ The i.MX281 multimedia applications processor offers integration that tailors itself to the connectivity requirements of many automobile infotainment systems not requiring a display. + This processor with full AEC –Q100 automotive qualification has been architected to meet auto infotainment requirements such as CAN, USB connectivity, and audio connectivity.

i.MX 283

i.MX283应用处理器可提供一个低功耗、高性能的解决方案,专为通用嵌入式工业控制和消费电子市场而优化。 + 支持多种应用,如媒体和智能能源网关、手持打印机和扫描仪,以及便携式医疗设备 + 降低系统成本和复杂性,并提高系统设计的灵活性 + 扩大了温度范围,适应严苛环境的要求 + 工业资质以及产品长期供货计划,为此领域的产品提供整个生命周期支持 + 配有一套软件和工具

i.MX 285

+ i.MX285内核采用我们快速、成熟、高能效的Arm926EJ-S™内核,频率高达454 MHz。i.MX28关注总体系统成本,集成了物理USB接口(PHY)、10/100以太网 、电源管理和电阻式触摸屏显示控制器。 + 该处理器全面经过AEC– Q100汽车认证,是带有显示屏和触摸屏控制系统的车载信息娱乐系统的理想选择。这样,i.MX285可以实现许多只有高端系统才提供的特性,但其价格适合所有车辆。

i.MX 286

+ The i.MX286 has all the advantages of the low power, high-performance i.MX283 with an extra level of connectivity features by offering dual CAN support. + The i.MX286 is suitable for a wide range of applications such as Human-Machine Interfaces (HMI) for Appliances, Building Contol, Factory Automation, Printers, Security Panels and factory robotics displays. Get started today building the next great portable product based on the i.MX286.

i.MX 287

i.MX287多媒体应用处理器非常适合需要丰富的用户界面的便携式设备,带高彩显示屏,用以呈现信息和用户交互。 + 降低系统成本和复杂性 + 提高系统设计的灵活性 + 提供高级外设整合:显示器、连接、实时控制、安全性和联网等 + 优化性能和功耗 + 以强大的支持工具为后盾,在更短时间内设计出别具一格的产品

主要特性
i.MX 280

+ NAND support – SLC/MLC and eMMC 4.4 managed + Hardware BCH (up to 20-bit correction) + 200 MHz 16-bit DDR2, LV-DDR2, mDDR external memory support + Dual High speed USB with embedded PHY + 8 General purpose 12-bit ADC channels and single 2 Msps ADC channel + Temperature sensor for thermal protection + Multiple connectivity ports (UART, SSP, SDIO, SPI, I2C, I2S) + 3.3V I/O, 10 year lifetime (Industrial) + Package and Temperature + 289 BGA 14x14mm .8mm + -20C to +70C (Consumer) + -40C to +85C (Industrial) + This product is included in NXP’s product longevity program, with assured supply for a minimum of 15 years after launch

i.MX 281

+ 454MHz ARM926EJ-S core with 16KB/32KB Cache + PMU with high efficiency on-chip DC/DC, supports Li-Ion batteries + 10/100 IEEE® 1588 Ethernet with RMII support + Dual CAN interfaces + NAND support – SLC/MLC and eMMC 4.4 managed + Hardware BCH (up to 20-bit correction) + 200 MHz 16-bit DDR2, LV-DDR2, mDDR external memory support + Dual High speed USB with embedded PHY + General purpose 12-bit ADC channels and single 2 Msps ADC channel + Temperature sensor for thermal protection + Multiple connectivity ports (UARTs, SSP, SDIO, SPI, I2C, I2S) + 3.3V I/O, 10 year lifetime (Industrial) + Package and Temperature + 289 BGA 14x14mm .8mm + -40C to +85C (Industrial) + This product is included in NXP®.s product longevity program, with assured supply for a minimum of 15 years after launch

i.MX 283

+ 带触摸屏的LCD控制器 + NAND支持 – SLC/MLC和eMMC 4.4可管理 + 硬件BCH (高达20位校正) + 200 MHz 16位DDR2、LV-DDR2、mDDR外部存储器支持 + 带有嵌入式PHY的双高速USB + 8个通用12位ADC通道和单个2 Msps ADC通道 + 带温度传感器,提供热保护 + 多种连接端口(UARTS、SSP、SDIO、SPI、I2C、I2S) + 3.3V I/O,10年使用寿命(工业控制) + 封装和温度 + 289 BGA 14x14mm .8mm + -20C至+70C (消费电子) + -40C至+85C (工业控制) + 本产品包含在恩智浦产品长期供货计划中,自推出后至少保证15年供货

i.MX 285

+ 带触摸屏的LCD控制器 + NAND支持 – SLC/MLC和eMMC 4.4可管理 + 硬件BCH (高达20位校正) + 200 MHz 16位DDR2、LV-DDR2、mDDR外部存储器支持 + 带有嵌入式PHY的双高速USB + 8个通用12位ADC通道和单个2 Msps ADC通道 + 带温度传感器,提供热保护 + 多种连接端口(UARTS、SSP、SDIO、SPI、I2C、I2S) + 3.3V I/O,10年使用寿命(工业控制) + 封装和温度 + 289 BGA 14x14mm .8mm + -20C至+70C (消费电子) + -40C至+85C (工业控制) + 本产品包含在恩智浦产品长期供货计划中,自推出后至少保证15年供货

i.MX 286

+ 454MHz ARM926EJ-S core with 16KB/32KB Cache + PMU with high efficiency on-chip DC/DC, supports Li-Ion batteries + 10/100 IEEE® 1588 Ethernet with RMII support + Dual CAN interfaces + LCD Controller with Touchscreen + NAND support – SLC/MLC and eMMC 4.4 managed + Hardware BCH (up to 20-bit correction) + 200 MHz 16-bit DDR2, LV-DDR2, mDDR external memory support + Dual High speed USB with embedded PHY + 8 General purpose 12-bit ADC channels and single 2 Msps ADC channel + Temperature sensor for thermal protection + Multiple connectivity ports (UARTs, SSP, SDIO, SPI, I2C, I2S) + 3.3V I/O, 10 year lifetime (Industrial) + Package and Temperature + 289 BGA 14x14mm .8mm + -20C to +70C (Consumer) + -40C to +85C (Industrial) + This product is included in NXP®.s product longevity program, with assured supply for a minimum of 15 years after launch

i.MX 287

+ 带有16KB/32KB缓存的454MHz Arm926EJ-S内核 + PMU带有高效片上DC/DC,支持锂离子电池 + 10/100双IEEE® 1588以太网,提供RMII支持和L2交换功能 + 双CAN接口 + 带触摸屏的LCD控制器 + NAND支持 – SLC/MLC和eMMC 4.4可管理 + 硬件BCH (高达20位校正) + 200 MHz 16位DDR2、LV-DDR2、mDDR外部存储器支持 + 带有嵌入式PHY的双高速USB + 8个通用12位ADC通道和单个2 Msps ADC通道 + 带温度传感器,提供热保护 + 多种连接端口(UARTS、SSP、SDIO、SPI、I2C、I2S) + 3.3V I/O,10年使用寿命(工业控制) + 封装和温度 + 289 BGA 14x14mm .8mm + -40C至+85C (工业控制) + 本产品包含在恩智浦产品长期供货计划中,自推出后至少保证15年供货

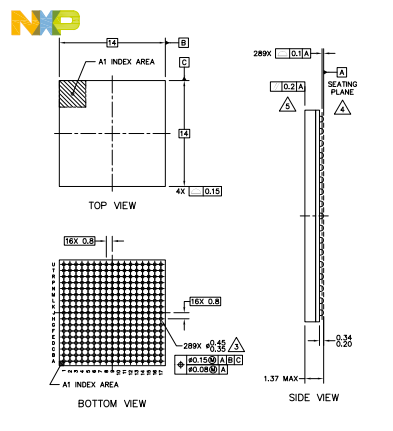

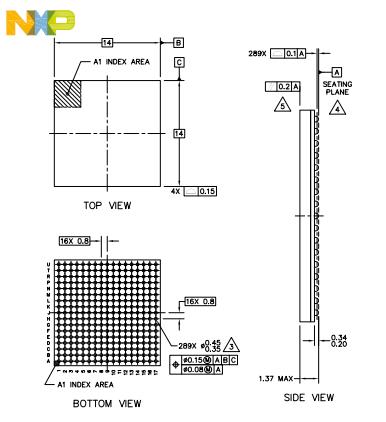

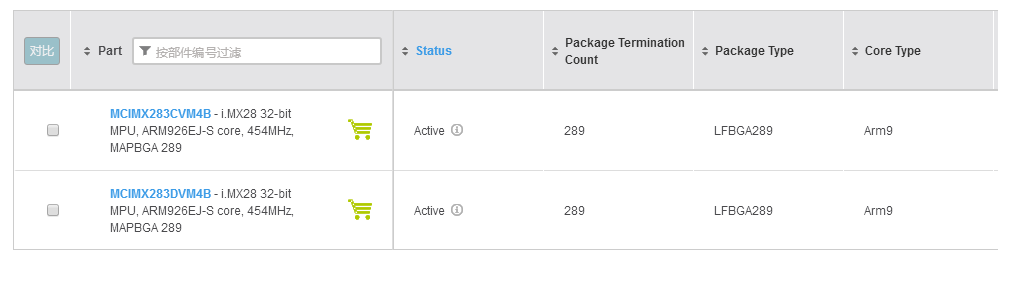

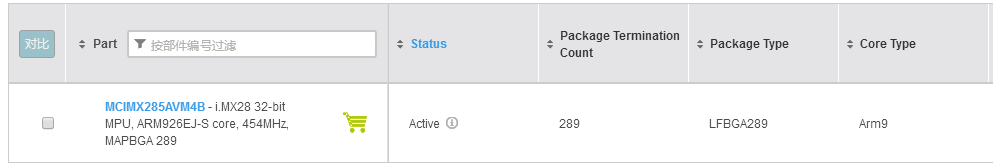

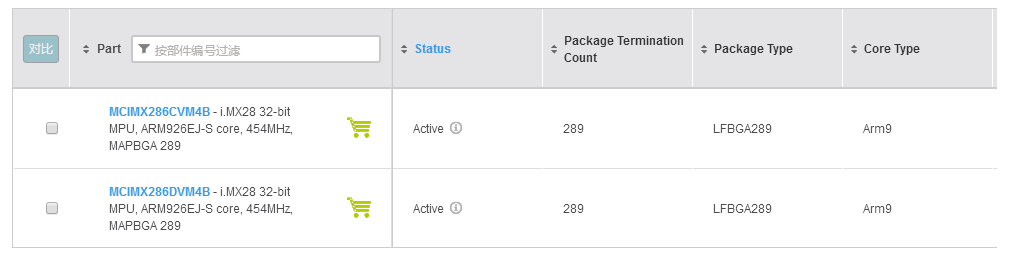

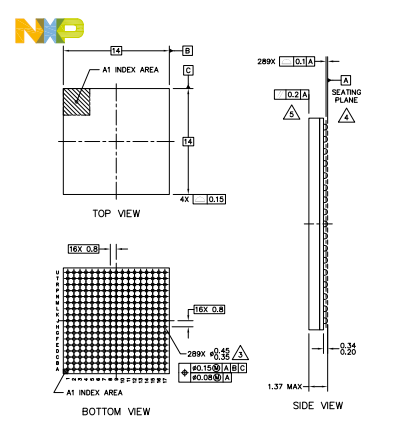

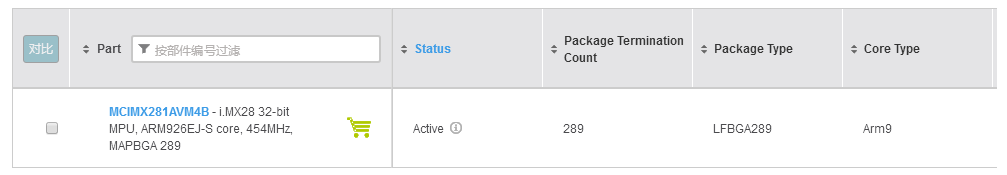

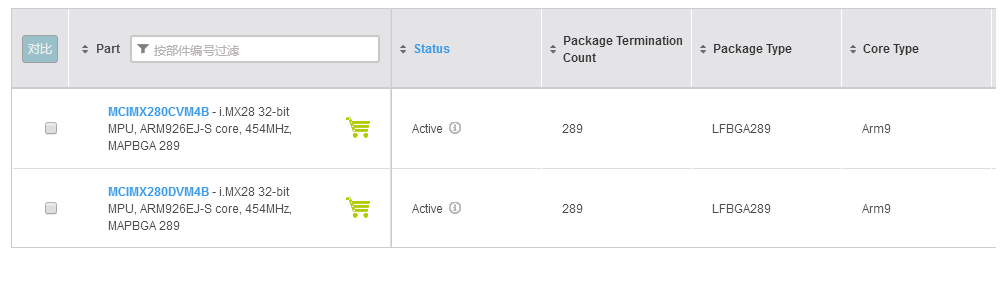

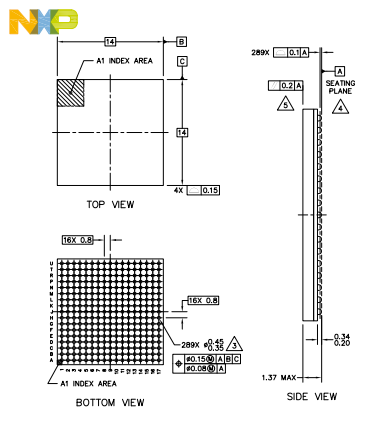

封装
i.MX 280
i.MX 281
i.MX 283
i.MX 285
i.MX 286
i.MX 287
设计工具
库/模型
CAD库文件
评估板信息
评估板型号:MCIMX28EVKJ

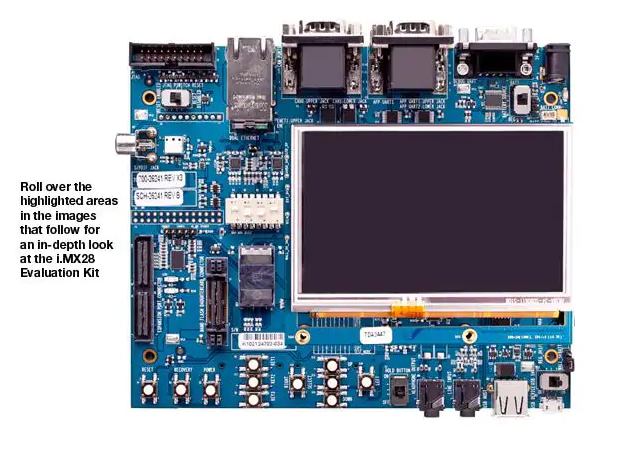

评估板图片
评估板介绍

恩智浦i.MX28评估套件(EVK)可为您提供一个物美价廉的平台来开发、调试和演示您下一个伟大产品的个性,并且不会影响产品性能。 + EVK在一个小的,单电路板设计中支持i.MX28系列的所有特性,并有一个可选的LCD模块,使开发人员以较低的价格拥有一个完整的开发平台 + i.MX28 EVK具有一系列外设和连接选项,适用于开发广泛的消费电子、工业控制和汽车应用。 + i.MX28 EVK附带Linux®和Windows® Embedded CE 6.0 BSPs,以及音频和视频编解码器

购买渠道
授权分销商
公司:广州立功科技股份有限公司
地址:广州市天河区龙怡路117号银汇大厦16楼
联系电话:020-38730916
传真:020-38730925
