Raspberry Pi 4B - EN

Raspberry Pi 4B Computer
Overview
Release date:June 24, 2019

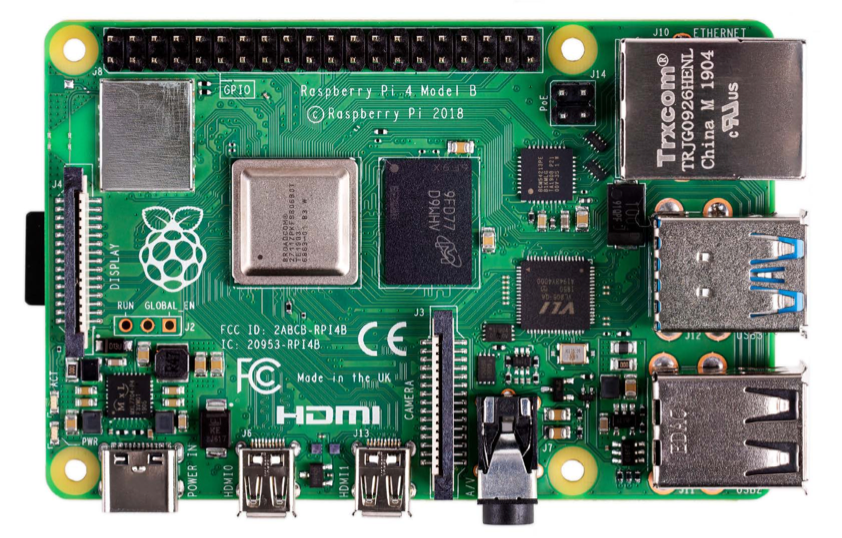

Picture of Pi 4B
Key Features
a high-performance 64-bit quad-core processor
dual-display support at resolutions up to 4K via a pair of micro-HDMI ports,
hardware video decode at up to 4Kp60
up to 4GB of RAM
dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on)
Target Applications: Raspberry Pi 4 set to drive low-cost digital transformation
Next generation of best-selling British PC will dramatically cut the cost of digitally transforming business processes, products and services
Bringing PC-equivalent performance to the sub-$50 price bracket, Raspberry Pi 4 is the natural choice for developing and deploying industrial IoT applications
New 4K dual-screen capability increases the tiny computer’s suitability for thin client installations, where two monitors are often needed
Gigabit Ethernet, wireless networking and enhanced serial interfaces support networked monitoring and control of a broad range of industrial equipment
Specification
Processor
BCM2711 @ Broadcom
quad-core Cortex-A72 (ARM v8)
64-bit SoC @ 1.5GHz
Memory
LPDDR4
1GB, 2GB or 4GB (depending on model)
Connectivity
2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN
Bluetooth 5.0,BLE
Gigabit Ethernet
2 × USB 3.0 ports
2 × USB 2.0 ports
GPIO
Standard 40-pin GPIO header
fully backwards-compatible with previous boards
Video & sound
2 × micro HDMI ports (up to 4Kp60 supported)
2-lane MIPI DSI display port
2-lane MIPI CSI camera port
4-pole stereo audio and composite video port
Multimedia
H.265 (4Kp60 decode)
H.264 (1080p60 decode, 1080p30 encode)
OpenGL ES, 3.0 graphics
SD card support
Micro SD card slot
 for loading operating system and data storage
Input power
5V DC via USB-C connector (minimum 3A)
5V DC via GPIO header (minimum 3A)
Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
Environment
Operating temperature 0–50oC
Production lifetime
The Raspberry Pi 4 Model B will remain in production until at least January 2026

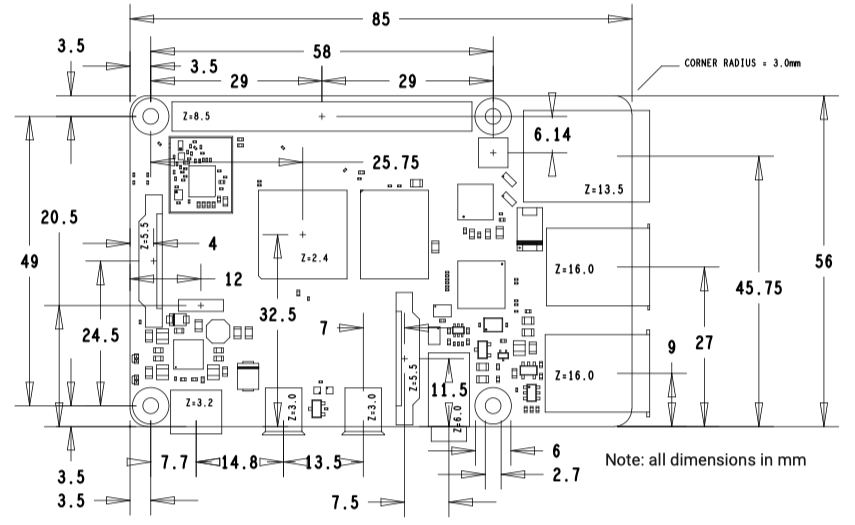

Physical Specifications
BUY
Model and price
1GB RAM: $35
2GB RAM: $45
4GB RAM: $55
