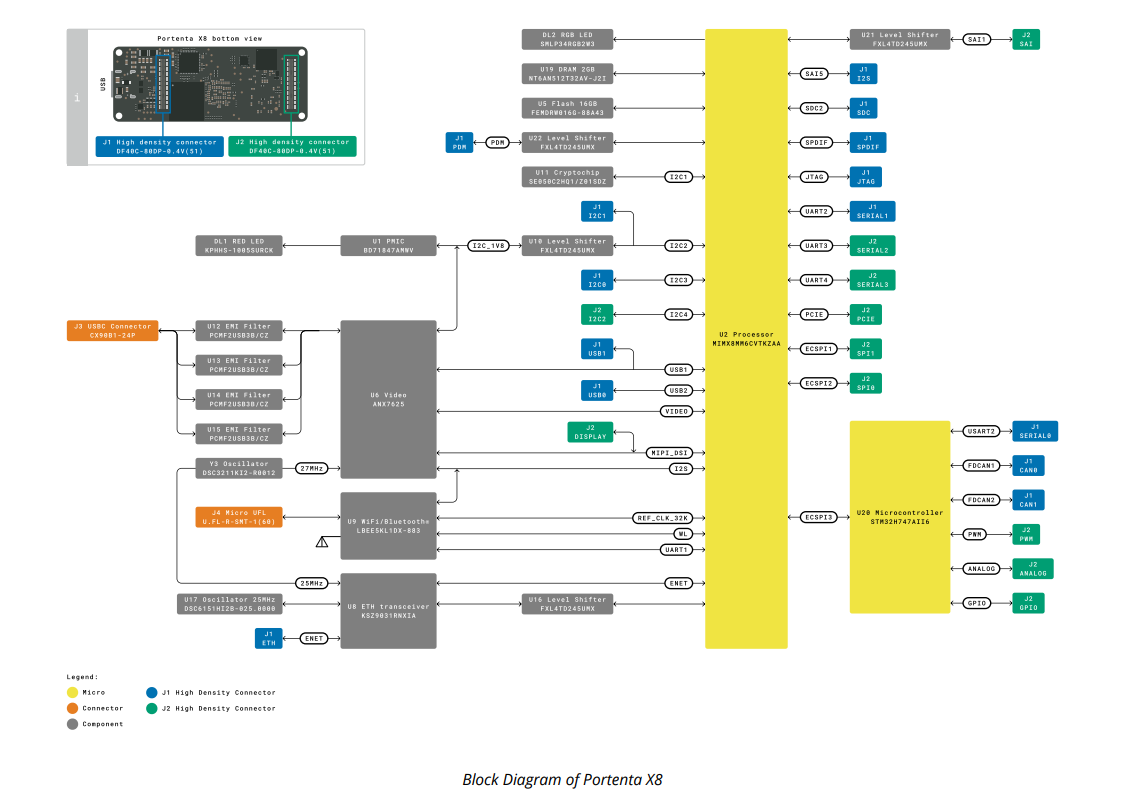

Includes the powerful NXP® i.MX 8M Mini processor with 4x ARM® Cortex®-A53 core platforms up to 1.8GHz per core and 1x Cortex-M4 core up to 400MHz.

X8's integrated microcontroller is the dual core STM32H747 including a Cortex® M7 running at 480 MHz and a Cortex® M4 running at 240 MHz. The M4 core is available for real time control of motors and other time-critical machinery at a barebones level. The M7 core acts as a mediator between the peripherals and the i.MX 8M Mini and runs a proprietary firmware inaccessible to the User.

The Crypto chip allows users to keep security in mind by ensuring a secure connection at the hardware level.

The X8 offers the best of two approaches: the flexibility of usage of Linux combined with real-time applications. This approach allows developers to leverage the Arduino environment to perform e.g. automation control while accomplishing high-performance processes on Linux cores at the same time.

With the so called encapsulated application, developers can isolate a single package of software, which means that the applications can run within a controlled environment. This allows developers to design device-independent software while achieving modularization, thanks to the container composition.

硬件级别的工业级安全性

OTA更新

此外，Portenta X8 获得了PSA 认证，并包含 NXP SE050C2硬件安全元件，可提供密钥生成、加速加密操作和安全存储。X8 还获得了Arm SystemReady 认证并集成了 Parsec 服务，使其成为市场上首批可供开发人员使用的Cassini 产品或云原生边缘设备之一。X8 支持将云原生工作负载从云端迁移到边缘，有助于在 Arm 多样化且安全的物联网生态系统中提供云原生开发人员体验。

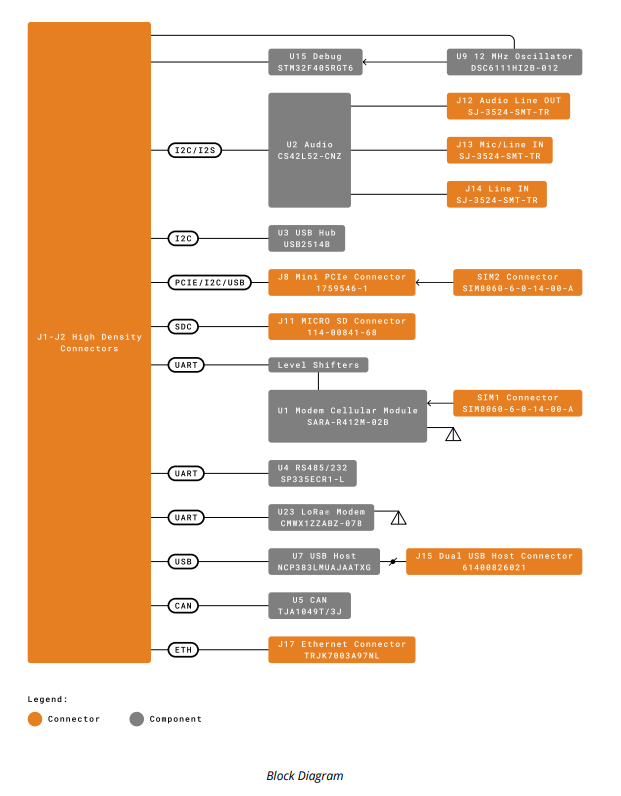

The Portenta Max Carrier expands upon the computational capabilities of the Portenta X8.

Enable 4G, Cat-M1, NB-IoT and LoRa® connectivity in your Industry 4.0 solution. Send and receive texts, or communicate via internet protocols including TCP, UDP and HTTPS.

NB-IoT and LTE-M coverage includes many regions, such as Europe, North & South America and large parts of Asia.

Access a wide range of I/O including high density connectors, Gigabit Ethernet, mini PCIe (PCI Express), 3.5mm audio in/out as well as Serial RS232/422/485

Make solutions faster with the in application Black Magic probe debugger.

The Portenta Max Carrier includes an onboard 18650 Li-ion/LiPo battery holder and power management circuitry.

通过 microUSB 的板载 JTAG 调试器（仅限 Portenta H7）

NB-IOT

Portenta Max Carrier 是一个很好的参考设计，可用于围绕 Portenta 生态系统开发您自己的定制产品。此外，Arduino Pro 可以提供完整的开发、生产和运营支持，以开发适合您业务需求的解决方案。

Portenta Max Carrier 旨在通过展示 Portenta 系列模块的主要外围设备来帮助开发人员制作原型。当与 Portenta H7 结合使用时，它可以通过JTAG 连接器轻松调试并检查 CAN 线路。同时，它还是测试以太网连接以及扩展连接选项（CAT-M1、NB-IoT 和 LoRa ®）的正确工具。

Portenta Max Carrier 可以与Portenta X8结合成为功能强大的工业 Linux 计算机。这可以通过多协议网关进行编程以监控和管理广泛的数据——通过 Wi-Fi、 LoRa® 、NB-IoT 或 LTE Cat.M1连接到云或 ERP 系统——或成为配备传感器和智能的智能 AGV ，可优化工厂或仓库的物流。在商场或车站，它可以为智能数字亭提供他们所需的计算能力、内存和各种功能，从读卡器到麦克风。在家里或办公室它可以同时控制暖通空调系统、开关智能电器、自主调节照明和控制访问。只需添加一个HMI 显示屏，一切尽在掌控之中。
