用树莓派Pico/RP2040制作逻辑分析仪的资源

用树莓派Pico/RP2040制作逻辑分析仪的资源

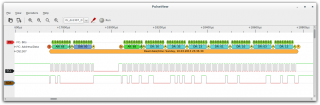

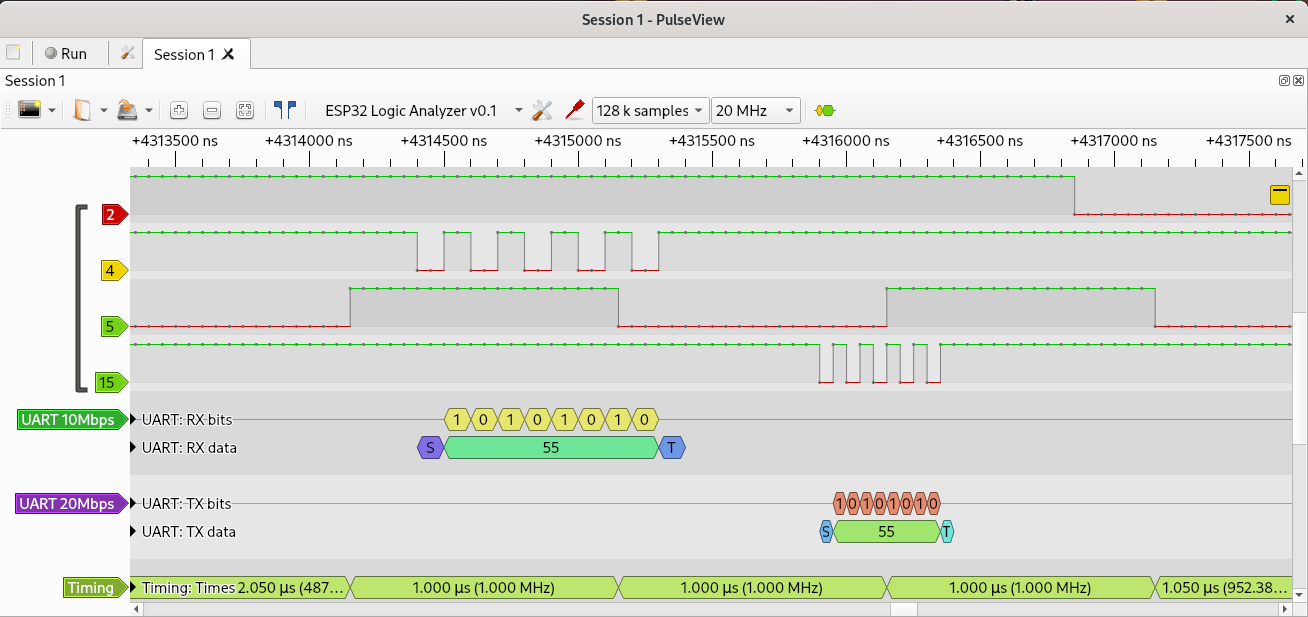

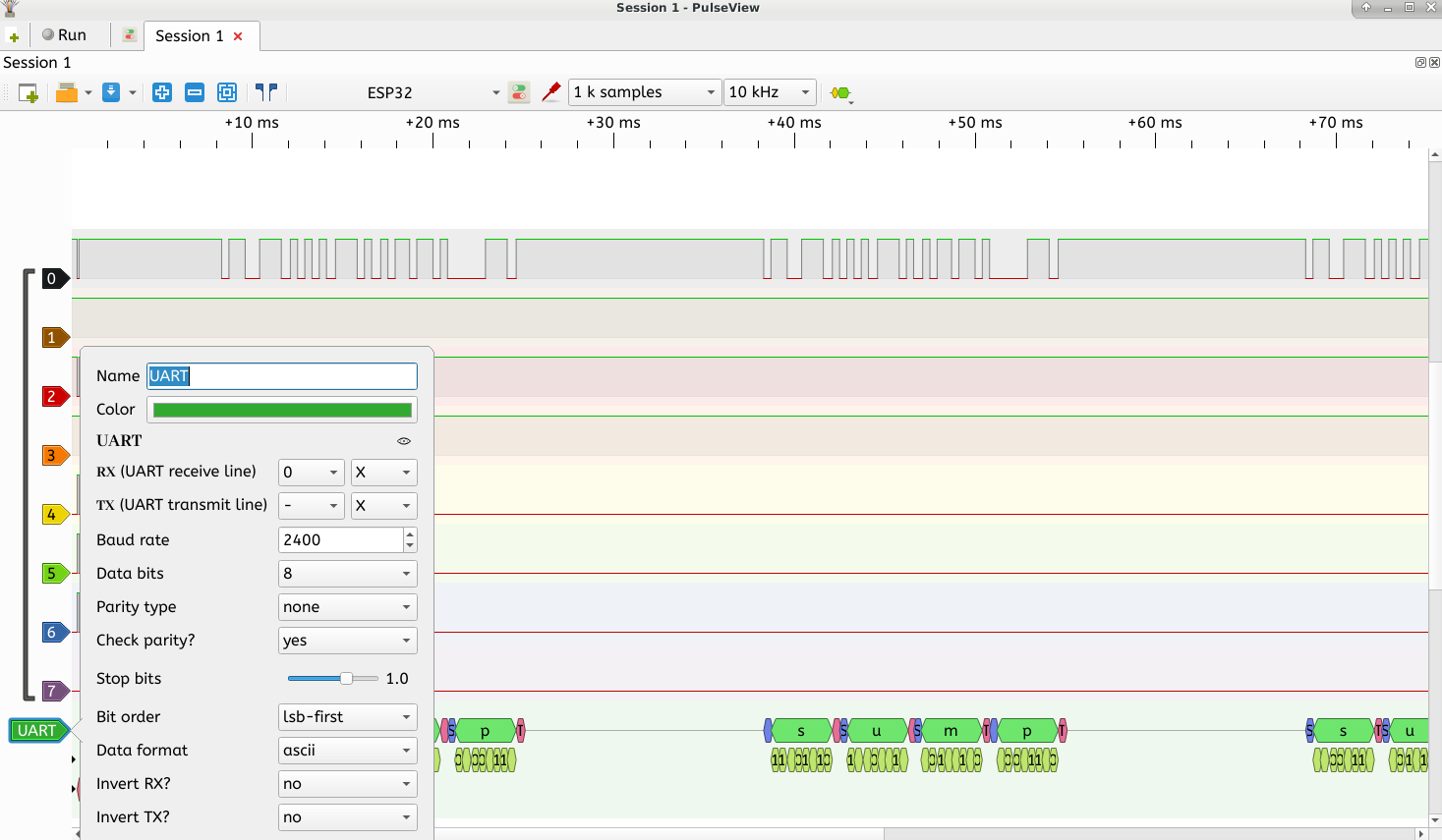

PulseView (sometimes abbreviated as "PV") is a Qt based logic analyzer, oscilloscope and MSO GUI for sigrok.

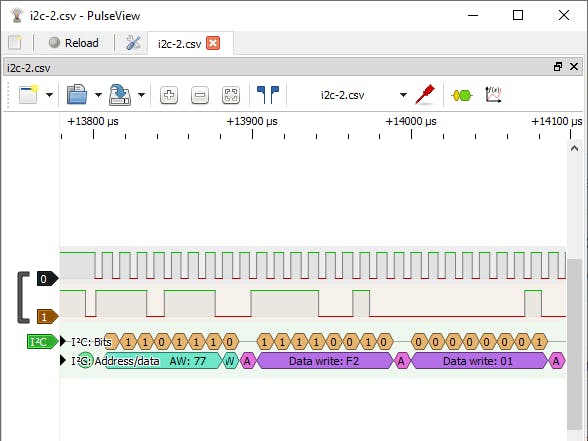

使用一个RP2040 Pico做基本的逻辑分析仪,将数据导出到CSV格式使用sigrok/Pulseview读取显示

<code c> /** * Modified by Mark Komus 2021 * Now repeatedly captures data and outputs to a CSV format * Intended to be imported by sigrok / PulseView * */ /** * * Original code (found in the pico examples project): * * Copyright (c) 2020 Raspberry Pi (Trading) Ltd. * * SPDX-License-Identifier: BSD-3-Clause */ #include <stdio.h> #include <string.h> #include <ctype.h> #include <stdlib.h> #include "pico/stdlib.h" #include "hardware/pio.h" #include "hardware/dma.h" #include "hardware/clocks.h" const uint LED_PIN = 25; // Defaults - just what I tested with any legal value is fine uint CAPTURE_PIN_BASE = 17; uint CAPTURE_PIN_COUNT = 2; uint CAPTURE_N_SAMPLES = 200000; float FREQ_DIV = 125.0f; // Divide 125Mhz by this to get your freq uint FREQUENCY = 1000000; bool TRIGGER = false; // true = high : false = low uint offset; struct pio_program *capture_prog_2; void logic_analyser_init(PIO pio, uint sm, uint pin_base, uint pin_count, float div) { // Load a program to capture n pins. This is just a single `in pins, n` // instruction with a wrap. uint16_t capture_prog_instr = pio_encode_in(pio_pins, pin_count); struct pio_program capture_prog = { .instructions = &capture_prog_instr, .length = 1, .origin = -1 }; capture_prog_2 = &capture_prog; offset = pio_add_program(pio, &capture_prog); // Configure state machine to loop over this `in` instruction forever, // with autopush enabled. pio_sm_config c = pio_get_default_sm_config(); sm_config_set_in_pins(&c, pin_base); sm_config_set_wrap(&c, offset, offset); sm_config_set_clkdiv(&c, div); sm_config_set_in_shift(&c, true, true, 32); sm_config_set_fifo_join(&c, PIO_FIFO_JOIN_RX); pio_sm_init(pio, sm, offset, &c); } void logic_analyser_arm(PIO pio, uint sm, uint dma_chan, uint32_t *capture_buf, size_t capture_size_words, uint trigger_pin, bool trigger_level) { pio_sm_set_enabled(pio, sm, false); pio_sm_clear_fifos(pio, sm); dma_channel_config c = dma_channel_get_default_config(dma_chan); channel_config_set_read_increment(&c, false); channel_config_set_write_increment(&c, true); channel_config_set_dreq(&c, pio_get_dreq(pio, sm, false)); dma_channel_configure(dma_chan, &c, capture_buf, // Destinatinon pointer &pio->rxf[sm], // Source pointer capture_size_words, // Number of transfers true // Start immediately ); pio_sm_exec(pio, sm, pio_encode_wait_gpio(trigger_level, trigger_pin)); pio_sm_set_enabled(pio, sm, true); } void print_capture_buf_csv(const uint32_t *buf, uint pin_base, uint pin_count, uint32_t n_samples) { for (int sample = 0; sample < n_samples; ++sample) { for (int pin = 0; pin < pin_count; ++pin) { uint bit_index = pin + sample * pin_count; bool level = !!(buf[bit_index / 32] & 1u << (bit_index % 32)); printf(level ? "1" : "0"); printf(","); } // Blink the LED every 2500 samples to show something is happening // Good for a serial capture where you cannot see if it is still outputting if ((sample % 5000) == 0) gpio_put(LED_PIN, 1); else if ((sample % 5000) == 2500) gpio_put(LED_PIN, 0); printf("\n"); } } void read_user_input() { const int BUFFER_MAX = 11; char buffer[BUFFER_MAX+1]; while (true) { memset(buffer, 0, BUFFER_MAX+1); int bufpos = 0; int c = 0; while (c != '\r') { c = getchar_timeout_us(30000000); if (c == -1) continue; // timeout ran out if (c == '\r' || c == '\n') break; buffer[bufpos++] = (char)c; printf("%c", c); if (bufpos >= BUFFER_MAX) break; } printf("\n"); if (buffer[0] == 'p') { int pin = -1; if (isdigit(buffer[1]) != 0) { pin = strtol(buffer+1, NULL, 10); if (pin > 28) pin = -1; } if (pin == -1) printf("Pin number is not valid\n"); else { printf("Start pin is %d\n", pin); CAPTURE_PIN_BASE = pin; } } else if (buffer[0] == 'n') { int number = -1; if (isdigit(buffer[1]) != 0) { number = strtol(buffer+1, NULL, 10); if (number > 28) number = -1; } if (number == -1) printf("Number of pins is not valid\n"); else { printf("Total pins is %d\n", number); CAPTURE_PIN_COUNT = number; } } else if (buffer[0] == 'f') { uint freq = 0; if (isdigit(buffer[1]) != 0) { freq = strtol(buffer+1, NULL, 10); if (freq > clock_get_hz(clk_sys)) freq = 0; } if (freq < 0) printf("Frequency is not valid\n"); else { FREQUENCY = freq; FREQ_DIV = clock_get_hz(clk_sys) / (float)FREQUENCY; printf("Frequency is %d div is %f\n", FREQUENCY, FREQ_DIV); } } else if (buffer[0] == 't') { int t = -1; if (buffer[1] == 't' || buffer[1] == '1') t = 1; else if (buffer[1] == 'f' || buffer[1] == '0') t = 0; if (t < 0) printf("Trigger value is not valid\n"); else { TRIGGER = t; printf("Trigger set to %d\n", TRIGGER); } } else if (buffer[0] == 's') { int number = -1; if (isdigit(buffer[1]) != 0) { number = strtol(buffer+1, NULL, 10); if (number < 0 || number > 500000) number = -1; } if (number == -1) printf("Sample number is not valid\n"); else { printf("Sample number is %d\n", number); CAPTURE_N_SAMPLES = number; } } else if (buffer[0] == 'g') { break; } else { printf("Unknown command\n"); printf("p# - Set the first pin to receive capture data\n"); printf("n# - Set how many pins to receive capture data\n"); printf("f# - Set the freqency to capture data at in Hz\n"); printf("t(1)(0) - Set the trigger to high or low\n"); printf(" Trigger happens off first pin\n"); printf("s# - Set how many samples to capture\n"); printf("g - Go!\n"); } } } // Boost the baud rate to try to get the data out faster // Probably should just call the init with the baud rate option set #undef PICO_DEFAULT_UART_BAUD_RATE #define PICO_DEFAULT_UART_BAUD_RATE 921600 int main() { stdio_init_all(); gpio_init(LED_PIN); gpio_set_dir(LED_PIN, GPIO_OUT); uint32_t *capture_buf = 0; PIO pio = pio0; uint sm = 0; uint dma_chan = 0; while (true) { gpio_put(LED_PIN, 1); sleep_ms(1000); gpio_put(LED_PIN, 0); read_user_input(); uint32_t capture_buf_memory_size = (CAPTURE_PIN_COUNT * CAPTURE_N_SAMPLES + 31) / 32 * sizeof(uint32_t); capture_buf = malloc(capture_buf_memory_size); if (capture_buf == NULL) { printf("Error allocating capture buffer size %d\n", capture_buf_memory_size); } logic_analyser_init(pio, sm, CAPTURE_PIN_BASE, CAPTURE_PIN_COUNT, FREQ_DIV); uint32_t hz = clock_get_hz(clk_sys); printf("Clock speed is %d\n", hz); float caphz = (float)hz/FREQ_DIV; printf("Capture speed is %f.2\n", caphz); printf("Arming trigger\n"); gpio_put(LED_PIN, 1); logic_analyser_arm(pio, sm, dma_chan, capture_buf, (CAPTURE_PIN_COUNT * CAPTURE_N_SAMPLES + 31) / 32, CAPTURE_PIN_BASE, TRIGGER); dma_channel_wait_for_finish_blocking(dma_chan); gpio_put(LED_PIN, 0); print_capture_buf_csv(capture_buf, CAPTURE_PIN_BASE, CAPTURE_PIN_COUNT, CAPTURE_N_SAMPLES); pio_remove_program(pio, capture_prog_2, offset); free(capture_buf); } } </code>
