关于树莓派计算模块4
发布时间
2020年10月19日
产品页面
技术指标
Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
OpenGL ES 3.0 graphics
Options for 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on variant)
Options for 0GB ("Lite"), 8GB, 16GB or 32GB eMMC Flash memory (depending on variant)
Option for fully certified radio module:
2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless;
Bluetooth 5.0, BLE;
On-board electronic switch to select either external or PCB trace antenna
相关文档

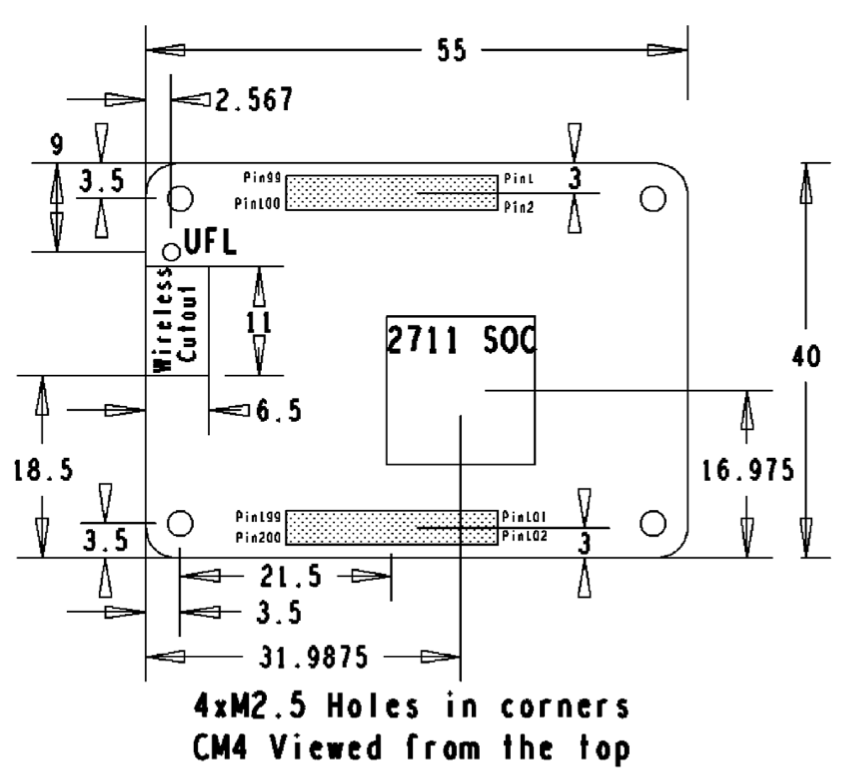

物理尺寸

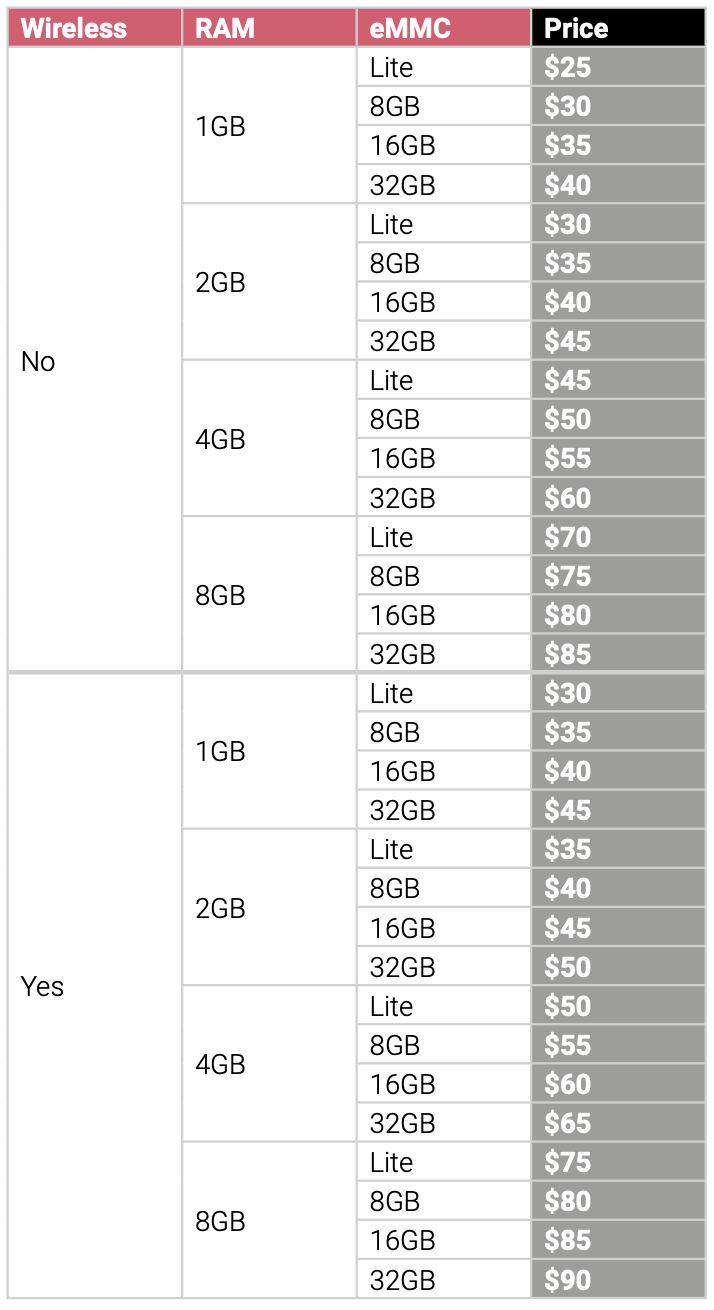

销售价格
技术指标
External power connector (+12V, +5V)
2 x full-size HDMI 2.0 connectors
2 x USB 2.0 connectors, with header for two additional connectors
Gigabit Ethernet RJ45 with PoE support
Micro USB socket for updating Compute Module 4
MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
PCIe Gen 2 x1 socket
Standard fan connector
2 x MIPI DSI display FPC connectors (22-pin 0.5 mm pitch cable)
2 x MIPI CSI-2 camera FPC connectors (22-pin 0.5 mm pitch cable)
Standard Raspberry Pi HAT connectors
Real-time clock with battery socket and ability to wake Compute Module 4
Various jumpers to disable specific features, e.g. wireless connectivity, EEPROM writing
相关文档

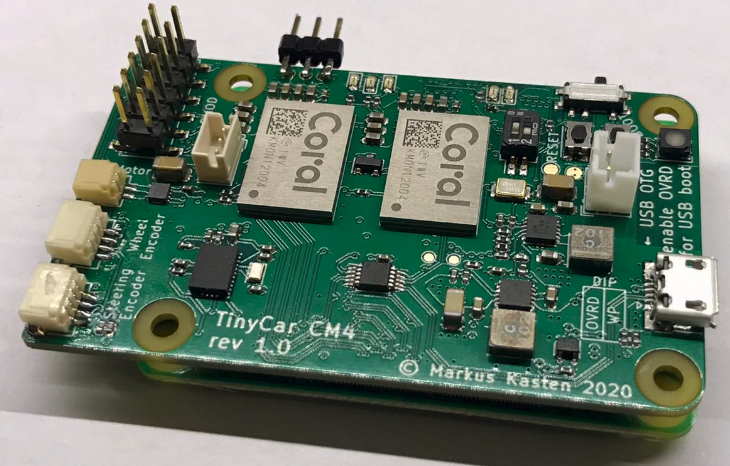

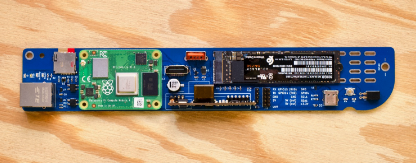

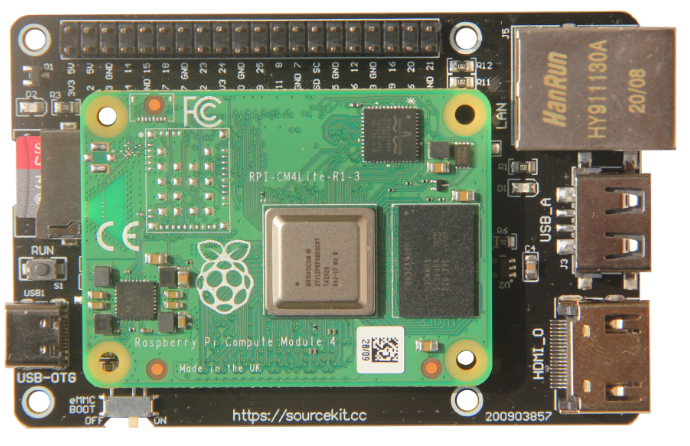

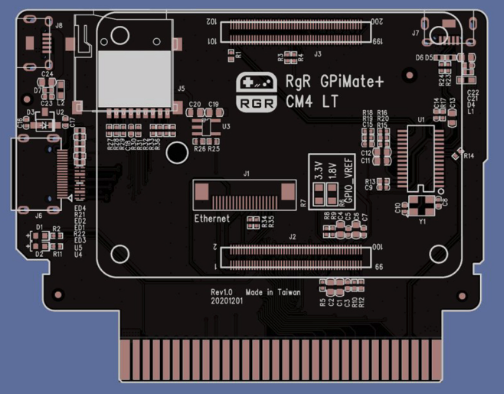

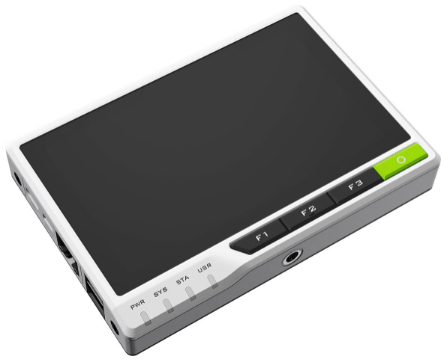

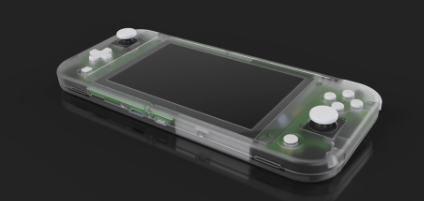

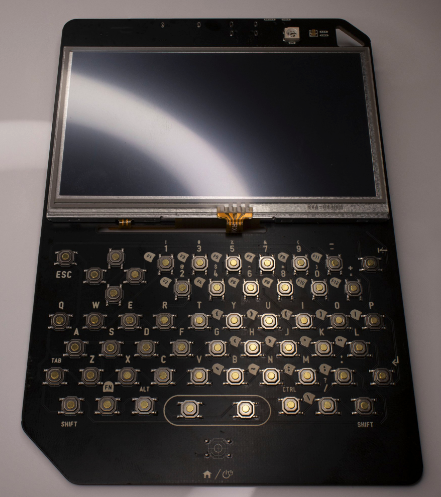

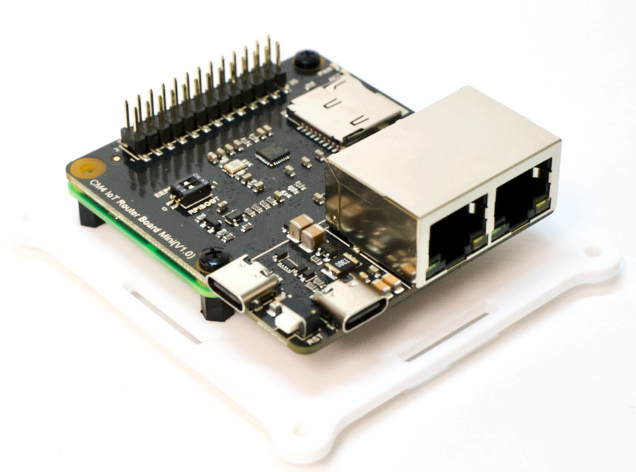

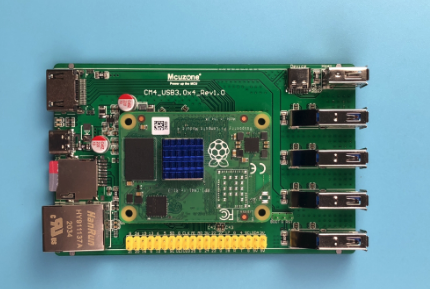

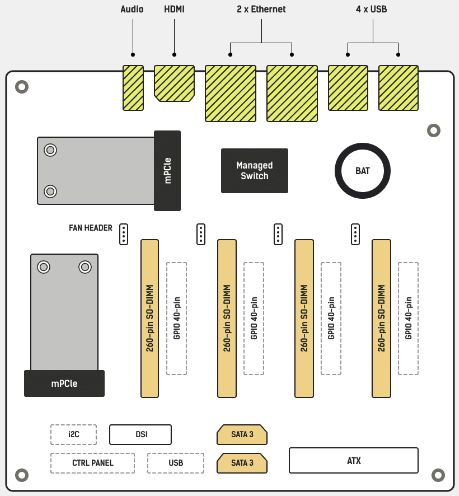

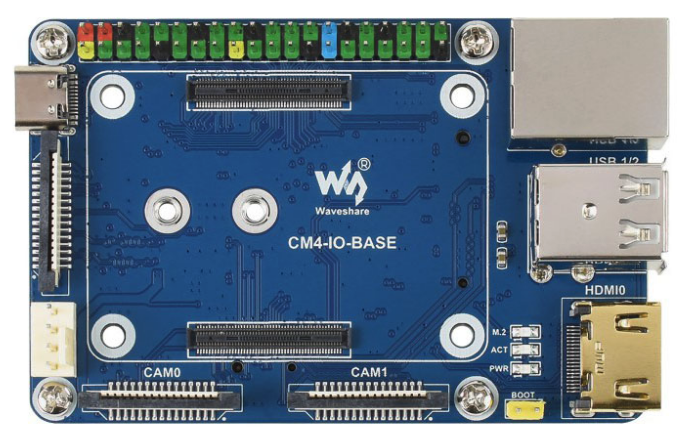

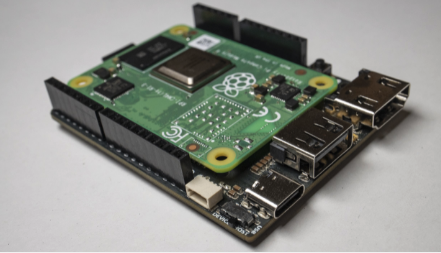

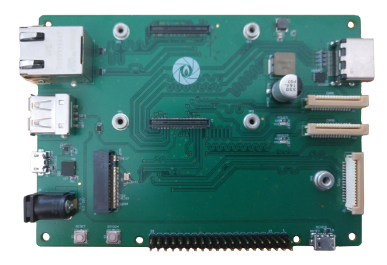

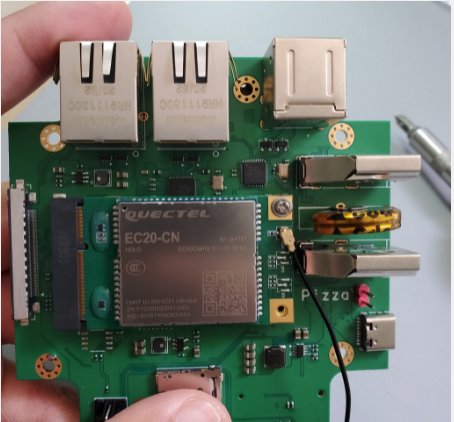

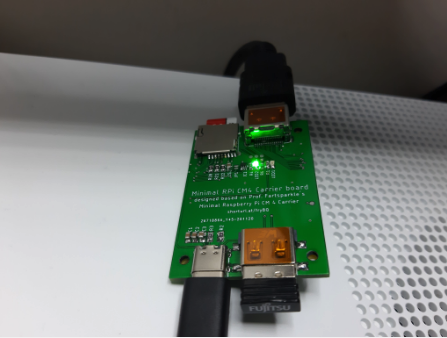

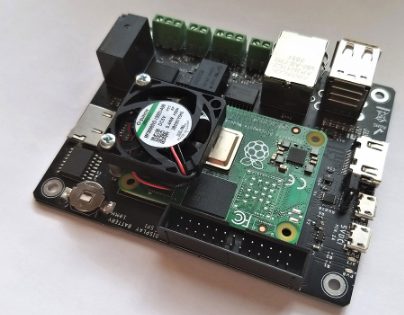

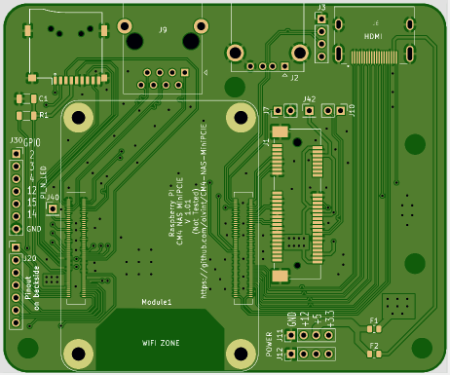

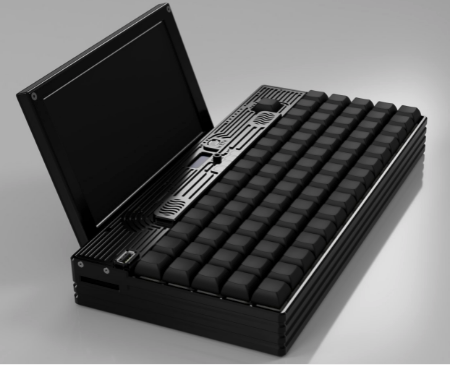

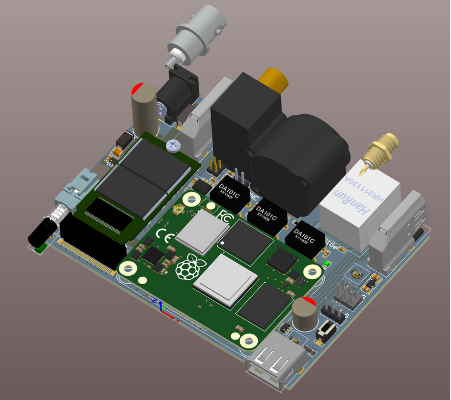

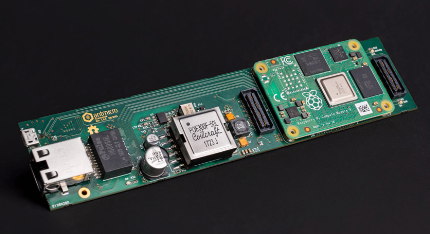

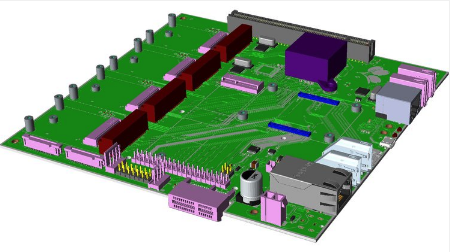

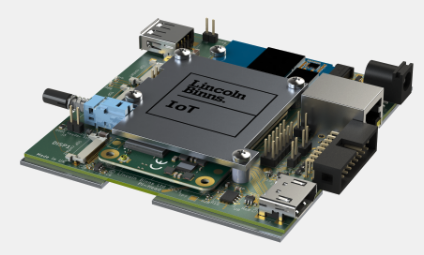

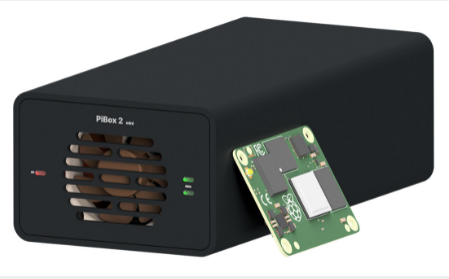

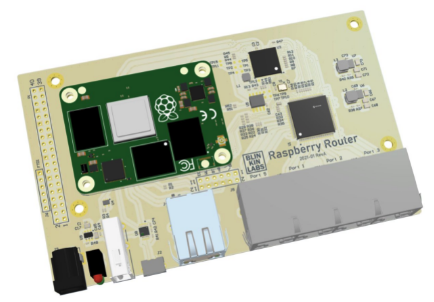

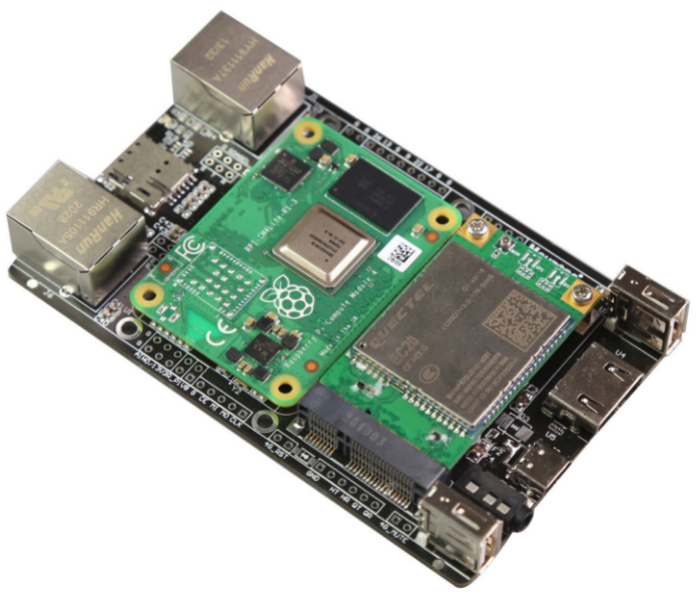

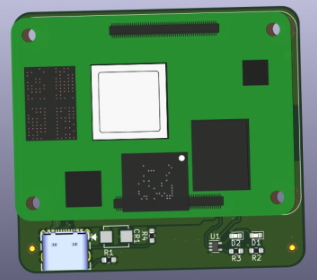

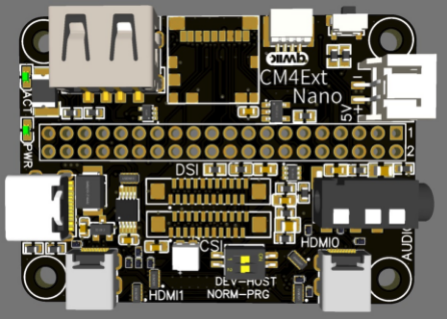

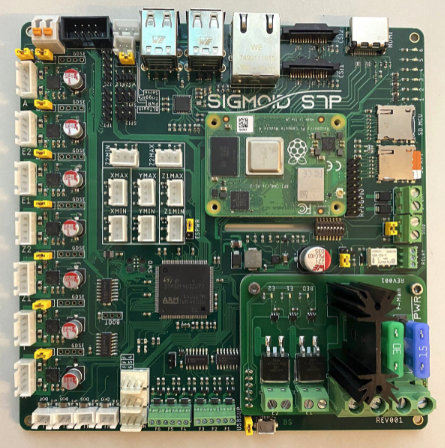

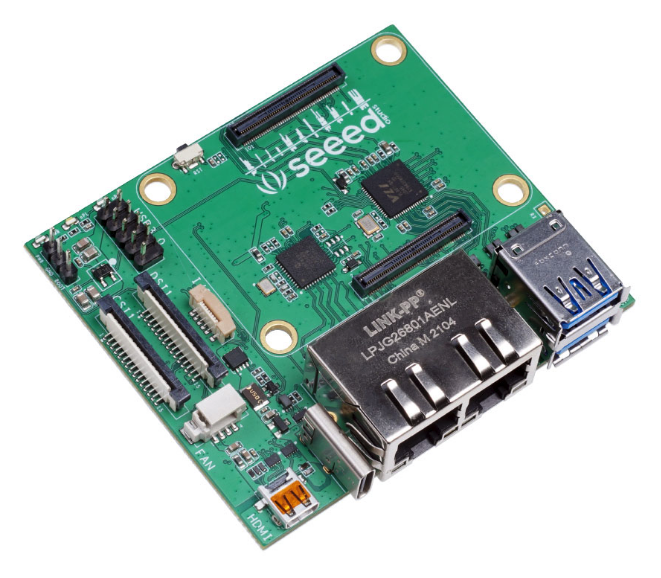

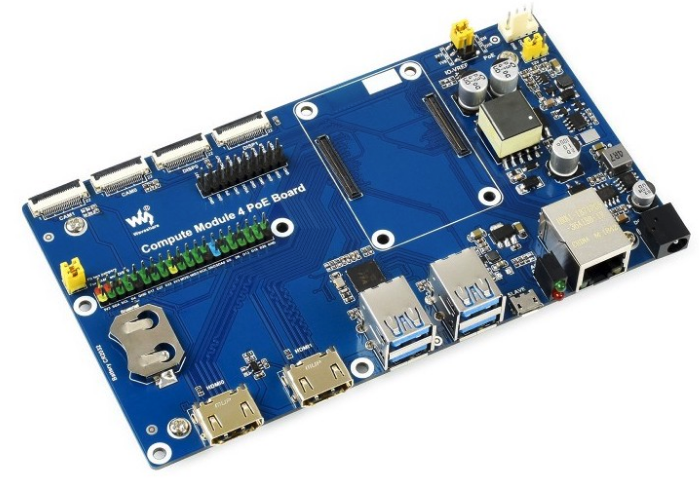

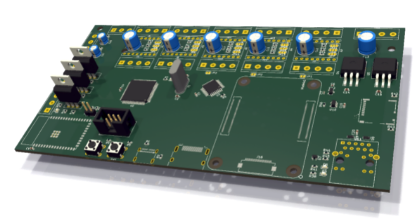

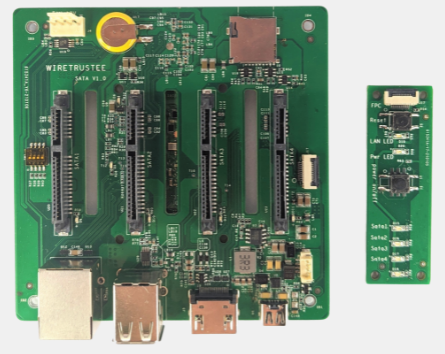

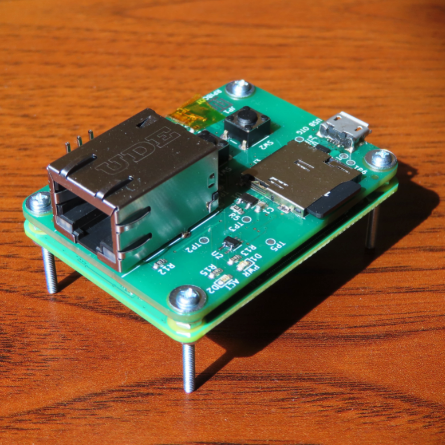

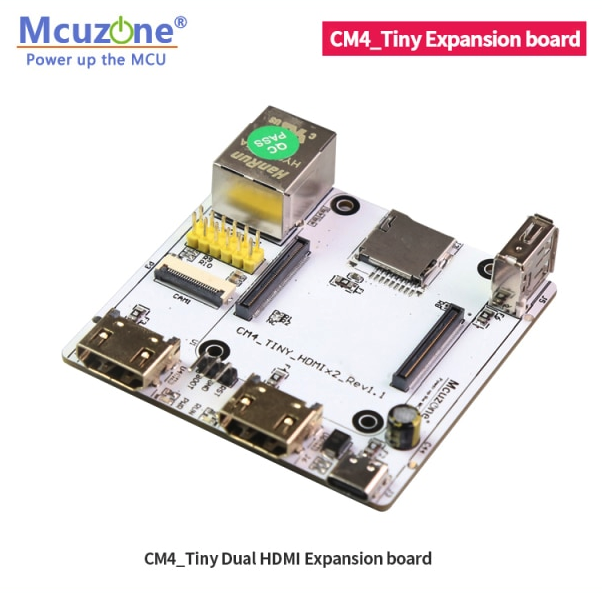

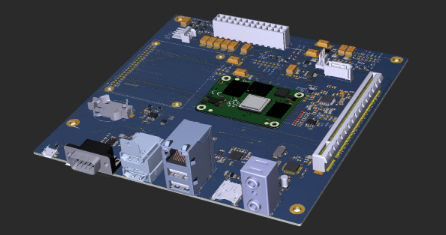

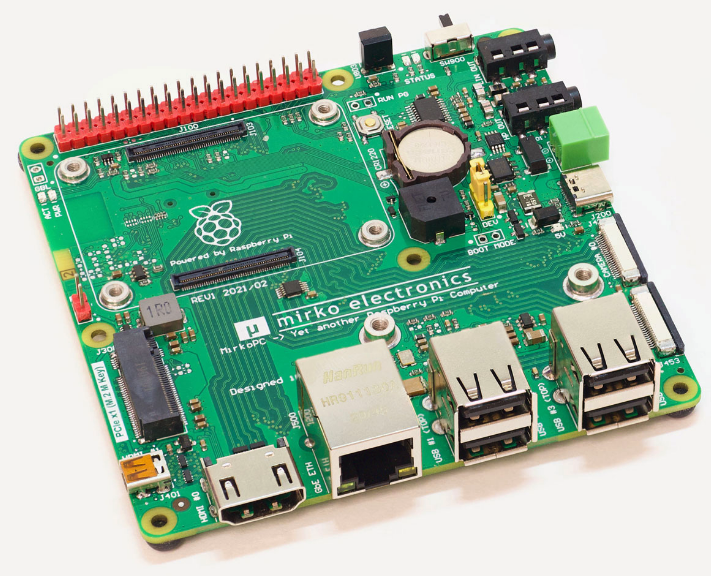

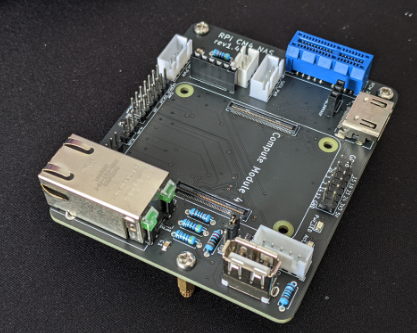

扩展板
