用Xilinx的Zynq-7010设计的ZynqBerryZero模块

用Xilinx的Zynq-7010设计的ZynqBerryZero模块

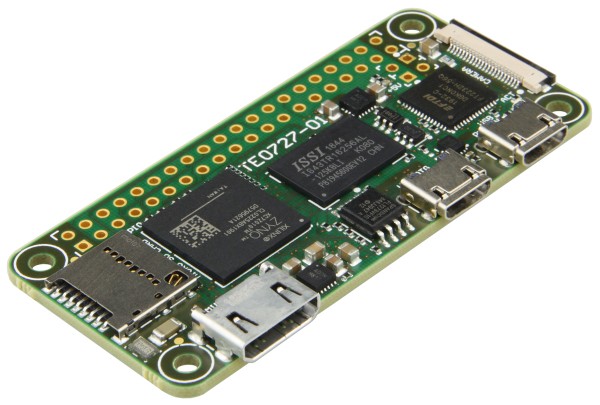

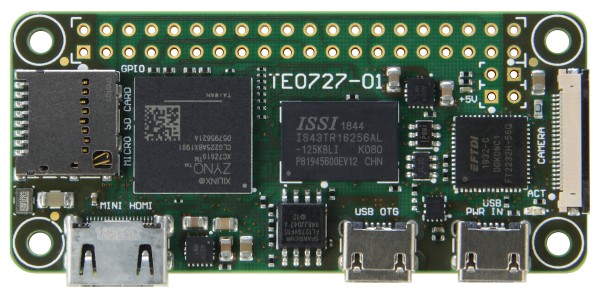

产品图片
主要功能及特性
The ZynqBerryZero is a SoC module with integrated Xilinx Zynq-7010 FPGA and the form factor of the Raspberry Pi Zero. Furthermore, the 3 x 6.5 cm small board is equipped with 512 MByte DDR3L SDRAM, 16 MByte Flash and various connectors, such as two microUSB connectors, a micro SD card slot, a mini HDMI and a CSI-2 connector (camera).
A total of 26 GPIO are provided by robust high-speed connectors.
关键特性
Xilinx Zynq XC7Z010-1CLG225C FPGA
Raspberry Pi Zero form factor
512 MByte DDR3L SDRAM
16 MByte Flash memory
40 pin HAT header
Total I/O: 26 GPIO
1 x micro USB for JTAG/UART
1 x micro USB 2.0
Micro SD card slot
Mini HDMI connector, type C
CSI-2 connector (camera)
