MSP430F2002

MSP430F2002
基本信息
描述:16 位超低功耗微控制器,2kB 闪存、128B RAM、10 位 SAR A/D、用于 SPI/I2C 的 USI
器件类别: 微控制器 (MCU)

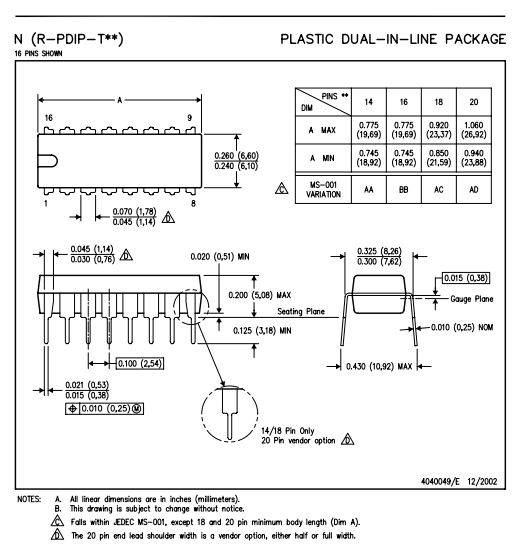

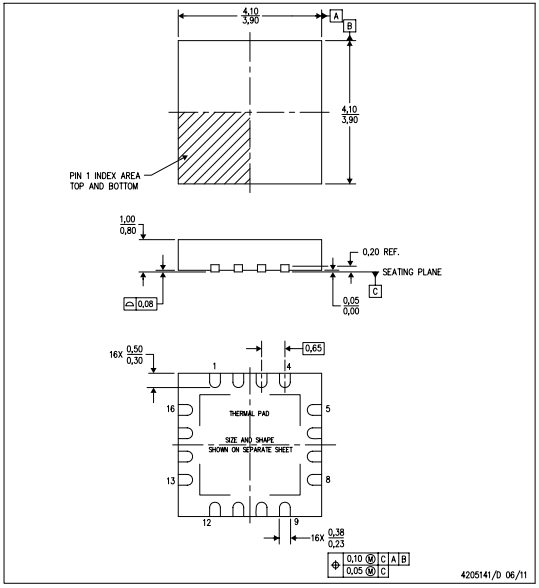

产品图片
产品结构框图
产品特性

+ Low Supply Voltage Range 1.8 V to 3.6 V + Ultra-Low Power Consumption + Active Mode: 220 µA at 1 MHz, 2.2 V + Standby Mode: 0.5 µA Off Mode (RAM Retention): 0.1 µA + Five Power-Saving Modes + Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs + 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time +Basic Clock Module Configurations: + Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1% +Internal Very Low-Power Low-Frequency Oscillator +32-kHz Crystal +External Digital Clock Source + 16-Bit Timer_A With Two Capture/Compare Registers +On-Chip Comparator for Analog Signal Compare Function or Slope A/D (MSP430F20x1) +10-Bit 200-ksps A/D Converter With Internal Reference, Sample-and-Hold, and Autoscan (MSP430F20x2) +16-Bit Sigma-Delta A/D Converter With Differential PGA Inputs and Internal Reference (MSP430F20x3) +Universal Serial Interface (USI) Supporting SPI and I2C (MSP430F20x2 and MSP430F20x3) +Brownout Detector +Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse +On-Chip Emulation Logic With Spy-Bi-Wire Interface

主要参数

Non-volatile memory (kB) RAM (KB) ADC ADC: channels (#) GPIO pins (#) I2C SPI UART Comparator channels (#) Package Group Approx. price (US$) USB Timers - 16-bit Bootloader (BSL) Package size: mm2:W x L (PKG)

设计工具
设计参考
参考设计
器件:TIDA-00774
参考设计简述:效率大于 98% 的 18V/1kW、160A 峰值电流、高功率密度无刷电机驱动器参考设计
系统框图
成品图片
参考设计
器件:TIDA-01226
参考设计简述:采用 DLP Pico 技术的紧凑型全高清 1080p(高达 16 安培)投影显示参考设计
系统框图
成品图片
评估板信息
评估板型号:MSP-TS430PW14
评估板图片
评估板介绍

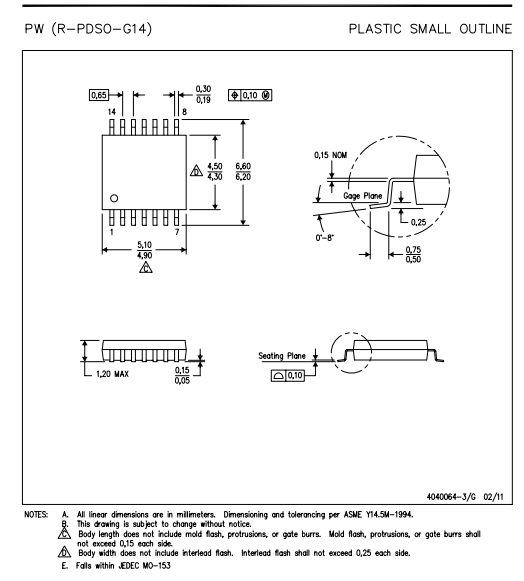

MSP-TS430PW14 是独立的 ZIF 插座目标板,它用于通过 JTAG 接口或 Spy Bi-Wire(2 线 JTAG)协议对 MSP430 系统内置器件进行编程和调试。该开发板支持采用 14 引脚 TSSOP 封装(TI 封装代码:PW)的部分 MSP430 闪存部件。请查看目标器件文档以找到正确的目标板。

购买渠道
现货分销商网站购买
授权分销商
电话:23073288
邮编:200122
传真:63509583
地址:上海市浦东新区世纪大道1568号中建大厦第32层
地址:2211 South 47th Street Phoenix, AZ USA 85034
电话:480-643-2000
邮箱:Asia-ADS-Contact@Avnet.com
