关于树莓派4B/8GB

脑图

关于树莓派4B/8GB

官方发布的信息

8GB Raspberry Pi 4 on sale now at $75

发布日期

2020年5月28日

内存扩大到8GB

支持64位操作系统

Ubuntu

Gentoo

价格：75美元

OKDO上的信息

描述

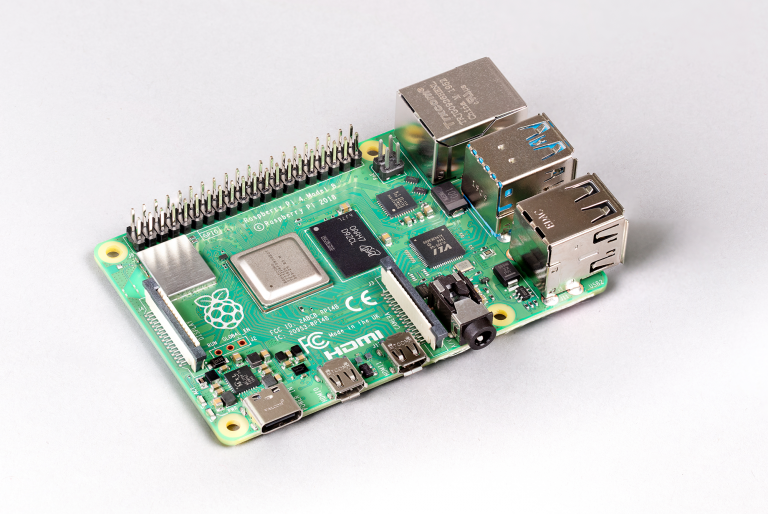

The 8GB version of Raspberry Pi 4 Model B is the newest member of the fourth-generation Raspberry Pi family. It is a high-performance general-purpose computer, incorporating a quad-core 64-bit ARM Cortex-A72 CPU. Other key features include: two micro-HDMI ports supporting resolutions up to 4K; USB 3.0; a USB-C connector for power input; true Gigabit Ethernet with PoE capability (requires additional PoE HAT); dual-band wireless networking and Bluetooth 5.0. Together these make this board an ideal fit for your next SBC-based IoT project.

Don’t forget to download the newest version of NOOBS for the Raspberry Pi 4 from the Pi Foundation at https://www.raspberrypi.org/downloads/noobs/

详细信息

Speedier Processor

The new model is a high-performance general-purpose computer, incorporating an improved quad-core 64-bit ARM Cortex-A72 CPU to rival desktop computers. For the first time, the Pi 4 is available in a choice of memory sizes, so with up to 8GB of RAM (LPDDR4), you will see your Pi being able to carry out much more complicated tasks easily.

Improved Networking

With true Gigabit Ethernet and PoE capability (requires additional PoE HAT); 2.4GHz and 5GHz 802.11b/g/n/ac Wi-Fi and Bluetooth 5.0 with up to four times the range of the old specification. All together these make the Raspberry Pi 4 Model B board an ideal fit for your next SBC-based IoT project.

Upgraded USB Capacity and Power

Pi 4 has four USB ports, two USB 2.0 ports and two of which have been upgraded to USB 3.0. The board has a USB Type-C connector for power input, instead of the Micro USB connector the Raspberry Pi 3 had, so you can consolidate your cable collection. The headphone jack has made a return too!

Dual Video Output

Two micro-HDMI ports, replace the single full-size HDMI connector on previous versions, allowing the Pi 4 to support 2 4k monitors. The Pi’s hardware decoding has also been improved to allow it to decode 4K video at 60 frames per second using HEVC encoding.

Backwards Compatible

You don’t have to worry about the Pi 4 Model B not working with any of your existing pi projects, as the 40-Pin GPIO header and software is fully backwards-compatible.

系统安装

预装MicroSD卡

下载最新版本的NOOBS

技术指标

BROADCOM SOC: Broadcom 2711

PROCESSOR: ARM Cortex A72

No. of CORES: Quad

CPU SPEED: 1.5GHz

MEMORY: 8GB – LPDDR4

GRAPHICS (GPU): VideoCore VI 4kp60

Video Ports: 2 x micro HDMI

USB PORTS: 2 x USB3.0 & 2 x USB2.0

GPIO HEADER: 40

A/V JACK: 3.5mm Stereo

MICRO SD CARD SLOT: Yes

MIPI CSI DISPLAY PORT: Yes

CSI CAMERA PORT: Yes

ETHERNET: Gigabit

WLAN: 802.11b/g/n/ac 2.4/5GHz

BLUETOOTH: Yes – Bluetooth 5.0

BLUETOOTH LOW ENERGY ( BLE ): Yes

PoE ENABLED: Yes

HAT COMPATIBLE: Yes

DIMENSIONS (mm): 85 x 56 x 17

WEIGHT (g): 45

POWER INPUT: 5.1V / 3A

Power Connector: USB-C
