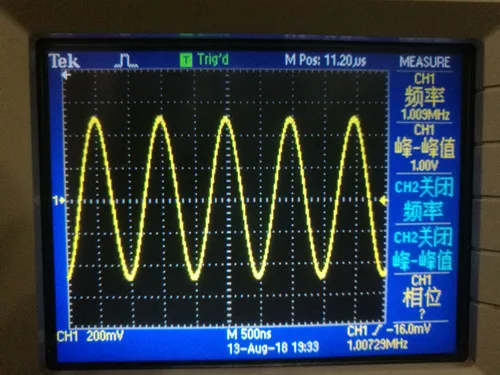

Sine-Cos

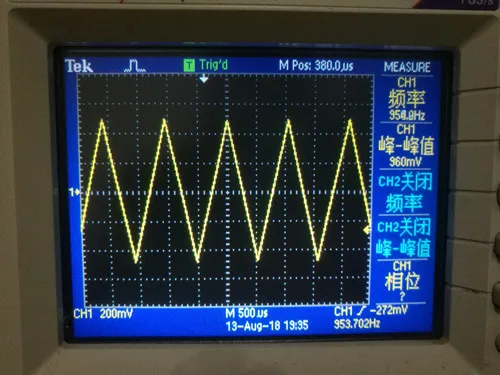

Triangle

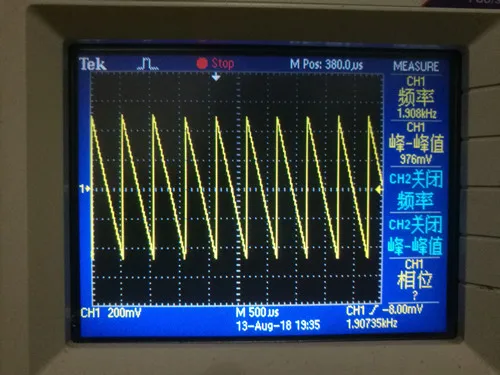

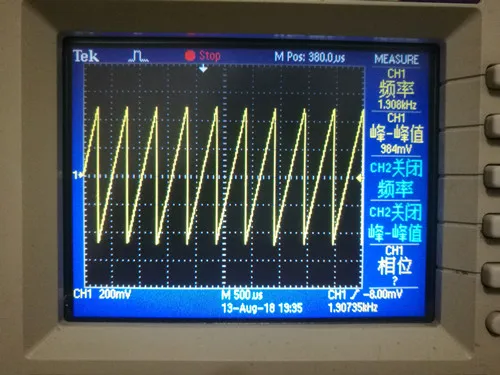

Sawtooth-Ramp (Positive and Negative)

Square with variable Duty Cycle (0.5%- 0.1 resolution)

Noise

DC constant

最小频率 : 100 mHz (subject to change)

最高频率: 10 Mhz: (a experimental output may be available which can output unfiltered Signals of up to 80Mhz)

转换率: 160 MSamples per second

直流偏移: +- 2.5VDC @ 5vpp

垂直分辨率: 2mVpp

DAC分辨率: 14bit

DAC8512

LM6142
