ICL7135

ICL7135
基本信息
描述:4 1/2 Digit, BCD Output, A/D Converter

The Intersil ICL7135 precision A/D converter, with its multiplexed BCD output and digit drivers, combines dualslope conversion reliability with 1 in 20,000 count accuracy and is ideally suited for the visual display DVM/DPM market. The 2.0000V full scale capability, auto-zero, and autopolarity are combined with true ratiometric operation, almost ideal differential linearity and true differential input. All necessary active devices are contained on a single CMOS lC, with the exception of display drivers, reference, and a clock.

器件类别:A/D转换器

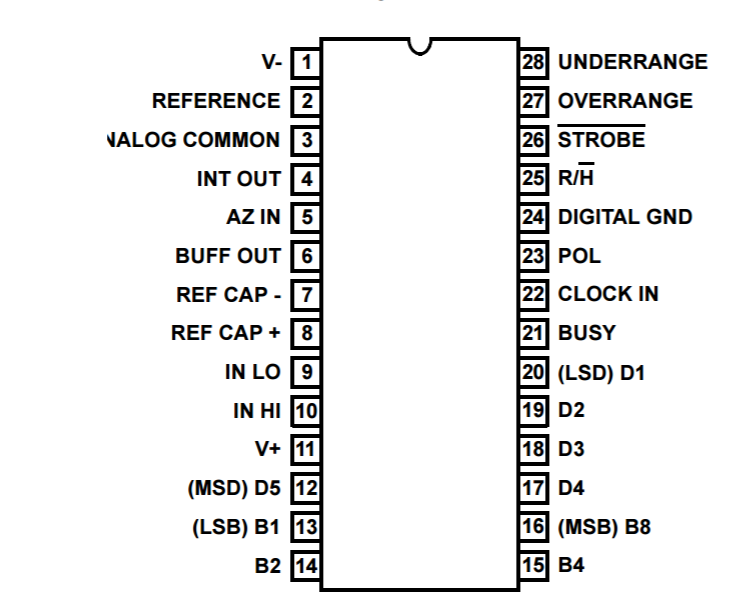

产品图片

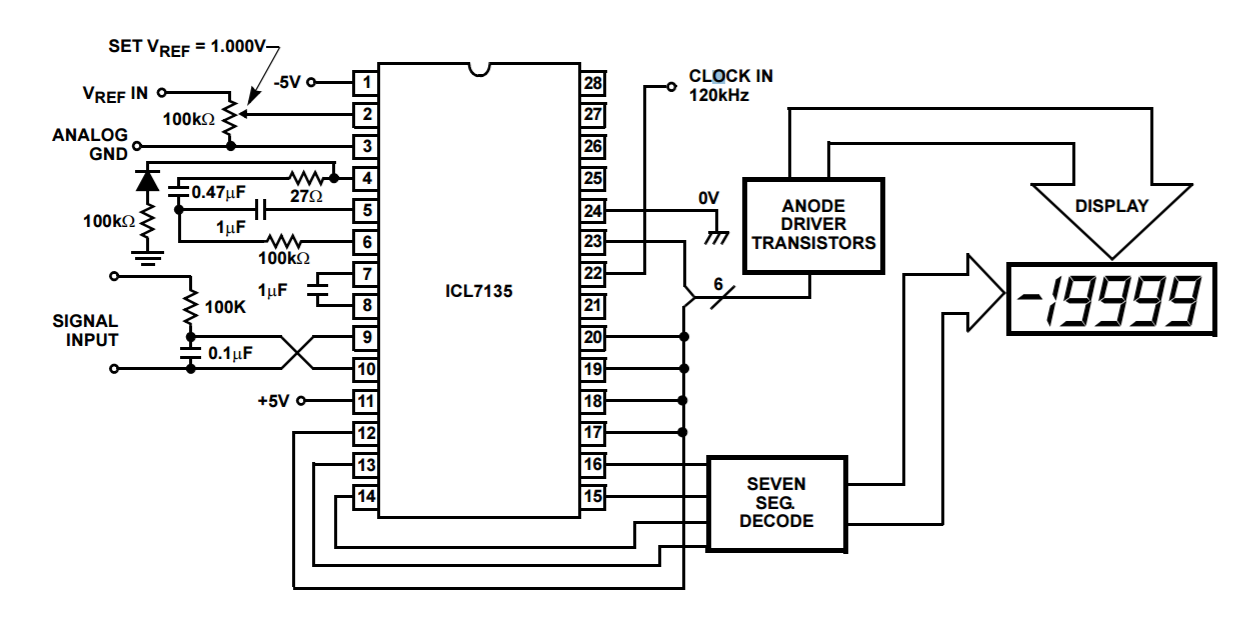

产品结构框图
产品特性

+ 精度保证为1,计数超过整个20000计数(2.0000V满量程)。 + 保证0V输入的零读数。 + 1pA典型输入漏电流。 + 真正的差分输入。 + 零计数的真正极性,用于精确的零检测。 + 需要单参考电压。 + 可用于AutoRange的超范围和欠范围号能力。 + 所有输出TTL兼容。 + 闪烁输出给出超范围的视觉指示。 + 六个辅助输入/输出可用于连接UART,微处理器或其他电路。 + 多路复用BCD输出。 + 提供无铅加退火(符合RoHS标准)。 + VIN范围为6V至40V可调输出电压,2.5V至12V输出150mA输出电流。 + 热关断和限流保护。

主要参数

+ 生产状态:Mass Production + 分辨率 (位数):4.5 + 典型转换率:2 + 兼容输出TTL + 多路复用输出 + 转换类型:Integrating + 输入电压范围 (V):0 to 0.2 or 2 + 技术:CMOS

产品应用

+ 适合视觉显示DVM / DPM市场 + 可视化直流稳压电源的开发 + 基于ICL7135和89S52单片机的数字电压表 + 台湾测试仪-交直流恒流源电路设计 + 低电阻测量仪的软硬件设计

封装
封装1:PDIP
设计工具
库/模型
CAD库文件
Ultralibrian库文件
Analogue To Digital Converter, 4.5 Bit, 2 Sps, 4 V, 6 V, Dip Rohs Compliant: Yes
ICL7135 Series 6 V Through Hole 4 1/2 Digit A/D Converter - DIP-28
ICL7135 Series 6 V UART Interface Surface Mount A/D Converter - PLCC-28
SnapEDA库文件
设计参考
参考设计简述

Since their introduction, the single-chip 31/2 digit A/D converters have been widely accepted and used in a variety of digital instrumentation applications. As the number of applications for these low-cost circuits increases, so does the number of specific questions about their operation.

参考设计简述

我国的疆域广阔,时区分布不同,海拔以及温度,湿度等气候差异都很大,实时的了解我们所处位置的气候情况对工作和生活是很重要的。尤其对一些野外工作的科研人员来说,需要测试海拔,温度,湿度等物理量作为参考因素。为了测量这些物理量需要我们携带多种测试设备,这对野外工作很不方便。为了实时方便的了解我们所处的海拔高度和天气情况,我们需要有更便捷,功能更齐全的综合测量仪器。同时可以将现场的数据送到PC,以方便今后的进一步分析和处理。

系统框图
