Arduino官方推出的FPGA+ESP32的开发板 MKR Vidor 4000
收藏
分享
脑图
Arduino官方推出的FPGA+ESP32的开发板 MKR Vidor 4000
产品介绍
With the MKR VIDOR 4000 you can configure it the way you want; you can essentially create your own controller board. It comes loaded with hardware and potential: an 8 MB SRAM; a 2 MB QSPI Flash chip — 1 MB allocated for user applications; a Micro HDMI connector; an MIPI camera connector; and Wifi & BLE powered by U-BLOX NINA W10 Series. It also includes the classic MKR interface on which all pins are driven both by SAMD21 and FPGA. Plus, it has a Mini PCI Express connector with up to 25 user programmable pins.
The FPGA contains 16K Logic Elements, 504 KB of embedded RAM, and 56 18x18 bit HW multipliers for high-speed DSP. Each pin can toggle at over 150 MHz and can be configured for functions such as UARTs, (Q)SPI, high resolution/high frequency PWM, quadrature encoder, I2C, I2S, Sigma Delta DAC, etc.
The on-board FPGA can be also used for high-speed DSP operations for audio and video processing. This board also features a Microchip SAMD21 . Communication between FPGA and the SAMD21 is seamless.
技术指标

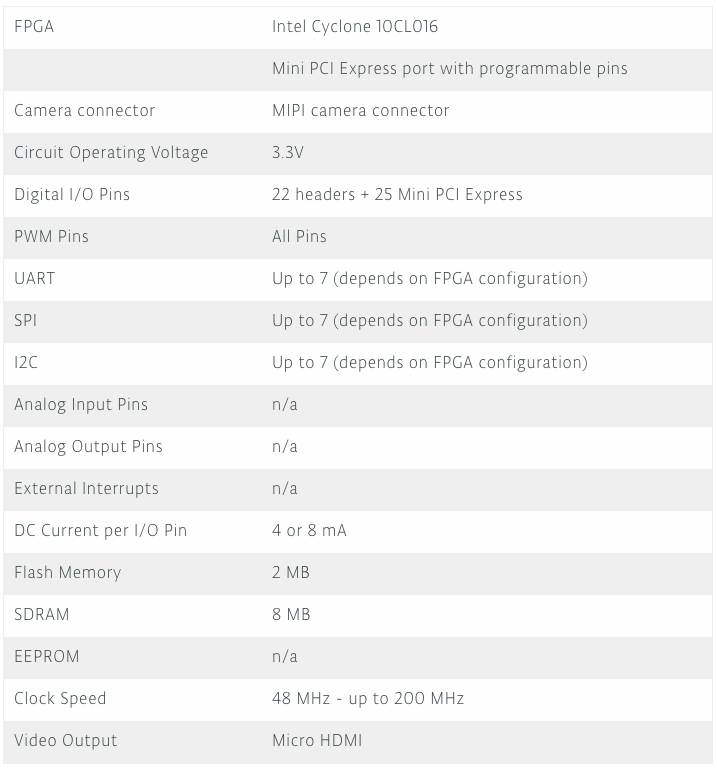

FPGA部分

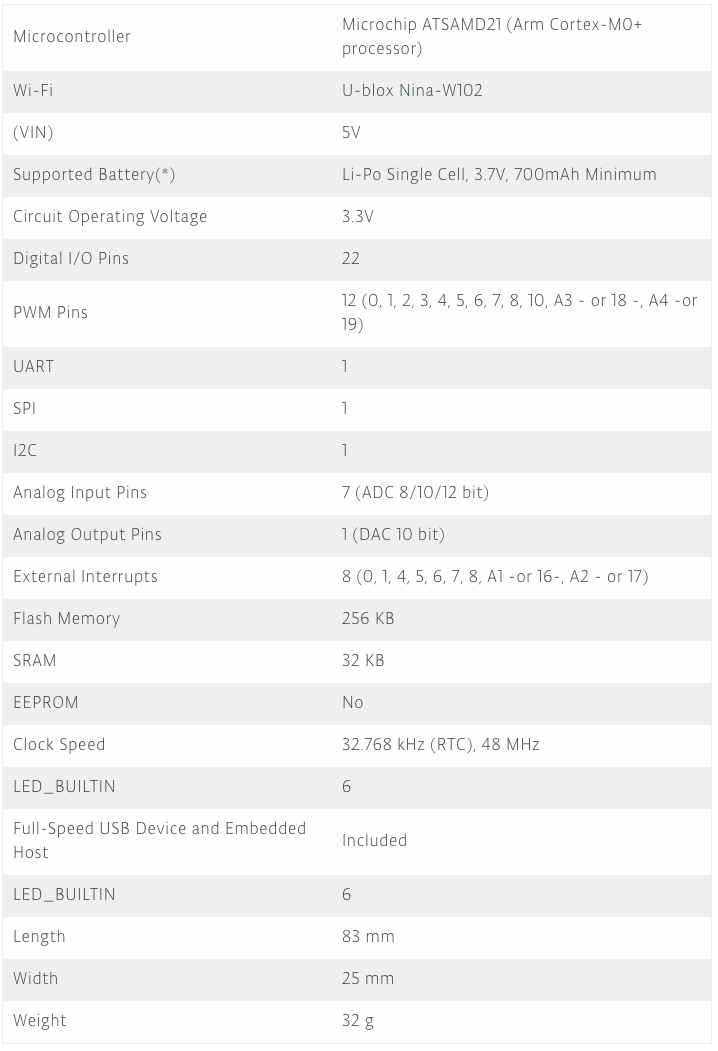

处理器及外设
产品图片
主题照片

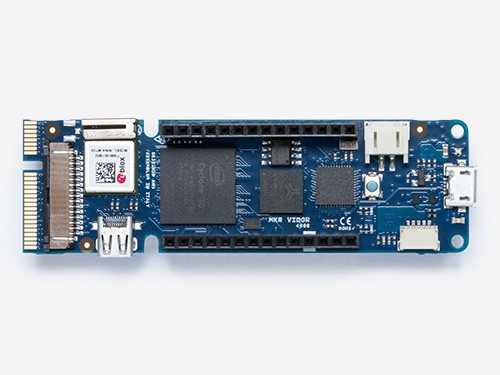

正面照片
正面照片

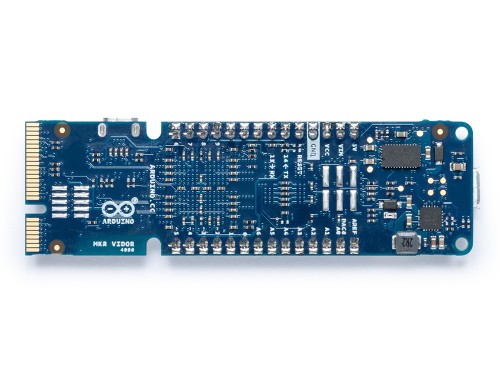

背面照片

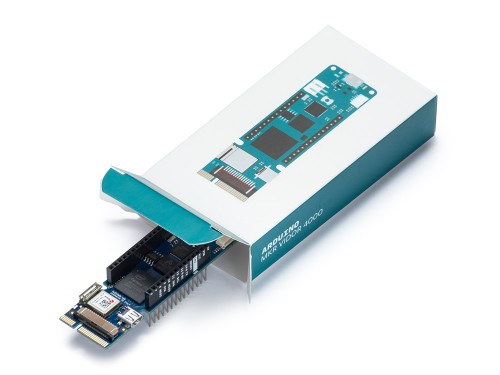

带包装盒照片
板上功能

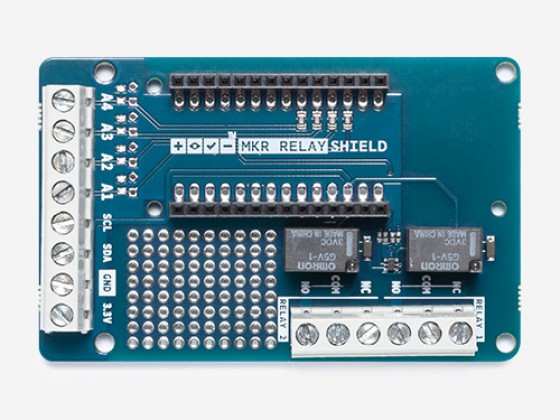

MKR继电器扩展板

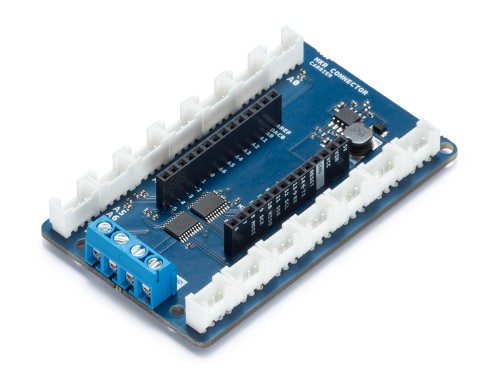

支持Grove外设的扩展板

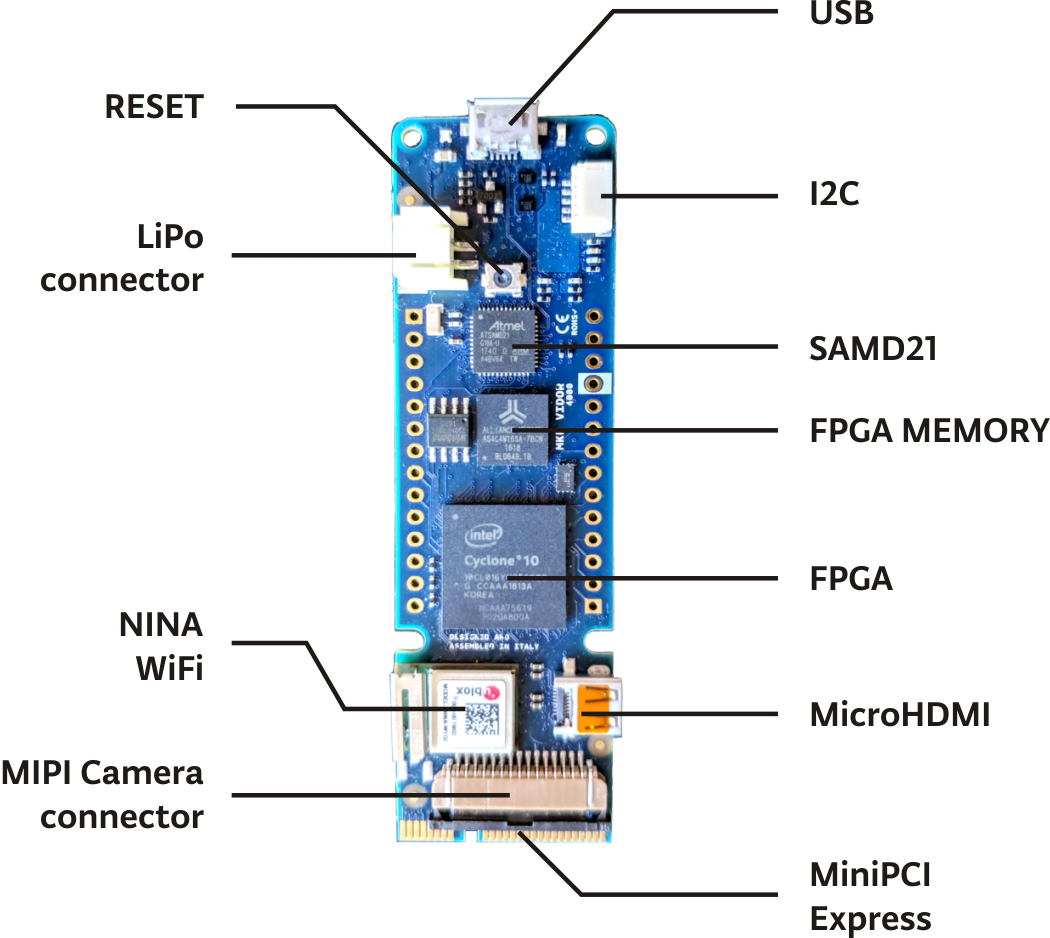

主要器件
FPGA
16K LEs
504Kbit 嵌入式RAM
56个18*18硬件乘法器用于高速DSP
每个管脚都可以以150MHz的速度翻转,并配置成为UARTS、(Q)SPI、高分辨率/高频率的PWM、正交编码、I2C、I2S、Sigma Delta DAC等
板上的FPGA可用于音视频的高速DSP处理
处理器
无线模块
U-Blox NINA W102模块
使用ESP32芯片
支持WiFi和BLE
8MB SDRAM
2MB QSPI Flash(1MB用于应用程序)
Micro HDMI连接器
MIPI照相机连接
MiniPCI Express 连接器
设计文档
购买渠道
官网:$74.9(不含税)
