Trenz推出的三款基于MAX10的数据采集模块

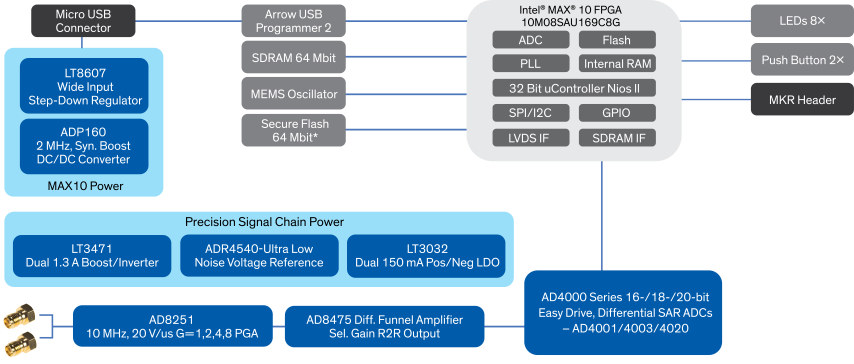

功能框图1

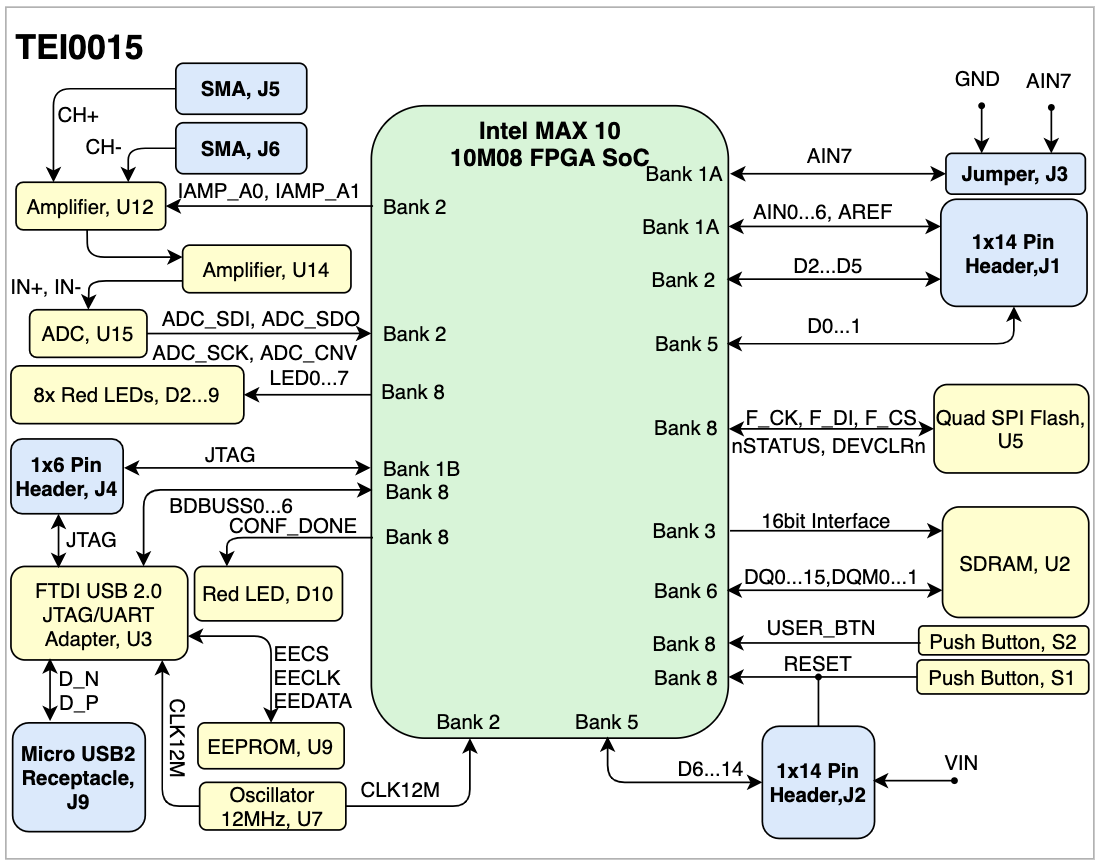

功能框图2

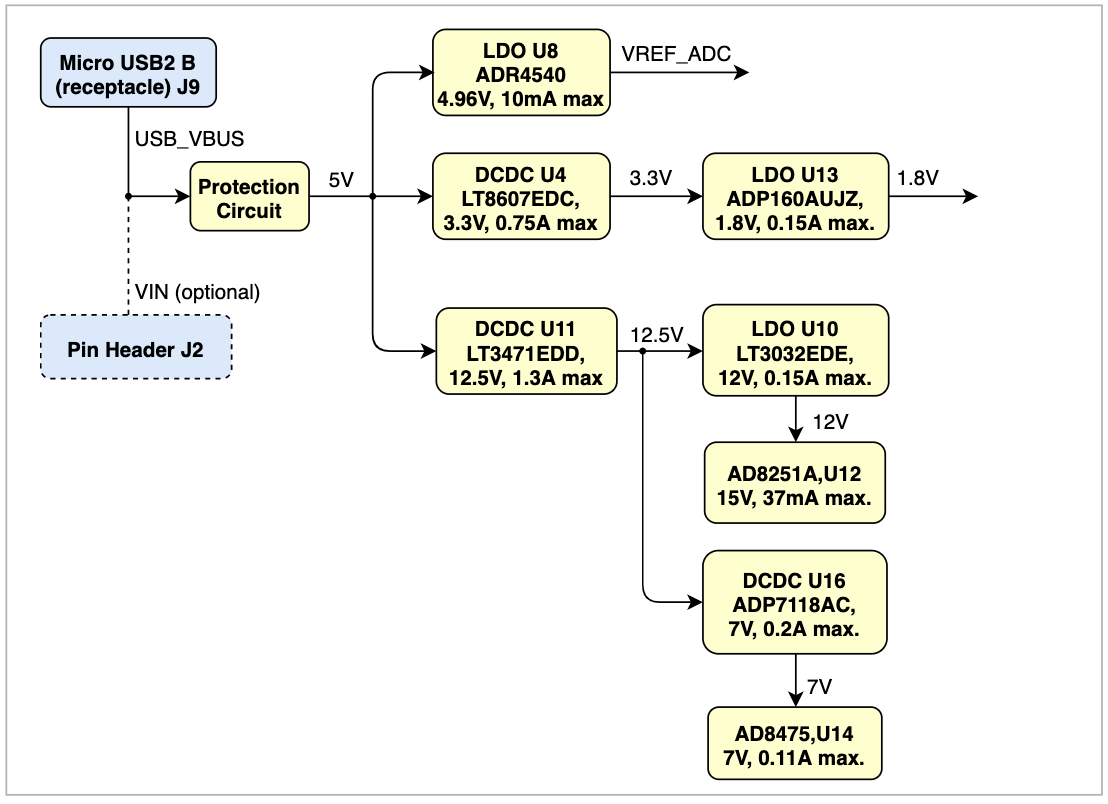

电源拓扑
TEI0015 - AnalogMAX DAQ1
2.5 x 8.65 cm FPGA module with Intel MAX10 FPGA and 18-Bit, 2 MSPS ADC
AnalogMAX variant with AD4003 (high accuracy, high speed and low power 18-bit SAR ADC)
简介
Based on Analog Devices' AD4000 Series 16-/18-/20-Bit Easy Drive, Differential SAR ADCs
AnalogMAX-DAQ1 is a high-performance, high-accuracy data acquisition platform that meets power, footprint, and reliability requirements of measurement instruments in industrial, medical, and scientific applications. This platform is an ideal tool to develop products that enhance the efficiency of field testing and require accurate and reliable operation over long periods of time. The non-volatile low-cost Intel® MAX® 10 FPGA offers 8K Logic Elements (LEs) and a flexible environment to customize designs for a variety of use cases.
优势
- High-accuracy analog front-end: Ideal for applications requiring accurate data capture at high throughputs
- Flexible platform: Based on the programmable Intel® MAX® 10 FPGA, easily adjusts to a wide range of use cases and production needs
- Rapid prototyping and product development: Rapid development and testing with an out-of-the-box experience that includes a Jupyter notebook demo with Python code
- Quick customization services: Add new functionality, lower BOM cost, or have the complete product designed
特性
- Intel® MAX 10 Commercial [10M08SAU169C8G]
- Package: UBGA-169
- Speed Grade: C8 (Slowest)
- Temperature: 0°C to 85°C
- Package compatible device 10M02...10M16 as assembly variant on request possible
- SDRAM Memory up to 64Mb, 166MHz
- Dual High-Speed USB to Multipurpose UART/FIFO IC
- 64 Mb Quad SPI Flash
- 4Kb EEPROM Memory
- 8x User LED
- Micro USB2 Receptacle 90
- 18 Bit 2MSPS Analog to Digital Converter
- 2x SMA Female Connector
- I/O interface: 23x GPIO
- Power Supply:
- 5V
- Dimension: 86.5mm x 25mm
- Others:
- Instrumentation Amplifier
- Differential Amplifier
- Operational Amplifier
器件
- Intel® MAX® 10 FPGA (part #:10M08SAU169C8G): Non-volatile low-cost FPGAs
- AD4000/ AD4001/ AD4003/ AD4020: 16-/18-/20-Bit Easy Drive, Differential SAR ADCs
- AD8251: 10 MHz, G = 1, 2, 4, 8 iCMOS® Programmable Gain Instrumentation Amplifier
- AD8475: Precision, Selectable Gain, Fully Differential Funnel Amplifier
- LT8607: 42 V, 750 mA Synchronous Step-Down Regulator with 2.5 μA Quiescent Current
- ADR4540: Ultra-Low-Noise, High-Accuracy 4.096 V Voltage Reference
- LT3471: Dual 1.3 A, 1.2 MHz Boost/Inverter in 3 mm × 3 mm DFN
- ADP160: Ultra-Low Quiescent Current 150 mA, CMOS Linear Regulator
应用
- Industrial
- Medical
- Instrumentation
- Scientific applications

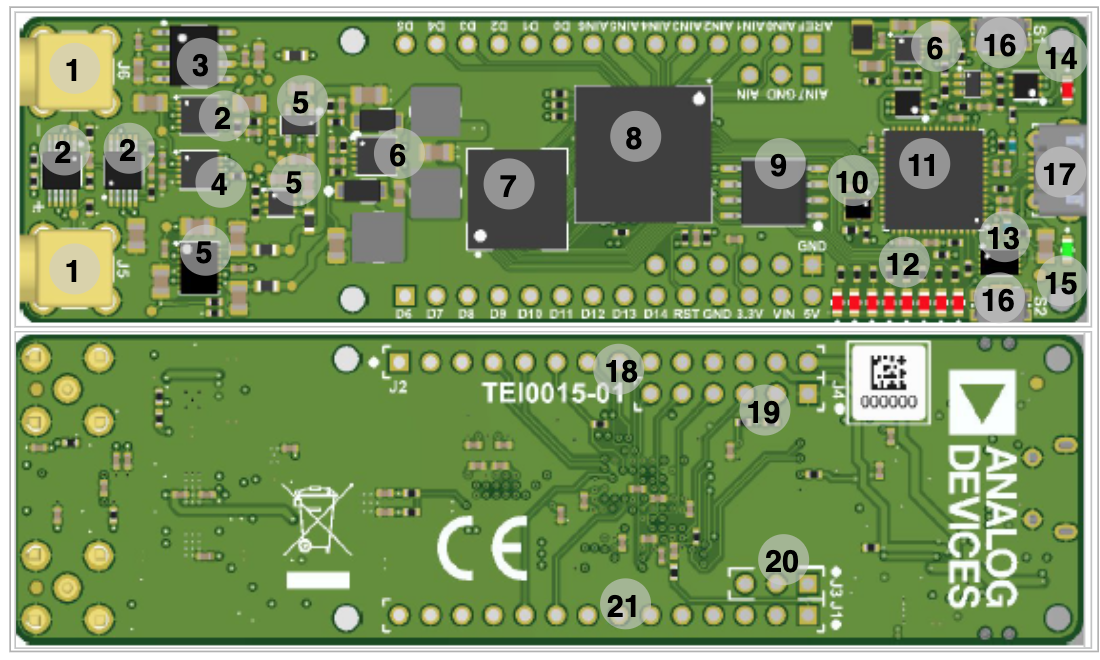

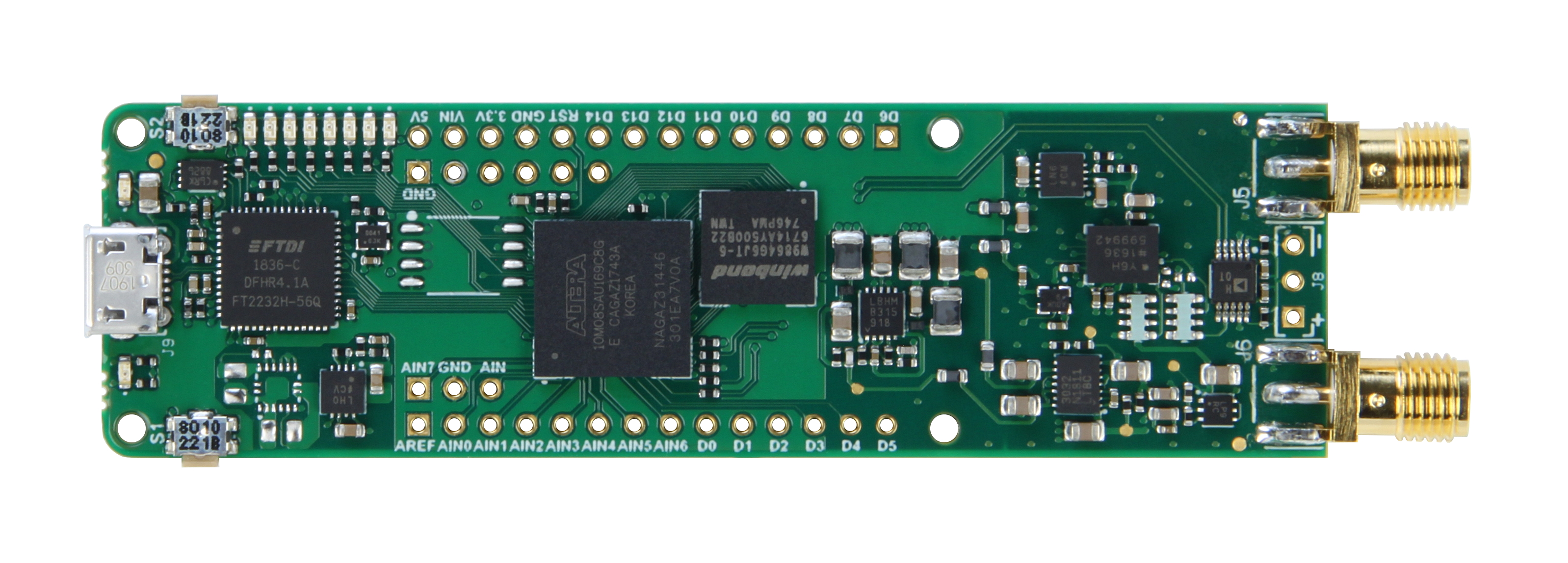

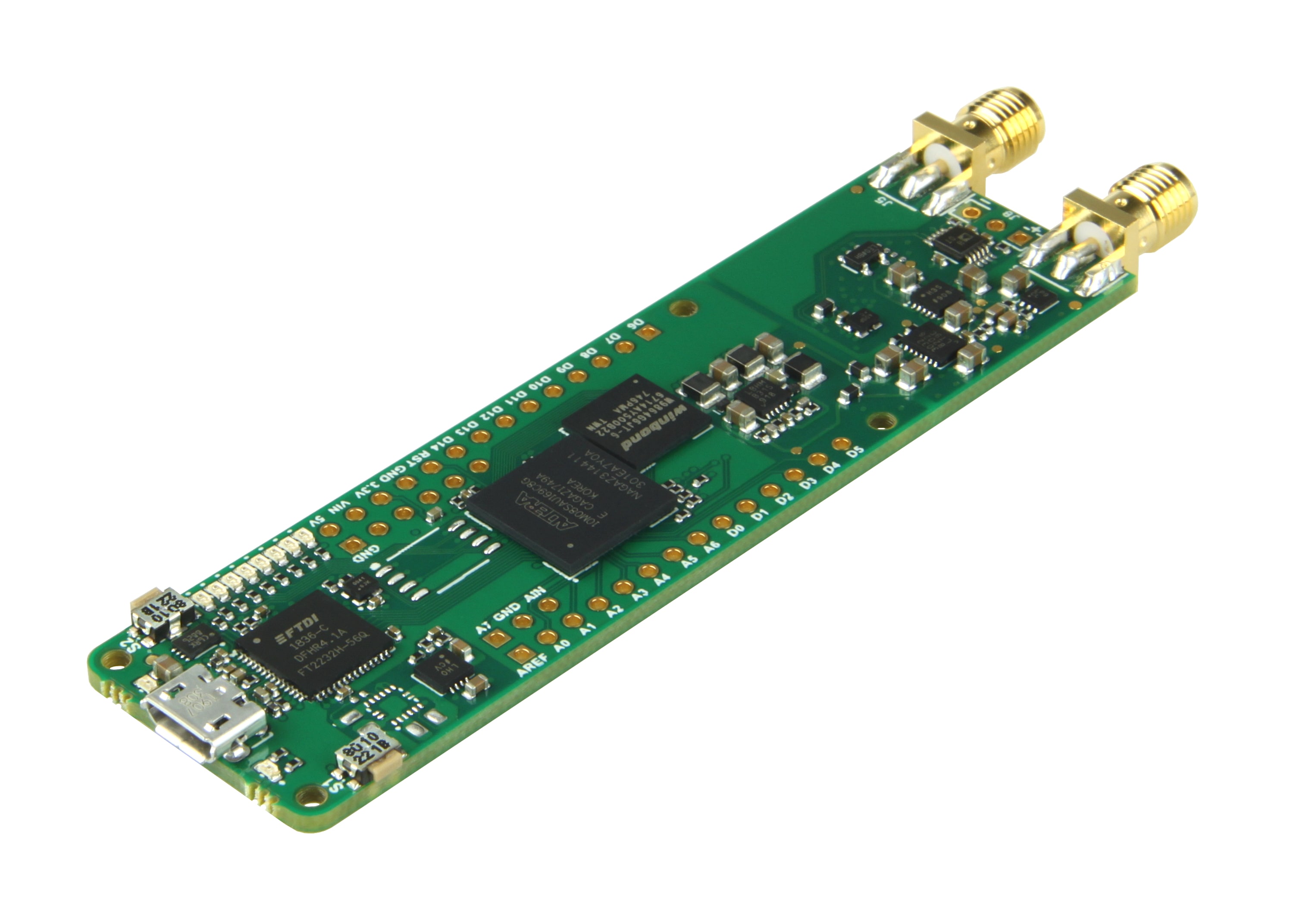

产品图片
SMA Connector, J5...6
Amplifier, U12 - U14 - U6
Series Voltage Reference, U8
Analog to Digital Converter, U15
Voltage Regulator, U10 - U13 - U16
Switching Voltage Regulator, U11 - U4
SDRAM Memory, U2
Intel® MAX 10, U1
SPI Flash Memory, U5
12.00 MHz MEMS oscillator, U7
FTDI USB2 to JTAG/UART adapter, U3
User LEDs, D2...9
FTDI configuration EEPROM, U9
Configuration/Status LED (Red) , D10
Power-on LED (Green), D1
Push button, S1...2
Micro USB Connector, J9
1x14 pin header, J2 (Not assembled)
1x6 pin header, J4 (Not assembled)
1x4 Header, J3 (Not assembled)
1x14 pin header, J1 (Not assembled)
TEI0016 - AnalogMAX DAQ2
2.5 x 8.65 cm FPGA module with Intel MAX10 FPGA and 16-Bit, 500 kSPS ADC
AnalogMAX variant with ADAQ7980 (16-bit, 1 MSPS uModule Data Acquisition System
简介
AnalogMAX-DAQ2 is a high-accuracy data acquisition platform that meets footprint, power, and reliability requirements of measurement instruments in industrial, medical, and scientific applications. The data acquisition platform is based on the high-impedance, programmable ADC driver stage using AD8251 driving the ADAQ7988, a 16-bit μModule® that integrates several signal chain components into a tiny LGA 4 mm x 5 mm package. This platform is ideal for small form factor systems that require accurate and reliable operation over long periods of time. The non-volatile low-cost Intel® MAX® 10 FPGA offers 8K Logic Elements (LEs) and a flexible environment to customize designs for a variety of use cases.
特性
- Intel® MAX 10 Commercial [10M08SAU169C8G]
- Package: UBGA-169
- Speed Grade: C8 (Slowest)
- Temperature: 0°C to 85°C
- Package compatible device 10M02...10M16 as assembly variant on request possible
- SDRAM Memory up to 64Mb, 166MHz
- Dual High-Speed USB to Multipurpose UART/FIFO IC
- 64 Mb Quad SPI Flash
- 4Kb EEPROM Memory
- 8x User LED
- Micro USB2 Receptacle 90
- 16 Bit Analog to Digital Converter with 1 MSPS or 500 kSPS
- 2x SMA Female Connector
- I/O interface: 23x GPIO
- Power Supply:
- 5V
- Minimum 1A
- Dimension: 25mm x 86.5mm
- Others:
- Instrumentation Amplifier
- Differential Amplifier
- Operational Amplifier
优势
- Simplifies analog signal chain design: The level of integration in ADAQ7980/ADAQ7988 simplifies the development of high-accuracy data acquisition systems
- Flexible platform: Based on the programmable Intel® MAX® 10 FPGA, easily adjusts to a wide range of use cases and production needs
- Rapid prototyping and product development:Rapid development and testing with an out-of-the-box experience that includes a Jupyter notebook demo with Python code
- Quick customization services: Add new functionality, lower BOM cost, or have the complete product designed
应用
- System management
- I/O expansion
- Communication control planes
- Industrial
- Automotive
- Consumer applications
器件
- Intel MAX 10 FPGA(part #:10M08SAU169C8G): Non-volatile low cost FPGAs
- ADAQ7980/ ADAQ7988: 16-bit, 1MSPS/500kSPS, μModule® Data Acquisition System
- AD8251: 10 MHz, G = 1, 2, 4, 8 iCMOS® Programmable Gain Instrumentation Amplifier
- ADR4550: Ultra-Low-Noise, High-Accuracy 5.0 V Voltage Reference
- LT8607: 42 V, 750 mA Synchronous Step-Down Regulator with 2.5 μA Quiescent Current
- LT3471: Dual 1.3 A, 1.2 MHz Boost/ Inverter in 3 mm × 3 mm DFN
TEI0023 - AnalogMAX DAQ3
2.5 x 8.65 cm FPGA module with Intel MAX10 FPGA and 18-Bit, 2 MSPS ADC
AnalogMAX variant with ADAQ4020 (20-Bit, 1.8 MSPS uModule Data Acquisition Solution)

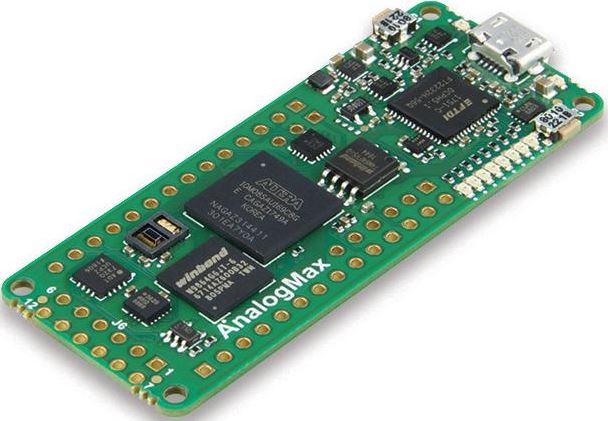

ANALOGMAX-01
Full-featured Programmable Sensor Fusion Development Platform
简介
Part of the AnalogMAX series of boards, the AnalogMAX-01 platform is a full-featured sensor fusion FPGA board featuring Analog Devices’ ADPD188BI integrated optical module for smoke and aerosol detection , a 3-axis micropower ADXL362 MEMS accelerometer, a ±0.25 °C accurate, 16-bit digital SPI temperature sensor (ADT7320) and the Intel® MAX® 10 FPGA. The ADPD188BI is a complete photometric system for smoke detection using optical dual-wavelength technology. The module integrates a highly efficient photometric front end, two Light Emitting Diodes (LEDs), and two PhotoDiodes (PDs). AnalogMAX-01 also features a fully calibrated, single-chip temperature sensor (0.25 °C, 16-bit), MEMS accelerometer (3-axis), and an 8 channel, 12-bit, configurable ADC/DAC/GPIO with on-chip reference.

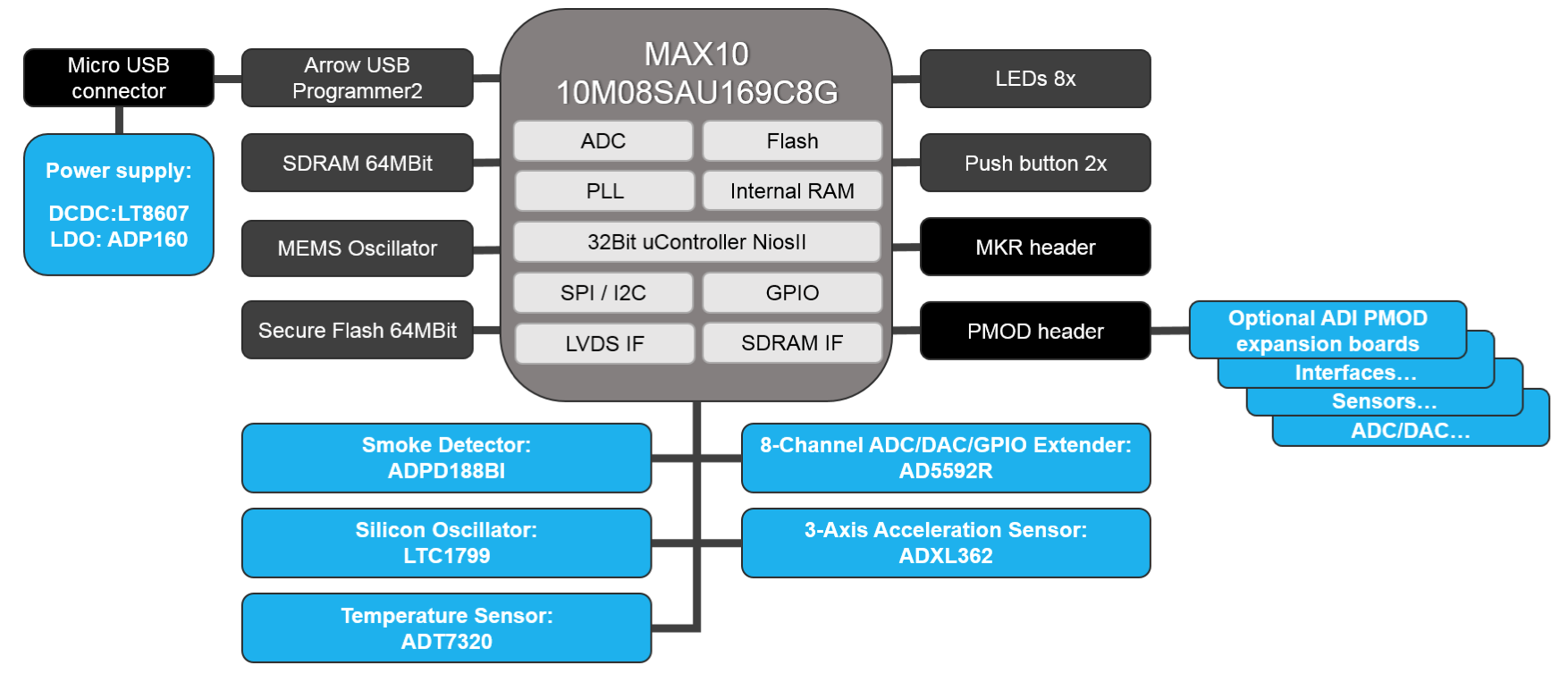

框图
特性
• Intel MAX 10 10M08 FPGA SoC
• 8 MByte SDRAM
• 8 MByte QSPI Flash memory
• Onboard oscillator with 3 selectable frequencies
• Analog Devices ADXL362 MEMS 3-axis accelerometer
• Analog Devices ADT7320 temperature sensor
• Analog Devices ADPD188BI smoke detector
• Analog Devices AD5592R ADC/DAC
• JTAG and UART over Micro USB2 connector
• 1x6 pin header for JTAG access to FPGA SoC
• 1x PMOD header providing 8 I/O
• 2x 14-pin headers (2,54 mm pitch) providing I/O with 7 analog inputs as alternative function
• 1x 3-pin header providing 2 analog inputs or 1 digital I/O
• 8x user LEDs
• 1x user push button
• 5.0V single power supply with on-board voltage regulators
• Size: 61.5 x 25 mm
优势
• Small form-factor, low power sensor, expandable broad: Can be used to collect a wide range of sensor data that can be combined to create higher value data.
• Flexible platform: Based on the programmable Intel® MAX® 10 FPGA, easily adjusts to a wide range of use cases and production needs.
• Rapid prototyping and product development: Rapid development and testing with an out-of-the-box experience that includes the Jupyter notebook with Python code.
• Quick customization services: Add new functionality, lower BOM cost, or have the complete product designed.
应用
• Building automation
• Environmental monitoring
• Smoke Detection
器件
• ADPD188BI: integrated optical module for smoke and aerosol detection
• ADXL362: Micropower, 3-axis, ±2 g/±4 g/±8 g digital output MEMS accelerometer
• ADT7320: ±0.25 °C accurate, 16-bit digital SPI temperature sensor
• AD5592R: 8 Channel, 12-bit, Configurable ADC/DAC with on-chip reference, SPI interface
• Intel® MAX® 10 FPGA: with 8K LEs in the UBGA-169 package
